Installation

VARIABLE GEAR RATIO STEERING: STEERING CONTROL ECU: INSTALLATION

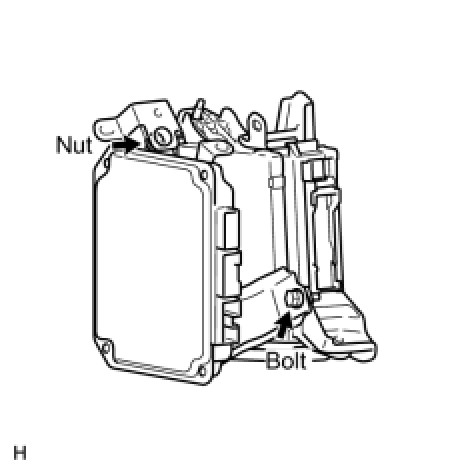

1. INSTALL STEERING CONTROL ECU





(a) Install the ECU to the junction block with the bolt and nut.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

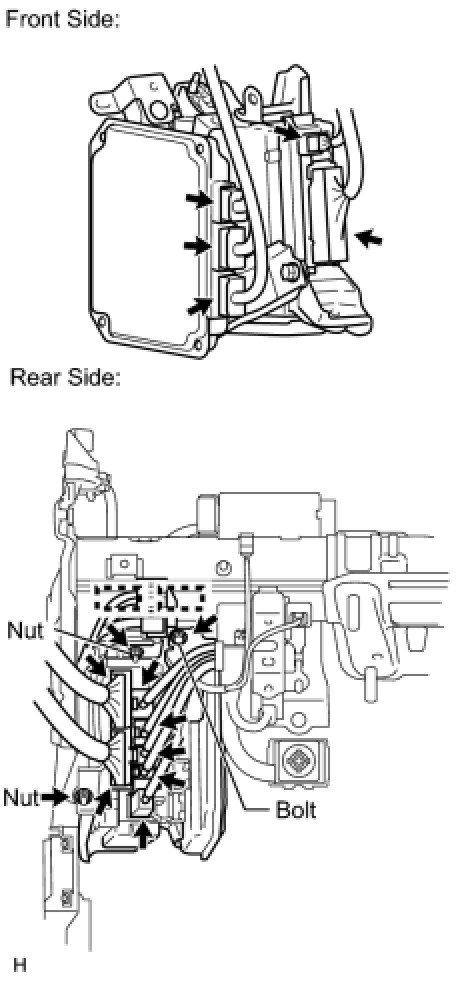

2. INSTALL STEERING CONTROL ECU WITH JUNCTION BLOCK





(a) Front side:

(1) Connect the 5 connectors.

(b) Rear side:

(1) Install the ECU with junction block with the bolt and 2 nuts.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(2) Attach the 2 clamps.

(3) Connect the 7 connectors.

3. INSTALL INSTRUMENT PANEL BOX ASSEMBLY Installation

4. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

5. INSTALL NO. 1 SWITCH HOLE BASE Installation

6. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

7. INSTALL COWL SIDE TRIM BOARD LH Installation

8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

9. INSTALL FRONT DOOR SCUFF PLATE LH Installation

10. INSTALL INSTRUMENT SIDE PANEL LH Installation

11. INSTALL INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH Installation

12. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

14. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
