LIN Communication System

NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

1. DOOR BUS LINES





2. CERTIFICATION BUS LINES





3. AIR CONDITIONING BUS LINES (w/o Navigation System)





4. LIGHTING BUS LINES





5. WINDSHIELD WIPER BUS LINES









SYSTEM DESCRIPTION

1. LIN COMMUNICATION SYSTEM DESCRIPTION

The LIN communication system is used for communication between the components in the tables below. If communication cannot be performed through LIN communication because of an open in the communication lines or other reason, the master control ECU of the relevant system will output a DTC. Refer to the table below about the communication bus lines and connected components.

HINT
* Each component has a fail-safe function which activates to maintain the minimum performance of the system and protect the system.
* In the following table "o" indicates that the function applies, and "-" indicates that it does not.

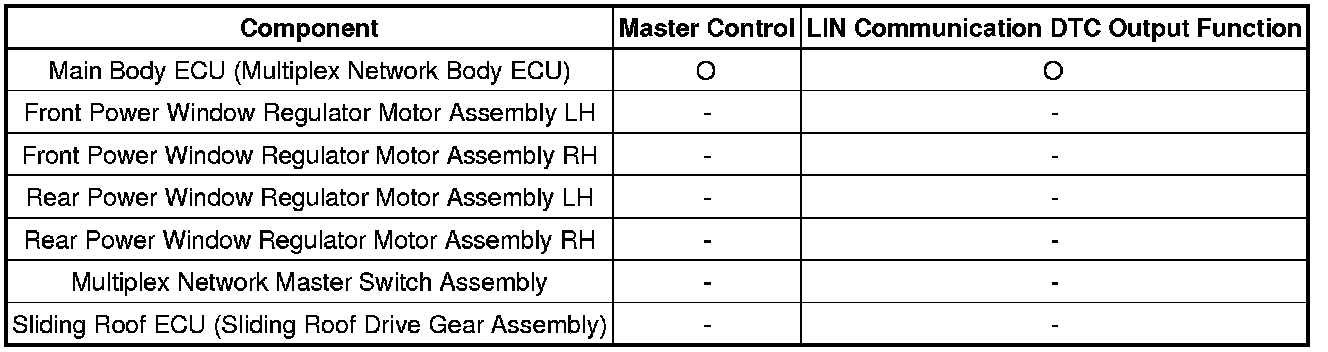

Door Bus Lines

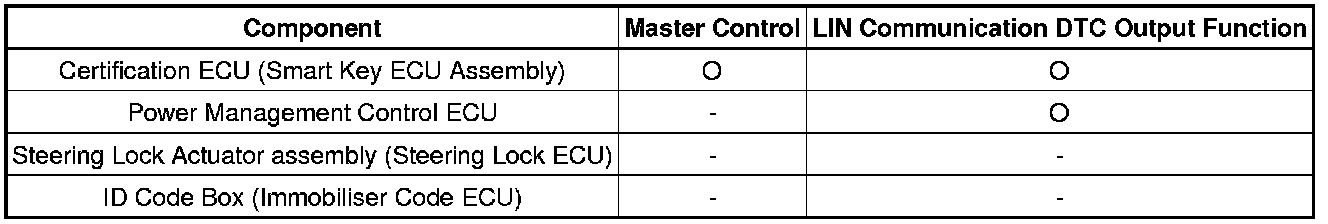

Certification Bus Lines

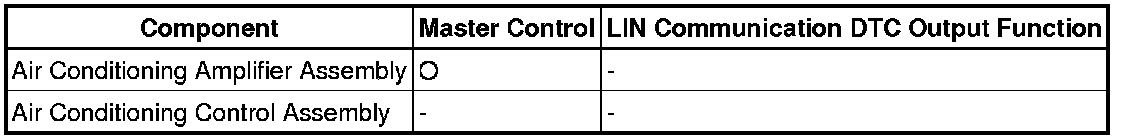

Air Conditioning Bus Lines





Lighting Bus Lines

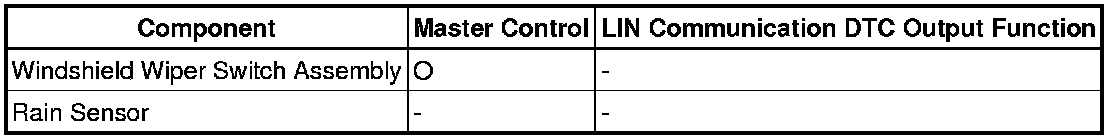

Windshield Wiper Bus Lines
