Cylinder Head Assembly

Cylinder Head

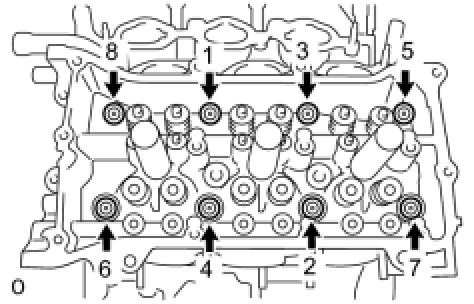

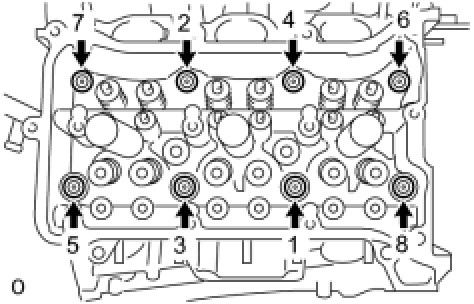

Step 1 36 Nm (367 kgf-cm, 27 ft-lbf)
Step 2 another 90°
Step 3 additional 90°

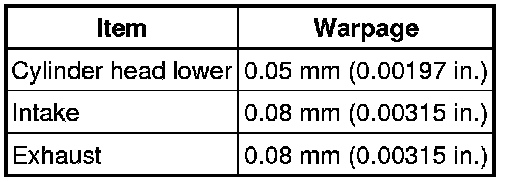

Standard Warpage





Maximum Warpage





Cylinder head bolt

Standard diameter 10.85 to 11.00 mm (0.4272 to 0.4330 in.)
Minimum diameter 10.70 mm (0.4212 in.)

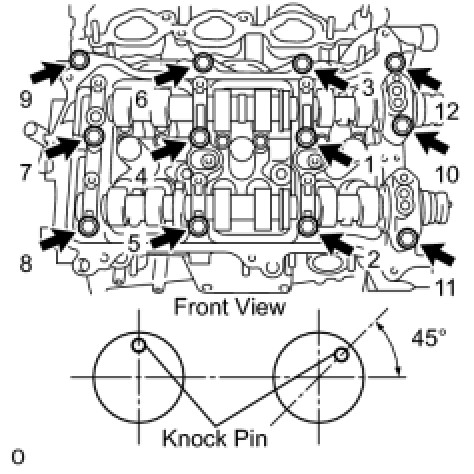

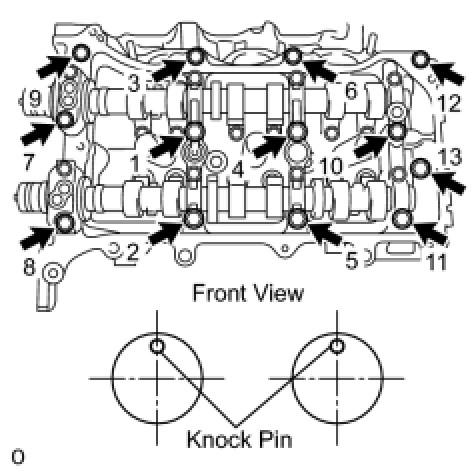

Camshaft cap

1st 10 Nm (102 kgf-cm, 7 ft lb)
2nd 16 Nm (163 kgf-cm, 12 ft-lbf)

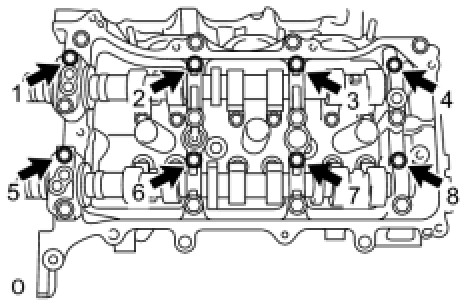

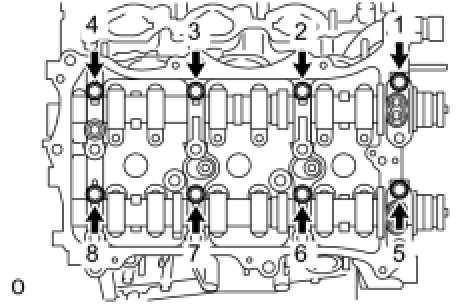

Camshaft Housing 28 Nm (286 kgf-cm, 21 ft-lbf)

LH:

RH:

Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Gear Specifications
