THEFT DETERRENT / KEYLESS ENTRY: SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function): B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit
B27A8 - Open in Outside Luggage Compartment Electrical Key Antenna Circuit

DESCRIPTION

The certification ECU (smart key ECU assembly) generates a request signal and sends it to the outside electrical key oscillator (for rear side). To detect the key near the driver door, the outside electrical key oscillator (for rear side) creates a detection area towards the area approximately 1.0 m (3.28 ft.) from the back door.

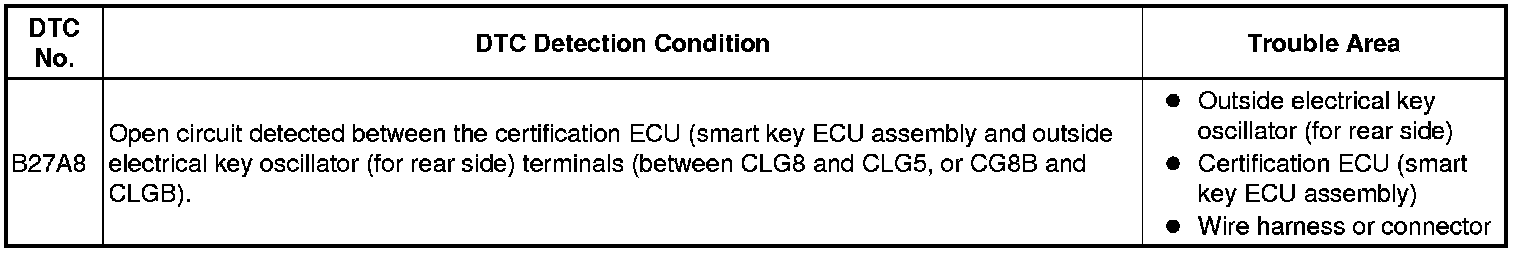

DTC B27A8 is detected by the certification ECU (smart key ECU assembly) when an open circuit occurs between the certification ECU (smart key ECU assembly) and outside electrical key oscillator (for rear side) terminals (between CLG8 and CLG5, or CG8B and CLGB).





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
The smart access system with push-button start (for entry function) uses a multiplex communication system (LIN communication system) and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting How To Proceed With Troubleshooting. Troubleshoot the smart access system with push-button start (for entry function) after confirming that the communication system is functioning properly.

PROCEDURE

1. CHECK CONNECTOR CONNECTION CONDITION

(a) Turn the power switch off.

(b) Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and the outside electrical key oscillator (for rear side).

OK:

Connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - OUTSIDE ELECTRICAL KEY OSCILLATOR)

(a) Disconnect the certification ECU (smart key ECU assembly) connector.

(b) Disconnect the outside electrical key oscillator (for rear side) connector.





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT OUTSIDE ELECTRICAL KEY OSCILLATOR

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPLACE OUTSIDE ELECTRICAL KEY OSCILLATOR Removal
OK -- Continue to next step.

4. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Replace the certification ECU (smart key ECU assembly) Removal.

NEXT -- Continue to next step.

5. CHECK DTC OUTPUT

(a) Clear the DTCs Smart Access System With Push-Button Start (for Entry Function).

(b) Recheck for DTCs.

OK:

DTC B27A8 is not output.

NG -- REPLACE OUTSIDE ELECTRICAL KEY OSCILLATOR Removal

OK -- END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)
