Dynamic Radar Cruise Control System

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: C1A10: Front Radar Sensor
C1A10 - Front Radar Sensor

DESCRIPTION

When the driving support ECU receives information that there is a malfunction in the millimeter wave radar sensor assembly, DTC C1A10 is stored.





INSPECTION PROCEDURE

NOTICE:
When the front millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed Adjustments.

PROCEDURE

1. REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Replace the millimeter wave radar sensor assembly Removal.

NEXT -- Continue to next step.

2. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Adjust the millimeter wave radar sensor assembly Adjustments.

NEXT -- Continue to next step.

3. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Clear the DTCs Dynamic Radar Cruise Control System.

(d) Perform the following to make sure that the DTC detection conditions are met.

HINT
If the detection conditions are not met, the malfunction cannot be detected.

(1) Drive the vehicle at a speed of 40 km/h (25 mph) or more.

(2) Turn the cruise control main switch on.

(3) Push the -SET switch to activate the cruise control.

(e) Enter the following menus: Powertrain / Radar Cruise / Trouble Codes.

(f) Read the DTCs.

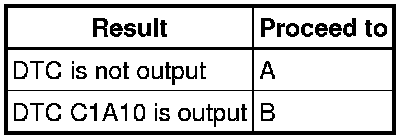

Result:





B -- REPLACE DRIVING SUPPORT ECU Removal

A -- END
