BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1259/58,C1310/51: HV System Regenerative Malfunction

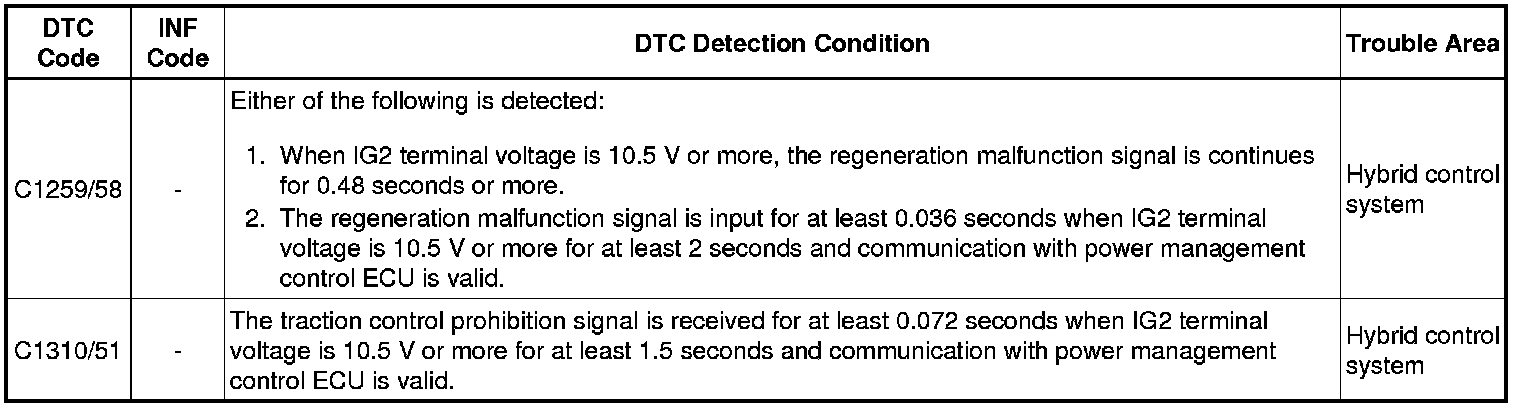

C1310/51 - Malfunction in HV system

DESCRIPTION

The skid control ECU communicates with the power management control ECU and controls braking force according to the motor's regenerative force.

The skid control ECU sends Enhanced-VSC signals to the power management control ECU and inputs operating signals from the power management control ECU.

The skid control ECU uses CAN communication for communication with the power management control ECU. If a communication malfunction is memorized, the skid control ECU prohibits Enhanced-VSC operation and a part of electronically controlled brake system control by fail-safe function.





HINT
This DTC will be output from the skid control ECU when the power management control ECU sends a malfunction signal to the skid control ECU.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK HYBRID CONTROL SYSTEM

(a) Check if the hybrid control system DTC is output Hybrid Control System.

Result:





B -- INSPECT HYBRID CONTROL SYSTEM How To Proceed With Troubleshooting

A -- REPLACE POWER MANAGEMENT CONTROL ECU Removal
