Part 3
2GR-FXE ENGINE CONTROL: SFI SYSTEM: P0136-P0139,P0156-P0159: Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)
P0159 - Oxygen Sensor Circuit Slow Response (Bank 2 Sensor 2) Continued
7. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve assembly is stuck open.
OK:
EGR valve is tightly closed.
(c) Reinstall the EGR valve assembly Installation.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- CHECK EXTREMELY RICH OR LEAN ACTUAL AIR FUEL RATIO AND REPAIR CAUSE (INJECTOR, FUEL PRESSURE, GAS LEAK, EGR VALVE) P0171
8. CHECK FOR EXHAUST GAS LEAK
(a) Check for exhaust gas leakage.
OK:
No gas leaks.
NG -- REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT
OK -- Continue to next step.
9. INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)
(a) Inspect the heated oxygen sensor Heated Oxygen Sensor.
NG -- REPLACE HEATED OXYGEN SENSOR Removal
OK -- Continue to next step.
10. CHECK HARNESS AND CONNECTOR (HEATED OXYGEN SENSOR - ECM)
(a) Disconnect the heated oxygen sensor connector.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):
Standard Resistance (Check for Short):
(d) Reconnect the heated oxygen sensor connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (HEATED OXYGEN SENSOR - ECM)
OK -- Continue to next step.
11. REPLACE HEATED OXYGEN SENSOR
(a) Replace the heated oxygen sensor Removal.
NEXT -- Continue to next step.
12. PERFORM CONFIRMATION DRIVING PATTERN
(a) Perform Confirmation Driving Pattern (P0136, P0137, P0138, P0156, P0157 and P0158).
NEXT -- Continue to next step.
13. CHECK WHETHER DTC OUTPUT RECURS (DTC P0136, P0137, P0138, P0156, P0157 OR P0158)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
(e) Input DTC: P0136, P0137, P0138, P0156, P0157 or P0158.
(f) Check that the DTC monitor is NORMAL. If DTC monitor is INCOMPLETE, perform again but increase the vehicle speed.
Result:
B -- END
A -- Continue to next step.
14. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Put the engine in inspection mode Component Tests and General Diagnostics.
(e) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more.
HINT
The A/C switch and all accessory switches should be off.
(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
(g) Confirm the Throttle Idle Position is ON and check the engine idling condition and MAP values in the Data List while performing the Active Test.
HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when Active Test is completed.
OK:
MAP and idling condition change in response to EGR step position as follows.
Standard:
HINT
During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in EGR valve.
Result:
B -- REPLACE ECM Removal
A -- Continue to next step.
15. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve assembly is stuck open.
OK:
EGR valve is tightly closed.
(c) Reinstall the EGR valve assembly Installation.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- REPLACE AIR FUEL RATIO SENSOR Removal
16. REPLACE AIR FUEL RATIO SENSOR
(a) Replace the air fuel ratio sensor Removal.
NEXT -- Continue to next step.
17. PERFORM CONFIRMATION DRIVING PATTERN
(a) Perform Confirmation Driving Pattern (P0136, P0137, P0138, P0156, P0157 and P0158).
NEXT -- Continue to next step.
18. CHECK WHETHER DTC OUTPUT RECURS (DTC P0136, P0137, P0138, P0156, P0157 OR P0158)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
(e) Input the DTC: P0136, P0137, P0138, P0156, P0157 or P0158.
(f) Check that the DTC monitor is NORMAL. If the DTC monitor is INCOMPLETE, perform the drive pattern again but increase the vehicle speed.
Result:
B -- END
A -- Continue to next step.
19. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Put the engine in inspection mode Component Tests and General Diagnostics.
(e) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more.
HINT
The A/C switch and all accessory switches should be off.
(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
(g) Confirm the Throttle Idle Position is ON and check the engine idling condition and MAP values in the Data List while performing the Active Test.
HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when Active Test is completed.
OK:
MAP and idling condition change in response to EGR step position as follows.
Standard:
HINT
During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in EGR valve.
Result:
B -- REPLACE ECM Removal
A -- Continue to next step.
20. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve assembly is stuck open.
OK:
EGR valve is tightly closed.
(c) Reinstall the EGR valve assembly Installation.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- REPLACE HEATED OXYGEN SENSOR Removal
21. CHECK FOR EXHAUST GAS LEAK
(a) Check for exhaust gas leak.
OK:
No gas leakage.
NG -- REPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT
OK -- Continue to next step.
22. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT)
(a) Turn the power switch off and wait for 5 minutes.
(b) Disconnect the ECM connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Short):
(d) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
23. PERFORM CONFIRMATION DRIVING PATTERN
(a) Perform Confirmation Driving Pattern (P0139 and P0159).
NEXT -- Continue to next step.
24. READ DTC OUTPUT (P0139 OR P0159 IS OUTPUT AGAIN)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
(e) Read the pending DTCs Reading and Clearing Diagnostic Trouble Codes.

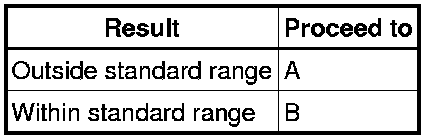

Result
B -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems
A -- Continue to next step.
25. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the Techstream on.
(d) Put the engine in inspection mode Component Tests and General Diagnostics.
(e) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or more.
HINT
The A/C switch and all accessory switches should be off.
(f) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position.
(g) Confirm the Throttle Idle Position is ON and check the engine idling condition and MAP values in the Data List while performing the Active Test.
HINT
- Do not leave the EGR valve open for 10 seconds or more during the Active Test.
- Be sure to return the EGR valve to step 0 when Active Test is completed.
OK:
MAP and idling condition change in response to EGR step position as follows.
Standard:
HINT
During Active Test, if the idling condition does not change in response to EGR step position, then there is probably a malfunction in EGR valve.
Result:
NG -- INSPECT EGR VALVE ASSEMBLY
OK -- REPLACE HEATED OXYGEN SENSOR Removal
26. INSPECT EGR VALVE ASSEMBLY
(a) Remove the EGR valve assembly Removal.
(b) Check if the EGR valve assembly is stuck open.
OK:
EGR valve is tightly closed.
(c) Reinstall the EGR valve assembly Installation.
NG -- REPLACE EGR VALVE ASSEMBLY Removal
OK -- REPLACE HEATED OXYGEN SENSOR Removal
