Installation

NAVIGATION: NAVIGATION ECU: INSTALLATION

1. INSTALL NAVIGATION MODULE BOARD

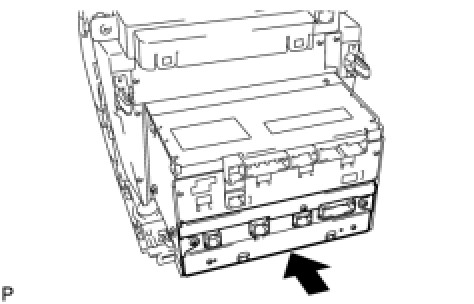

(a) Install the navigation module board as shown in the illustration.

(b) Install the 2 screws.

(d) Connect each connector.

2. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY ASSEMBLY

(a) Engage the 2 claws and 4 clips and install the display and navigation module display assembly.

3. INSTALL NO. 2 RADIO BRACKET Installation

4. INSTALL NO. 1 RADIO BRACKET Installation

5. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation

6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

7. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

8. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE Installation

9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

11. INSERT DATA DISC

(a) Turn the engine switch on (ACC).

(b) Insert the data disc.

(c) Engage the 8 claws and install the cover as shown in the illustration.

(d) Turn the engine switch off.

12. ADJUST CLOCK
