Home
>>
Lexus
>>
2012
>>
ES 350 V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Overhaul
>>
Oil Pump
>>
Components
Components

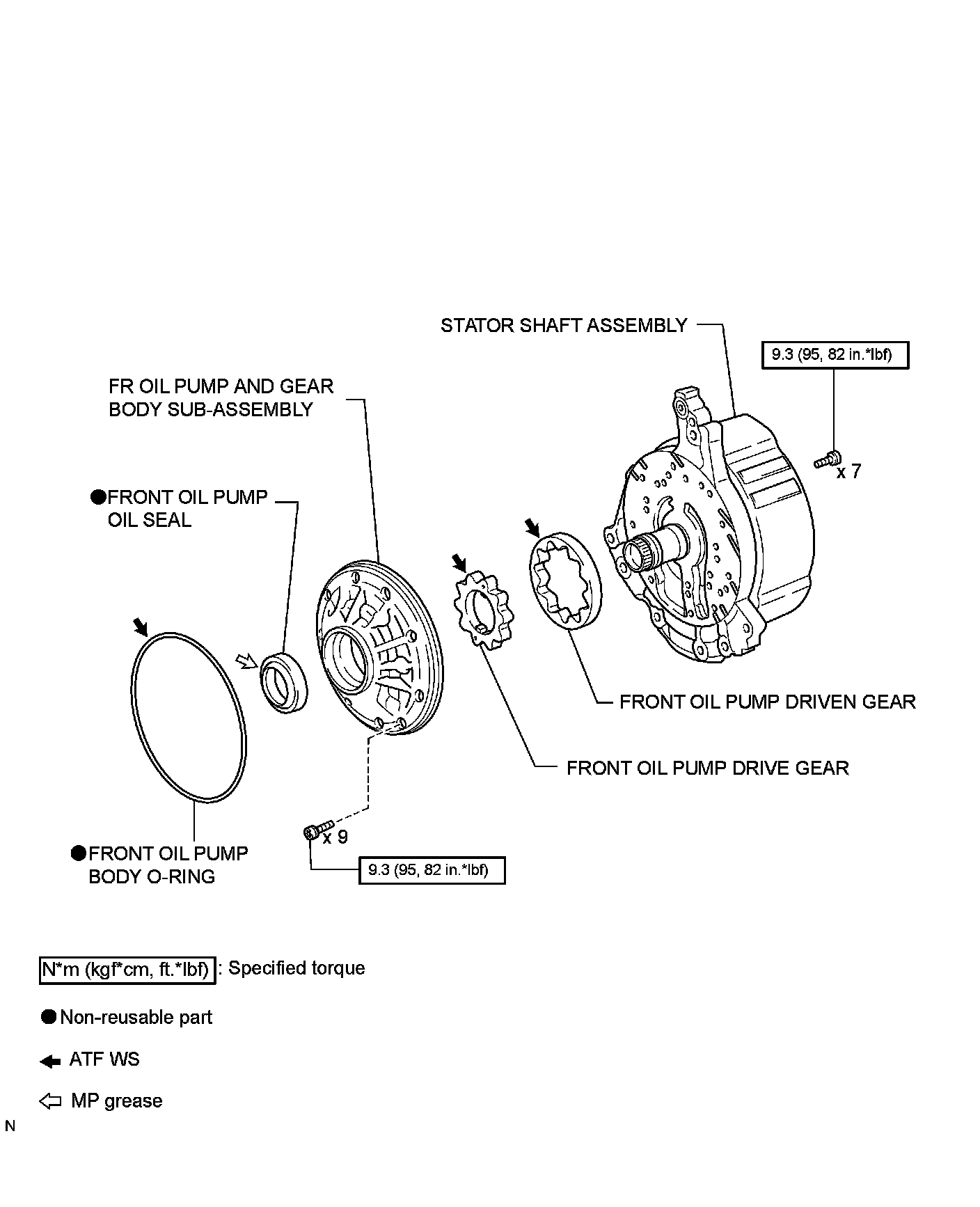

U660E AUTOMATIC TRANSAXLE: OIL PUMP: COMPONENTS
