Removal





WINDOW / GLASS: WINDSHIELD GLASS: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

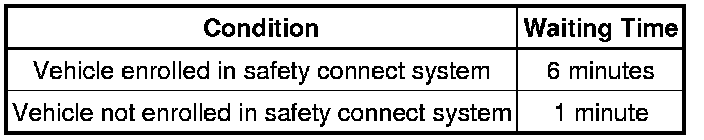

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

3. REMOVE ENGINE ROOM SIDE COVER LH Removal

4. REMOVE ENGINE ROOM COVER SIDE Removal

5. REMOVE FRONT FENDER SIDE PANEL PROTECTOR LH Removal

6. REMOVE FRONT FENDER SIDE PANEL PROTECTOR RH Removal

7. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal

8. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal

9. REMOVE FRONT WIPER ARM HEAD CAP Removal

10. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal

11. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal

12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal

13. REMOVE WINDSHIELD LOWER OUTSIDE MOULDING LH

(a) Remove the windshield outside moulding.





(1) Put protective tape around the moulding.

(2) Using a moulding remover, detach the 6 clips and remove the moulding.

NOTICE:
* When removing the windshield outside moulding, be careful not to damage the roof drip side finish moulding clip.
* If a roof drip side finish moulding clip is damaged or becomes detached from the vehicle, replace it with a new one.

14. REMOVE WINDSHIELD LOWER OUTSIDE MOULDING RH

HINT
Use the same procedure described for the LH side.

15. REMOVE NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP





(a) Remove the 5 No. 1 windshield moulding clips.

HINT
Use the same procedure to remove the 5 clips on the other side.

16. REMOVE NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP

HINT
Perform the following procedures if replacing any No. 3 windshield outside moulding clips.

(a) Put a 5 mm (0.157 in.) drill bit into a drill.

(b) Wind tape around the drill bit approximately 5 mm (0.197 in.) from the tip of the drill.

HINT
Tape the 5 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.

(c) Lightly press the drill against the No. 3 windshield outside moulding clips, drill off the flanges of the No. 3 windshield outside moulding clips, and remove them.





NOTICE:
* Pressing the drill too firmly will cause the No. 3 windshield outside moulding clip to turn and result in the No. 3 windshield outside moulding clip not being drilled through.
* Do not pry the No. 3 windshield outside moulding clips with the drill because this may cause damage to the installation holes of the No. 3 windshield outside moulding clips or the drill bit.

CAUTION:
Be careful of the drilled No. 3 windshield outside moulding clips as they may become hot.

(d) Using a vacuum cleaner, remove the No. 3 windshield outside moulding clip fragments and shavings from the drilled areas.

HINT
Use the same procedure to remove clips on the other side.

17. REMOVE DOOR SCUFF PLATE ASSEMBLY LH Removal

18. REMOVE DOOR SCUFF PLATE ASSEMBLY RH Removal

19. REMOVE COWL SIDE TRIM BOARD LH Removal

20. REMOVE COWL SIDE TRIM BOARD RH Removal

21. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal

22. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal

23. REMOVE FRONT NO. 1 ASSIST GRIP PLUG LH Removal

24. REMOVE FRONT NO. 1 ASSIST GRIP PLUG RH Removal

25. REMOVE NO. 1 ASSIST GRIP Removal

26. REMOVE FRONT PILLAR GARNISH LH Removal

27. REMOVE FRONT PILLAR GARNISH RH Removal

28. REMOVE VISOR BRACKET COVER Removal

29. REMOVE VISOR ASSEMBLY LH Removal

30. REMOVE VISOR ASSEMBLY RH Removal

31. REMOVE VISOR HOLDER Removal

32. REMOVE MAP LIGHT ASSEMBLY Removal

33. REMOVE RAIN SENSOR COVER Removal

34. REMOVE RAIN SENSOR Removal

35. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Automatic High Beam System) Removal

36. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Automatic High Beam System) Removal

37. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/ Automatic High Beam System) Removal

38. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Automatic High Beam System) Removal

39. REMOVE ROOF HEADLINING ASSEMBLY

(a) Partially remove the roof headlining.

HINT
It is not necessary to completely remove the roof headlining. Slightly lower the front section of the roof headlining so that the windshield glass can be removed in a later step.

Refer to the following procedures Removal.

40. REMOVE WINDSHIELD GLASS

NOTICE:

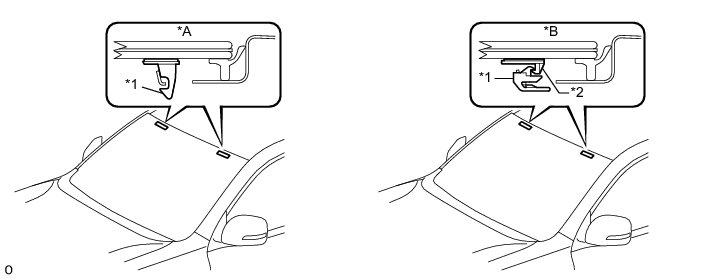

The stoppers are located on the windshield glass sub-assembly as shown in the illustration. Be careful not to damage the windshield glass when removing the stoppers.

HINT
Depending on the vehicle specifications, a 1-piece or 2-piece type stopper is used.





Text in Illustration









(a) Apply protective tape to the outer surface of the vehicle body to prevent scratches.

Text in Illustration

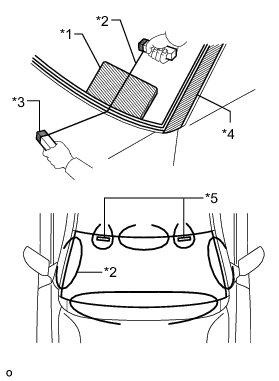

(b) From the interior, insert a piano wire between the vehicle body and glass as shown in the illustration.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

NOTICE:
* When separating the glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.
* To prevent the instrument panel from being scratched when removing the glass, place a plastic sheet between the piano wire and instrument panel.

Text in Illustration









(d) Place matchmarks over the glass and vehicle body at the locations indicated in the illustration.

NOTICE:
Matchmarks do not need to be placed if not reusing the glass.

Text in Illustration





(e) w/ Windshield Deicer System:

Disconnect the windshield deicer connector.

(f) Cut through the adhesive by pulling the piano wire around the glass.

NOTICE:
Leave as much adhesive on the vehicle body as possible when removing the glass.

(g) Disconnect the stoppers.





(h) Using suction cups, remove the glass.

41. REMOVE WINDSHIELD GLASS ADHESIVE DAM

(a) Using a scraper, remove the adhesive dam.

NOTICE:
* Be careful not to damage the windshield glass.
* Be sure to replace the adhesive dam with a new one.

42. REMOVE WINDSHIELD OUTSIDE MOULDING

(a) Using a scraper, remove the moulding.

NOTICE:
* Be careful not to damage the windshield glass.
* Be sure to replace the moulding with a new one.

43. REMOVE NO. 2 WINDSHIELD GLASS STOPPER

(a) Using a scraper, remove the 2 stoppers.

NOTICE:
* Be careful not to damage the windshield glass.
* Be sure to replace the stoppers with new ones.

44. REMOVE NO. 1 WINDSHIELD GLASS STOPPER (for 2-piece Type)





(a) Remove the 2 No. 1 stoppers.

NOTICE:
Be sure to replace the No. 1 stoppers with new ones.

45. CLEAN WINDSHIELD GLASS





(a) Using a scraper, remove the damaged stoppers, dam and adhesive sticking to the glass.

(b) Clean the outer circumference of the glass with non-residue solvent.

NOTICE:
* Do not touch the surface of the glass after cleaning it.
* Be careful not to damage the glass.
* Even if using new glass, clean the glass with non-residue solvent.

46. CLEAN VEHICLE BODY





(a) Clean and shape the contact surface of the vehicle body.

(1) On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.

NOTICE:
Be careful not to damage the vehicle body.

HINT
Leave as much adhesive on the vehicle body as possible.

(b) Clean the contact surface of the vehicle body with cleaner.

HINT
Even if all the adhesive has been removed, clean the vehicle body.

Text in Illustration
