Home >> Lexus >> 2012 >> IS 250 RWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Air Door Actuator / Motor >> Locations

Air Door Actuator / Motor: Locations

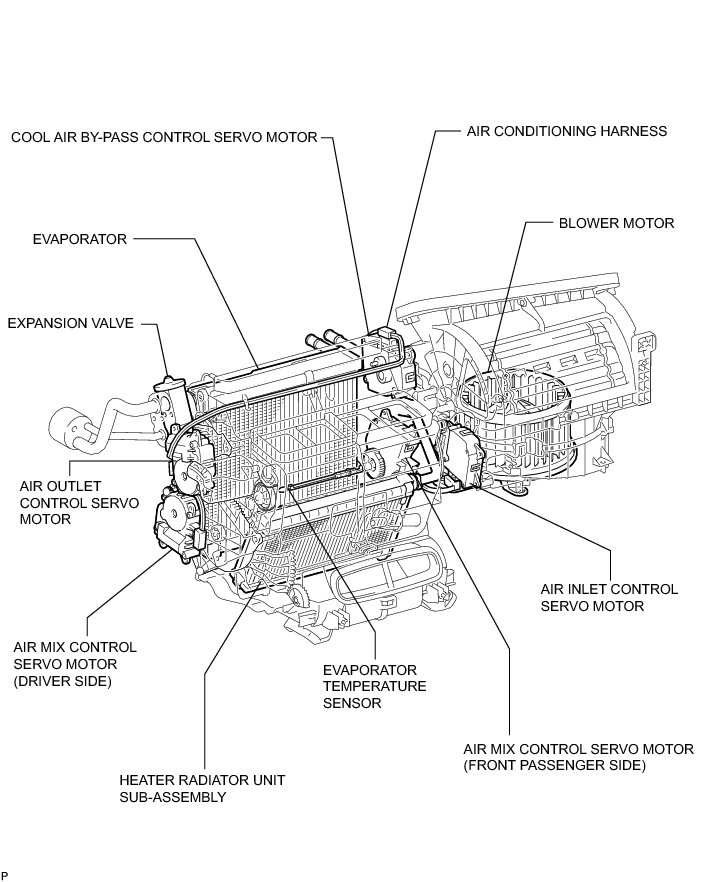

AIR CONDITIONING: AIR CONDITIONING SYSTEM: PARTS LOCATION
