Alignment

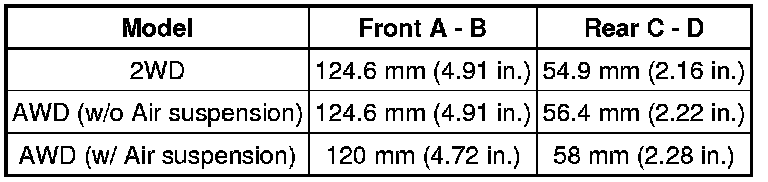

Vehicle Height (Unloaded Vehicle)





Measurement Points





A: Ground clearance of front wheel center
B: Ground clearance of front lower suspension arm bushing set bolt center
C: Ground clearance of rear wheel center
D: Ground clearance of rear No. 2 suspension arm adjust bolt center

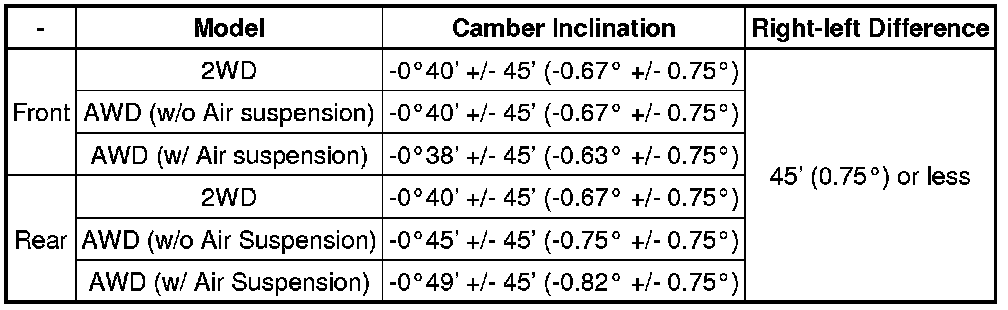

Camber (Unloaded Vehicle)

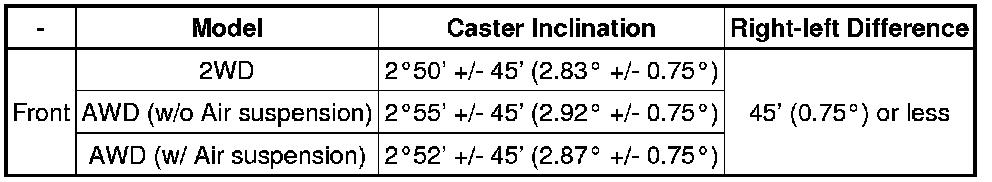

Caster (Unloaded Vehicle)

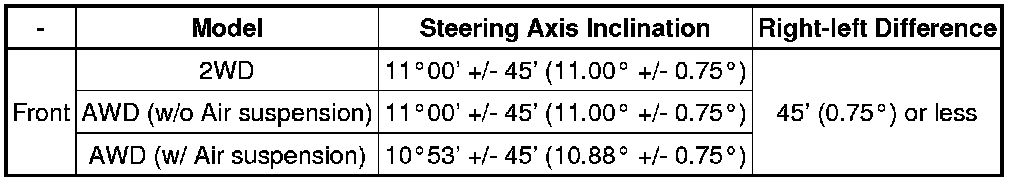

Steering Axis Inclination (Unloaded Vehicle)

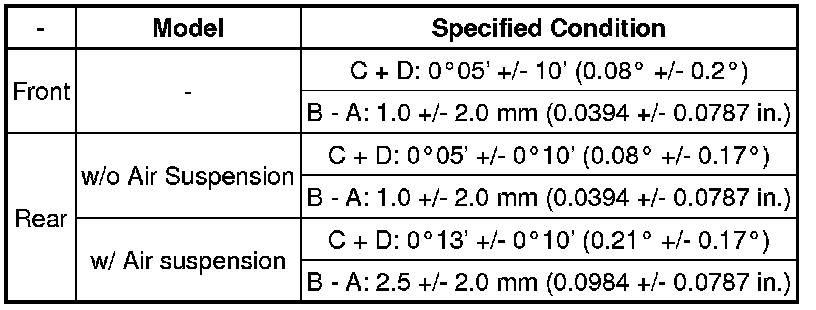

Toe-in (Unloaded Vehicle)

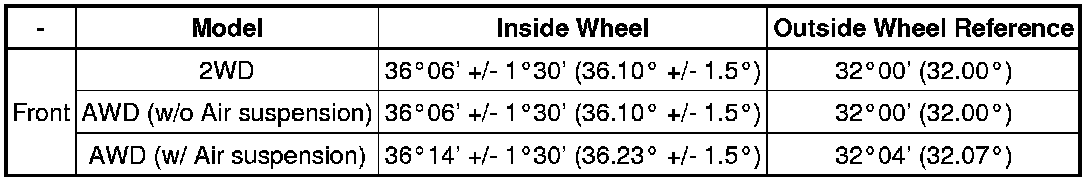

Wheel Turning Angle (Unloaded Vehicle)
