Radiator Support






ASSEMBLY REPLACEMENT

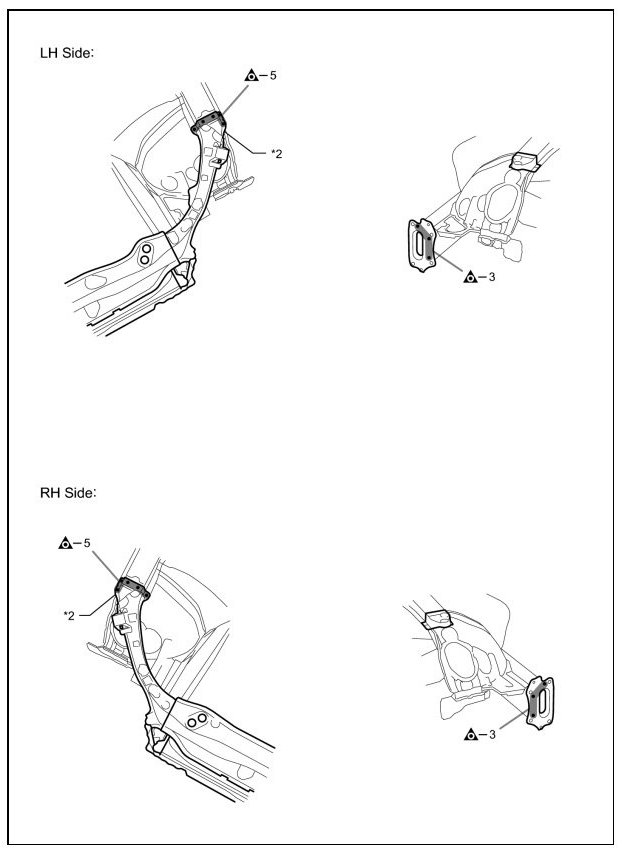

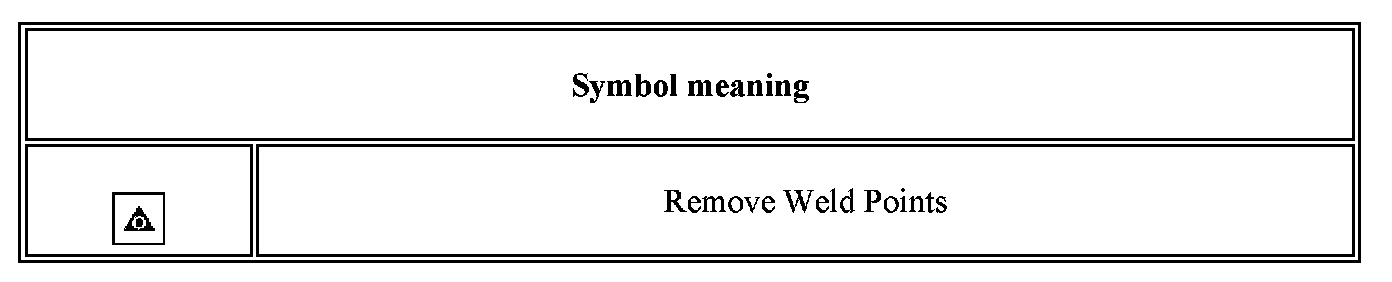

1. REMOVAL







REMOVAL POINT

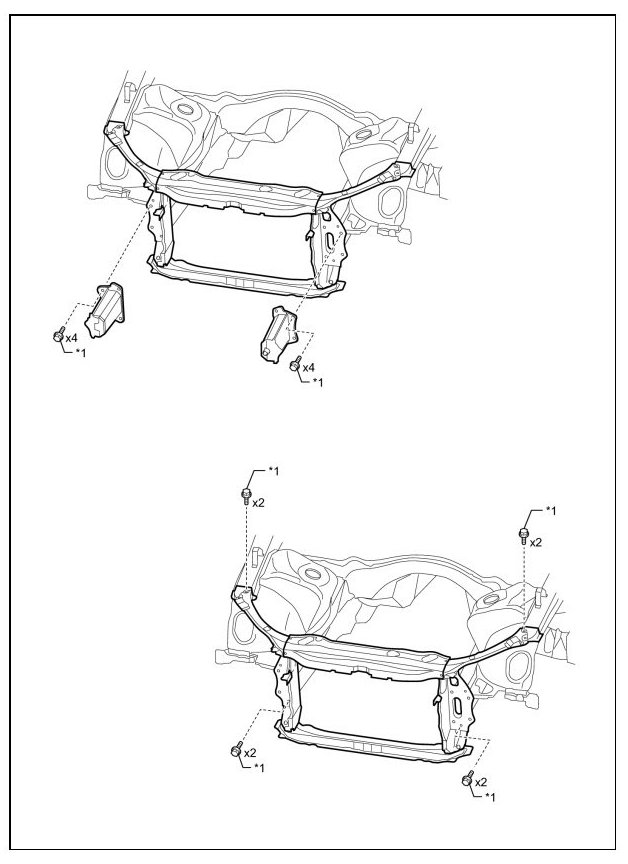

1. *1: Bolts.
2. Perform the replacement with the *2 attached to the vehicle.
3. If the *2 is damaged, replace the *2.

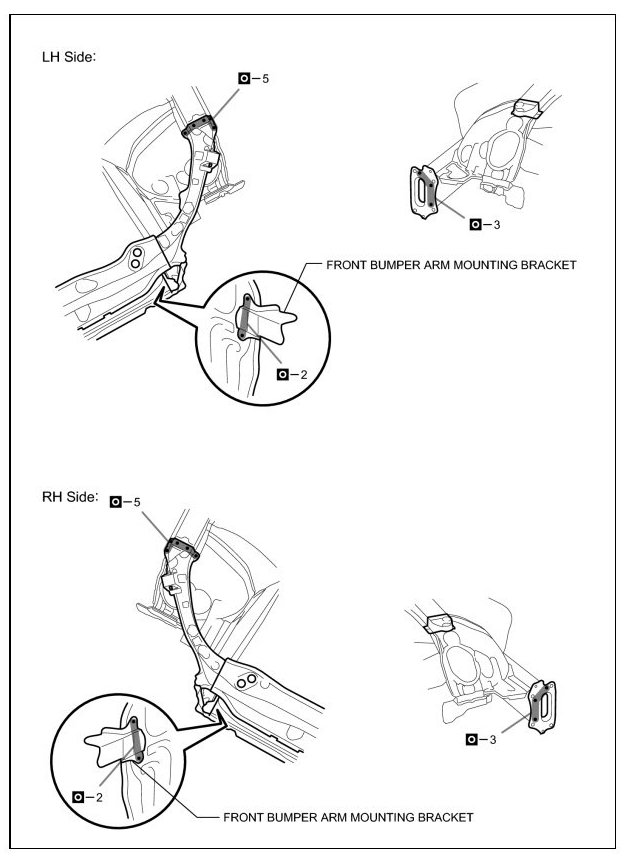

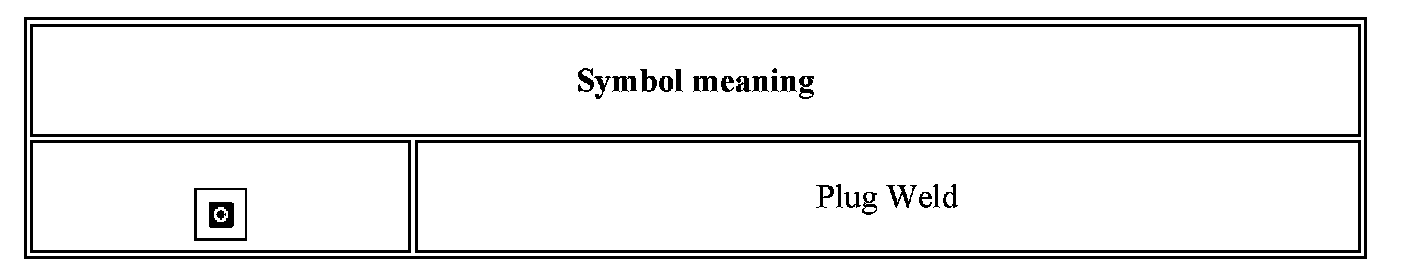

2. INSTALLATION







INSTALLATION POINT

1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

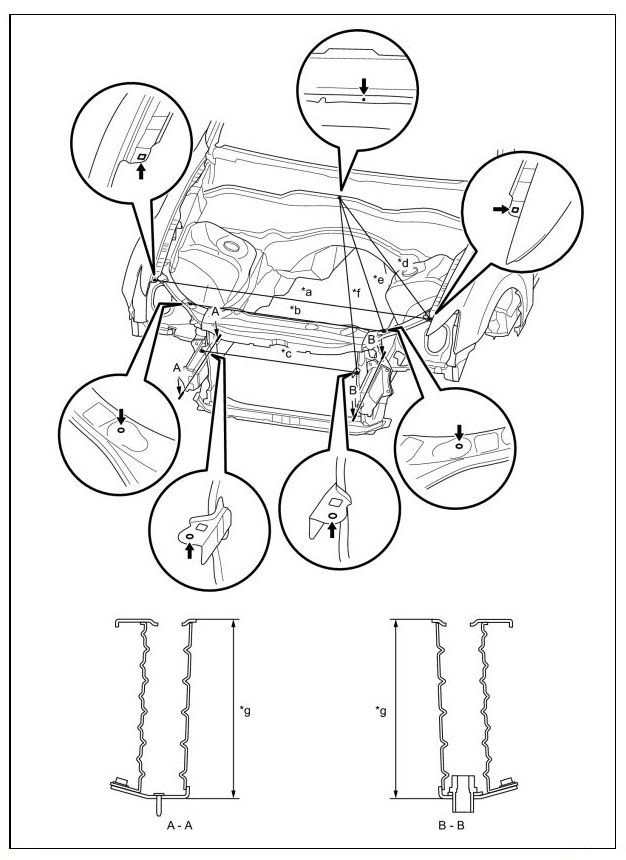

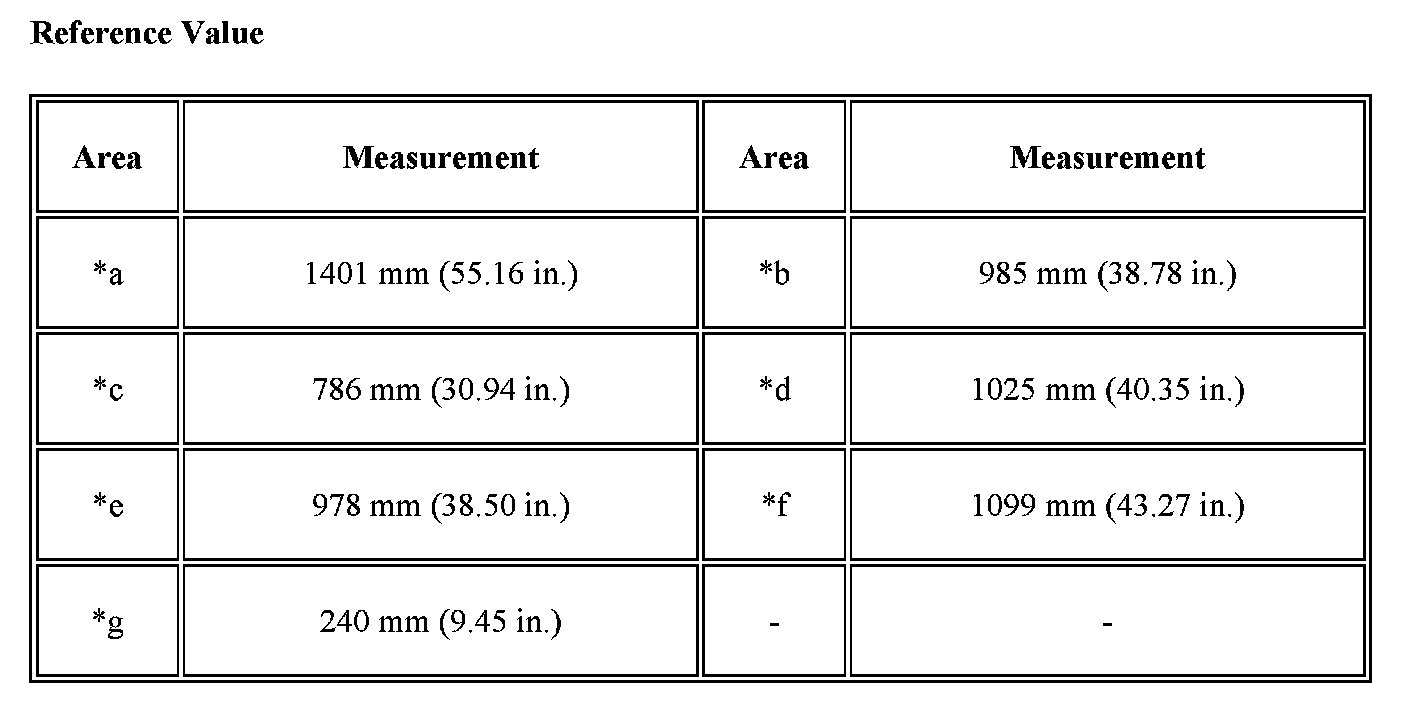

2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

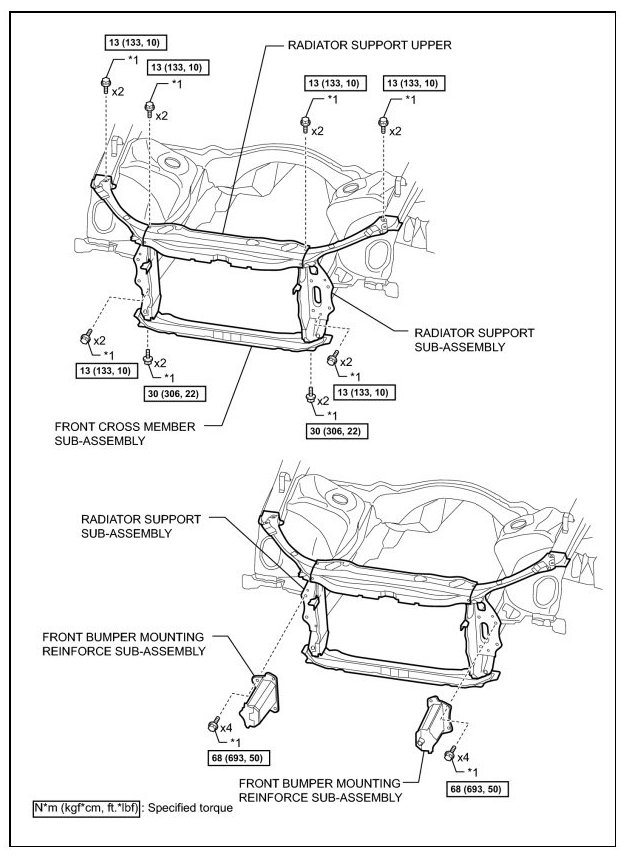

3. *1: Bolts.
4. After removing and installing the millimeter wave radar sensor assembly, perform the necessary adjustments.
5. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
6. Measure the dimensions before installing the headlights.
