Alignment

Wheel Alignment Specifications (Unloaded Vehicle)

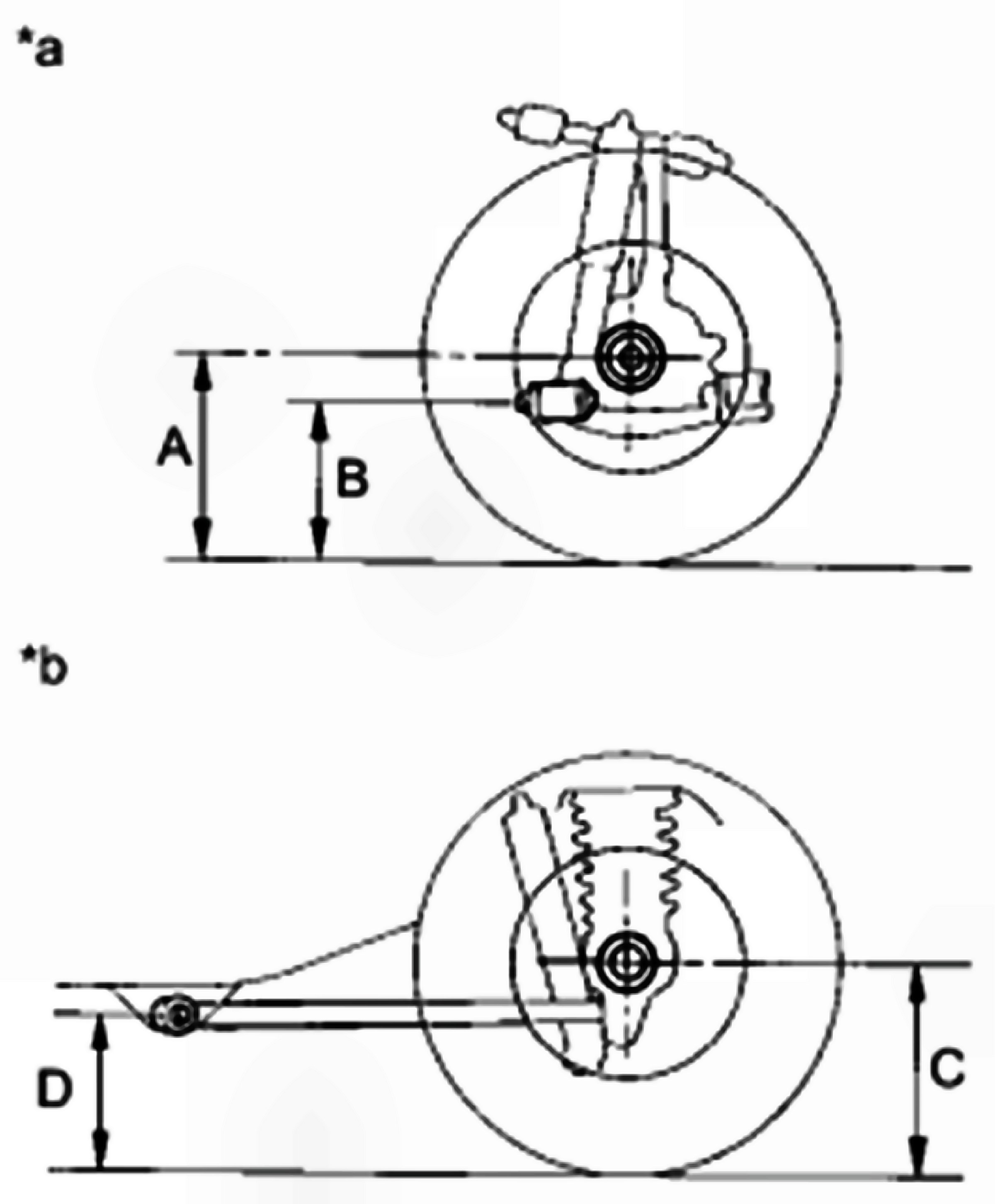

Measuring Points:
A: Ground clearance of the center of the front wheel
B: Ground clearance of the center of the front adjusting cam bolt
C: Ground clearance of the center of the rear wheel
D: Ground clearance of the center of the rear lower control arm front side

If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.

Standard Vehicle Height:

Standard Camber Inclination:

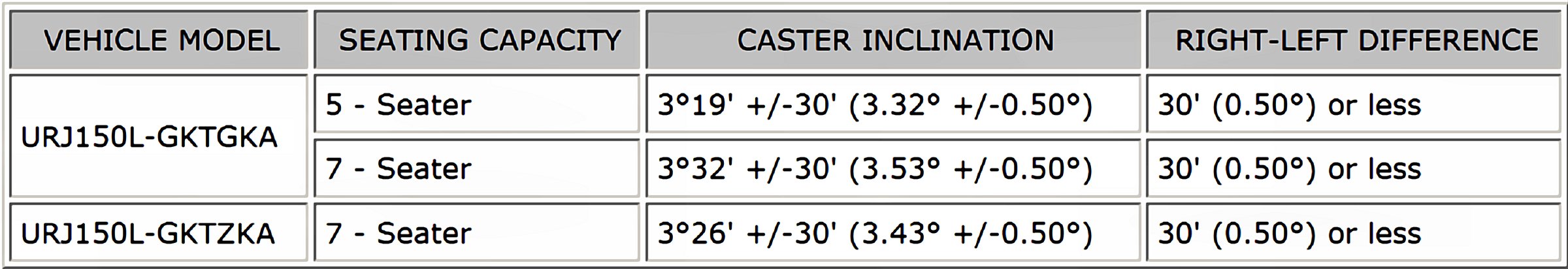

Standard Caster Inclination:

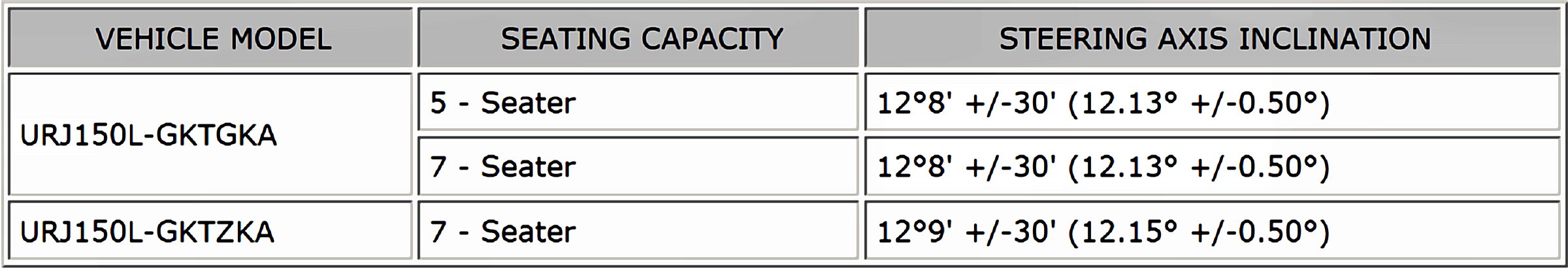

Standard Steering Axis Inclination:

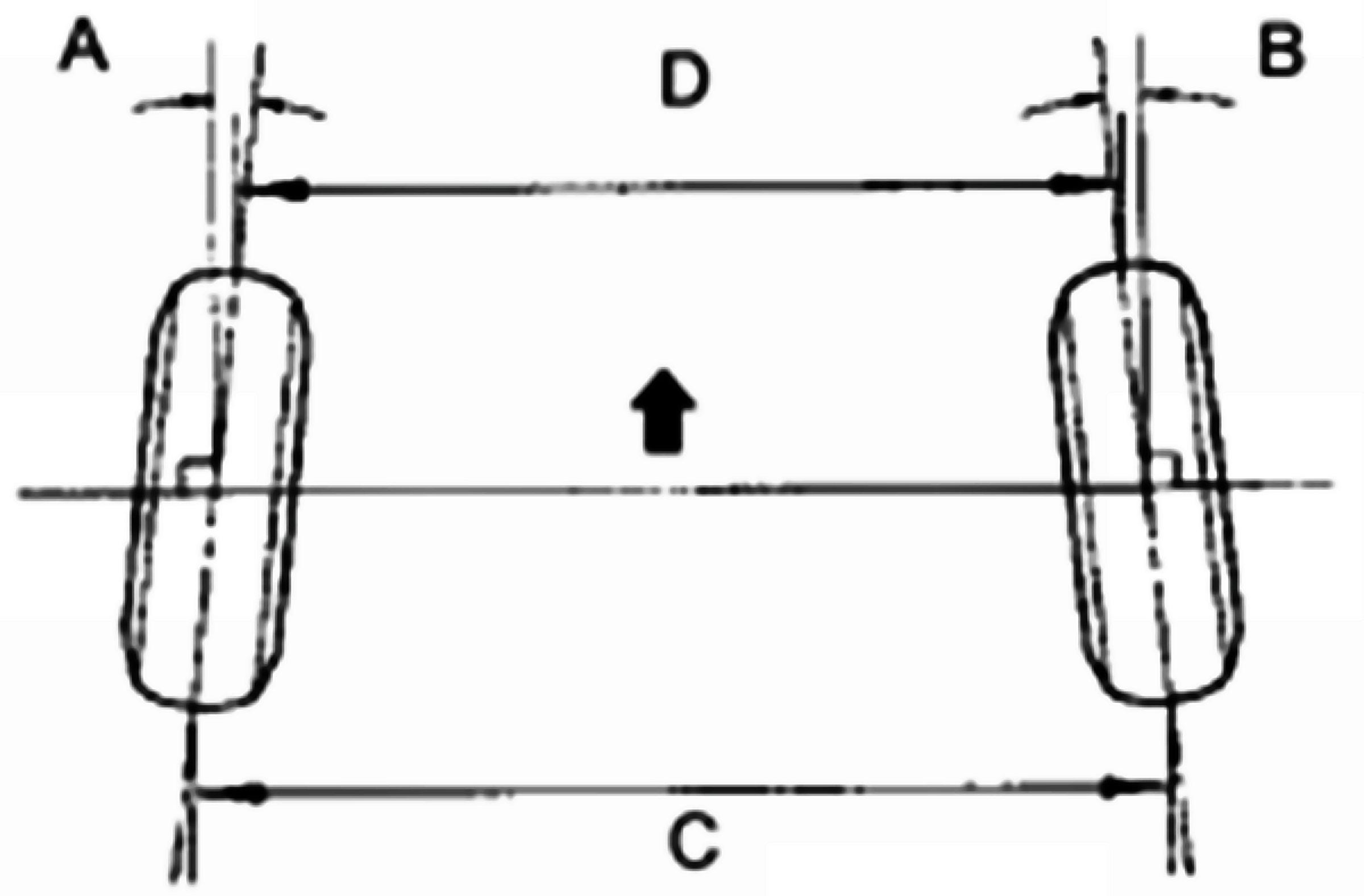

Toe-in Measurement Points:

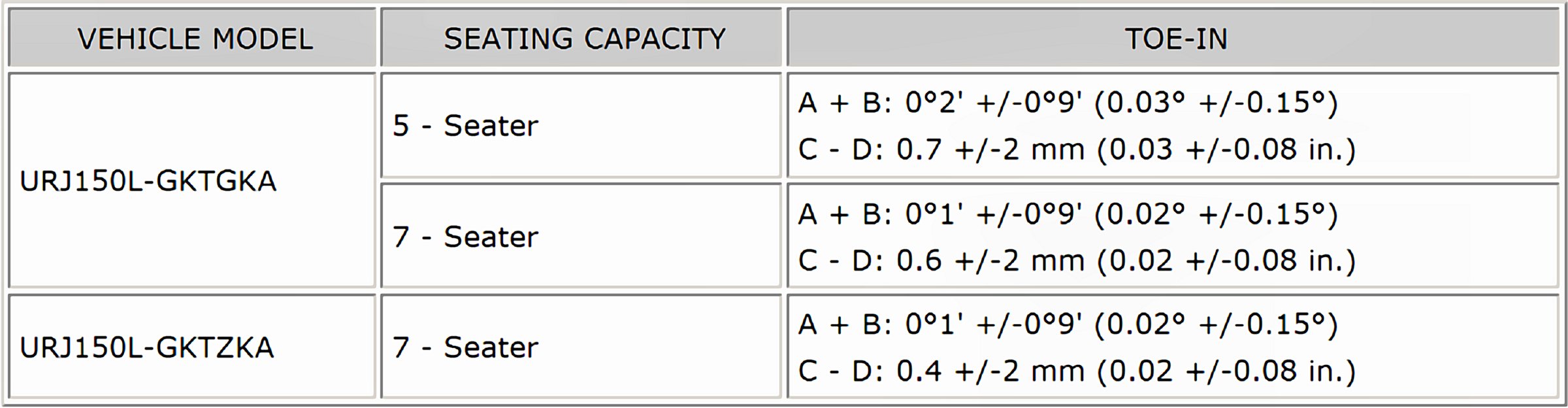

Standard Toe-in:

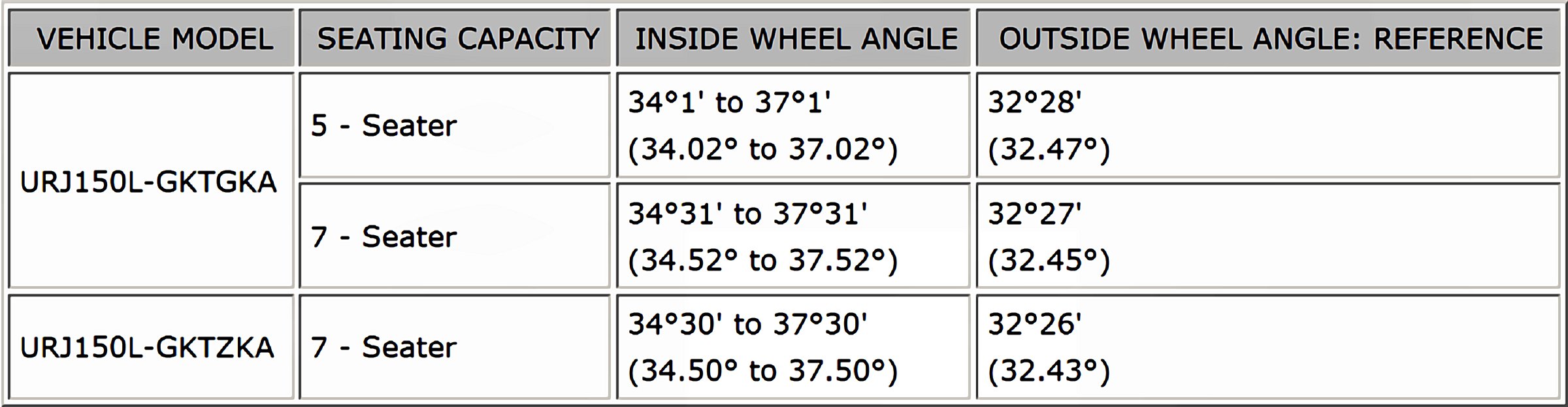

Standard Wheel Turning Angle:
