Grille: Service and Repair

Radiator Grille






Removal and Installation

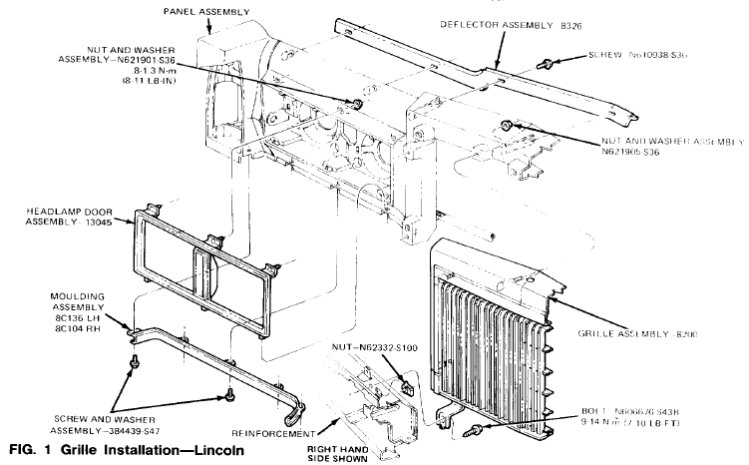

1. Remove two bolts securing grille actuator brackets to bumper reinforcement under vehicle (Figs. 1 and 2).
2. Remove the six nut and washer assemblies (two on each side of grille assembly and two at the top) that fasten the grille assembly to the grille opening panel. Remove the grille assembly.

NOTE: It may be necessary to use an extension on the socket wrench to gain access to the six grille attaching bolts.

3. Reverse Steps 1 and 2 for installation.
