Cruise Control Switch

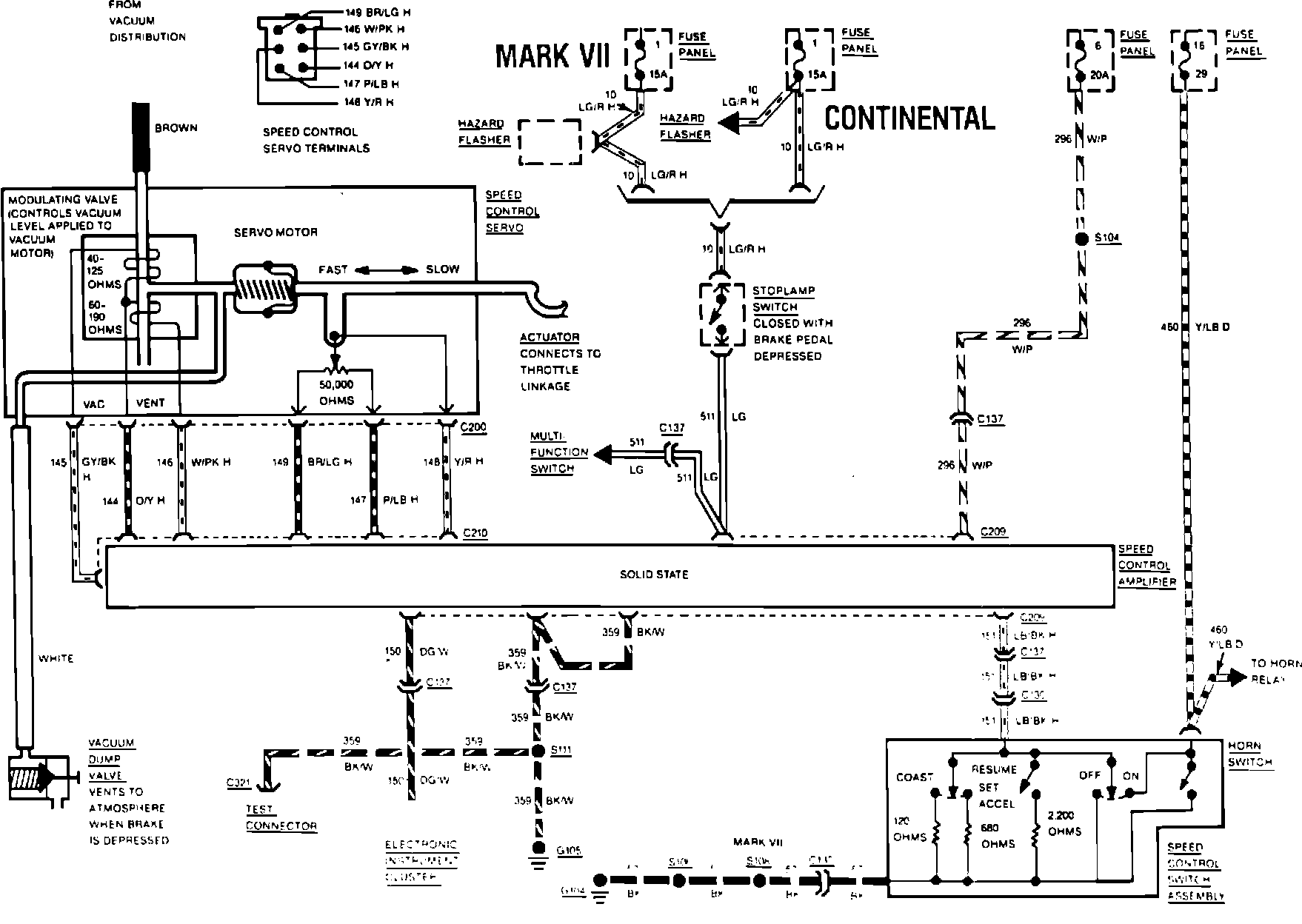

Fig. 7 Speed control wiring schematic (typical). 1982---85 Lincoln Continental & 1984---85 Mark VII:

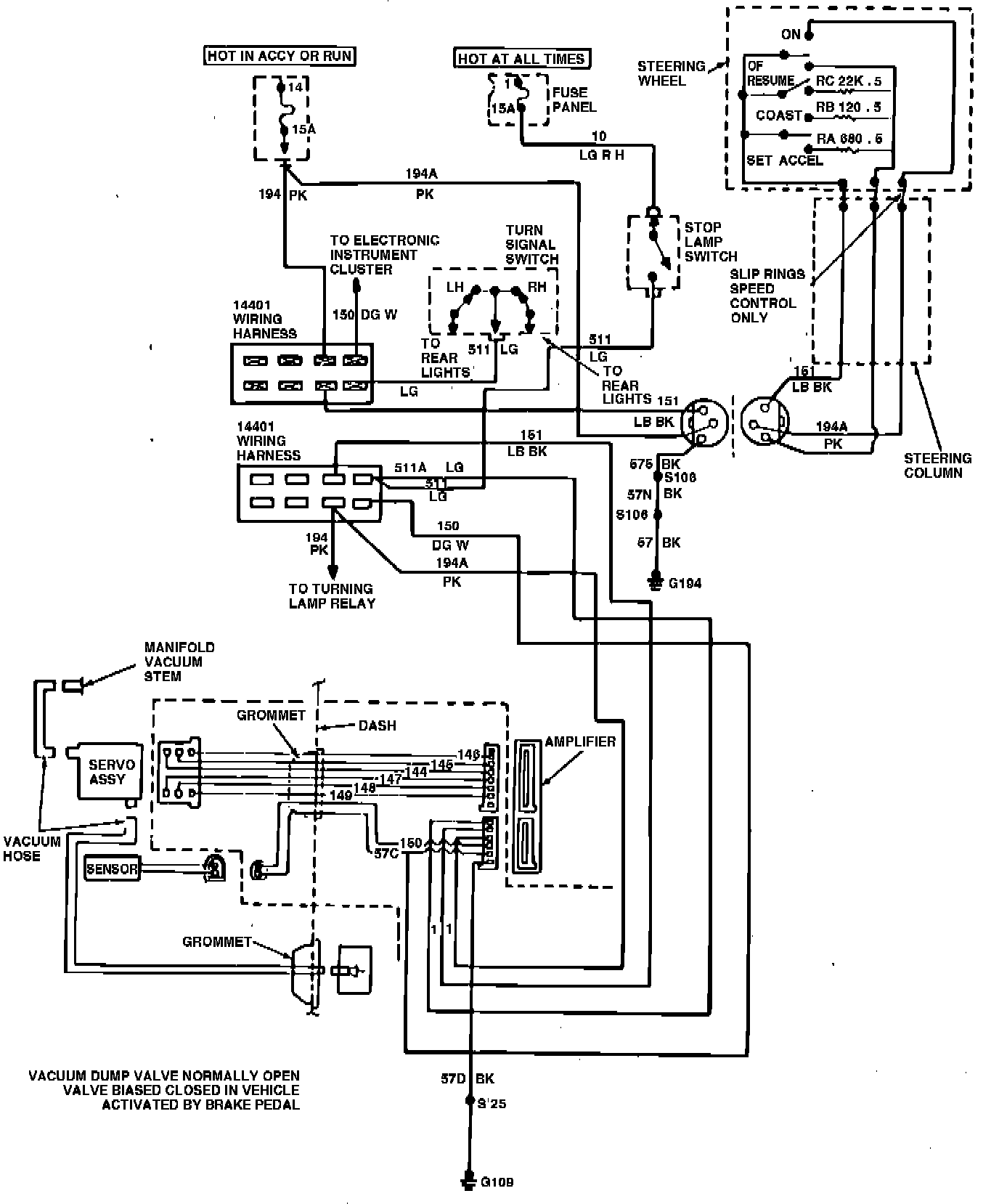

Fig. 172 Speed control wiring circuit. 1984 Continental & Mark VII:
