EEC III CFI (Central Fuel Injection)

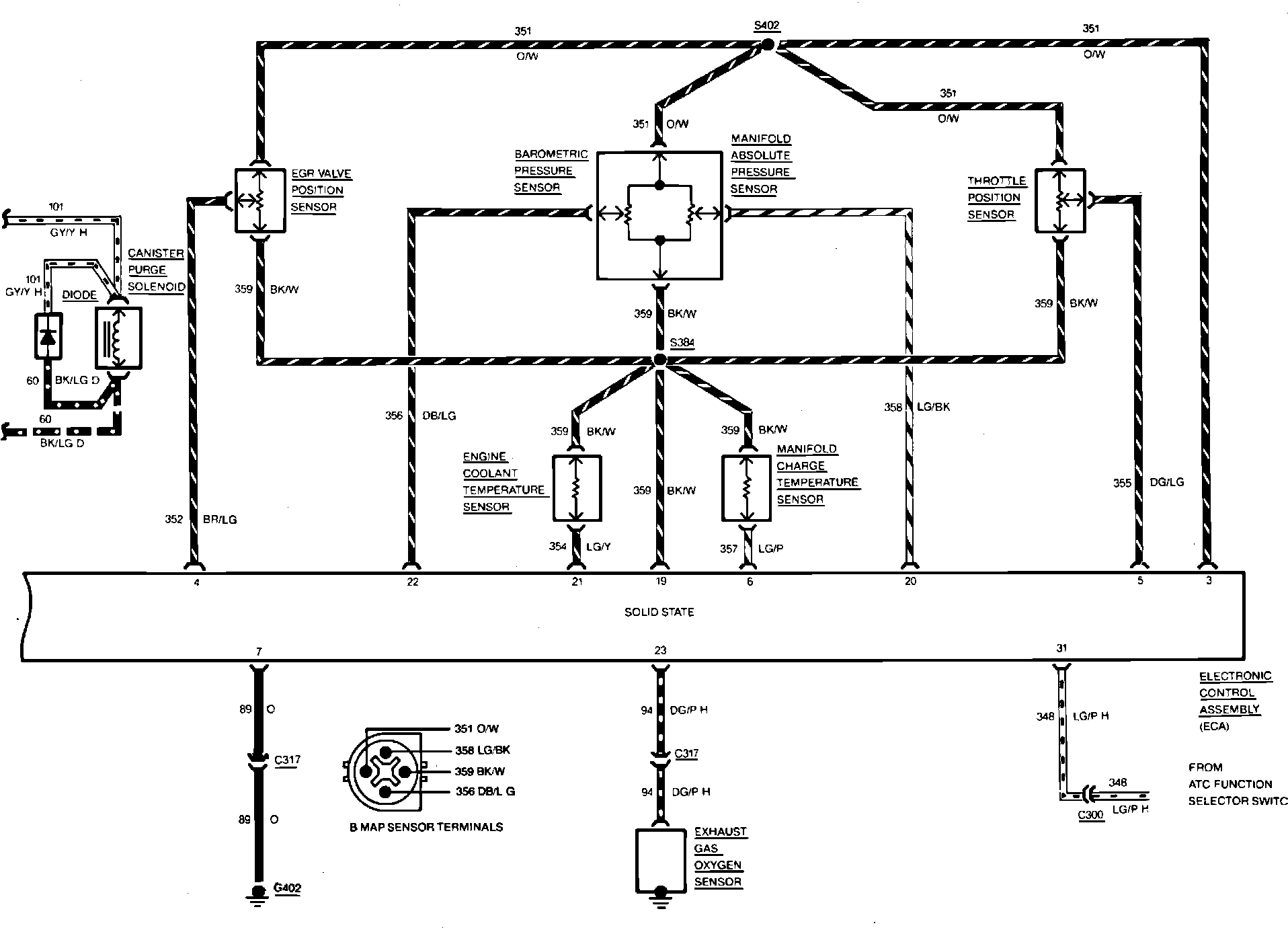

Fig. 64 Electronic engine control wiring circuit (Part 1 of 3). 1984 Continental & Mark VII with E.E.C. III:

Fig. 64 Electronic engine control wiring circuit (Part 2 of 3). 1984 Continental & Mark VII with E.E.C. III:

Fig. 64 Electronic engine control wiring circuit (Part 3 of 3). 1984 continental & Mark VII with E.E.C. III:
