Instrument Cluster / Carrier: Service and Repair

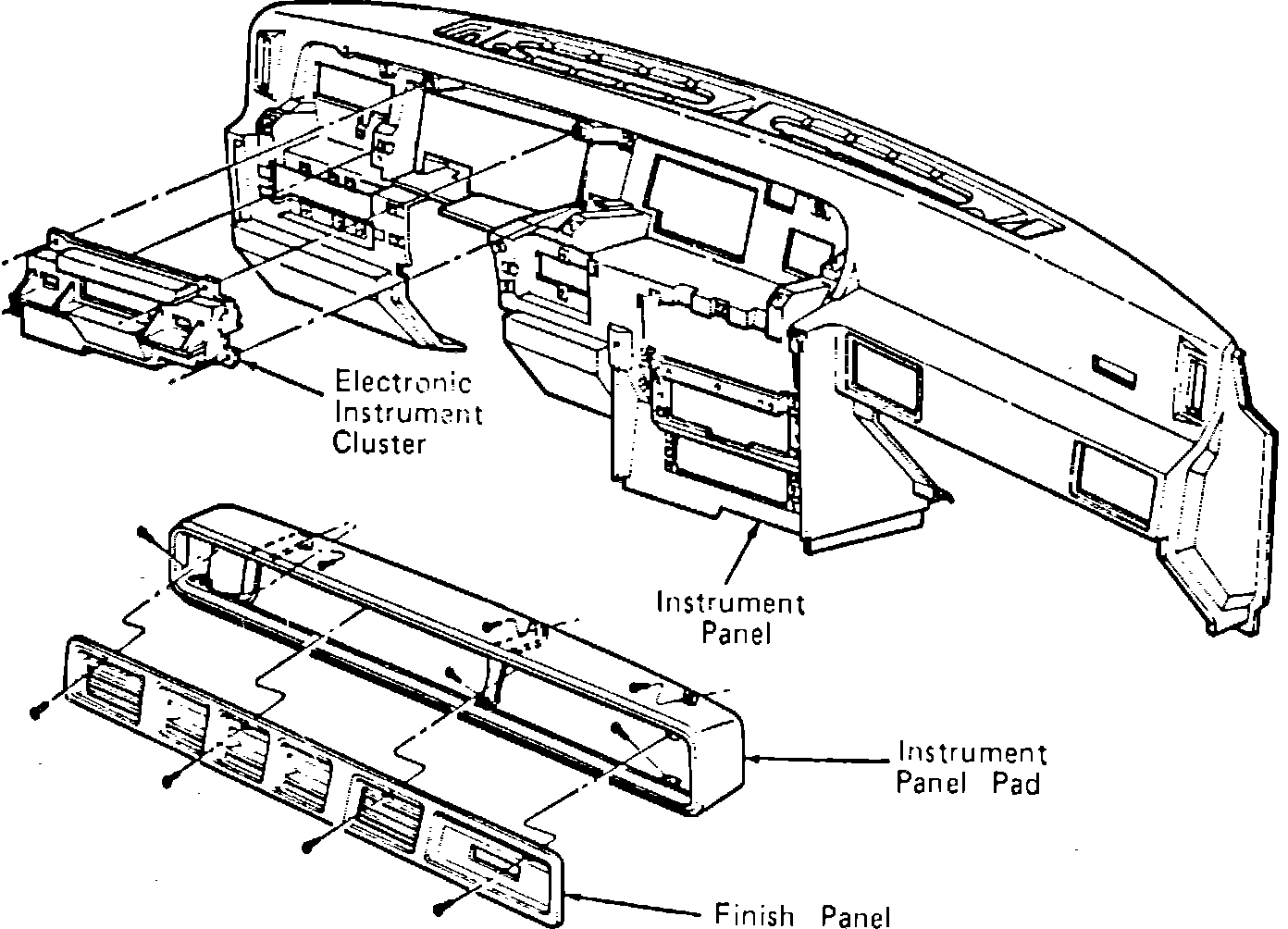

Fig. 4 Electronic instrument cluster. Mark VII:

MARK VII
1. Remove the four finish panel retaining screws, then rotate top of panel towards steering wheel and remove from vehicle, Fig. 4.
2. Remove the six instrument panel pad retaining screws, then rotate pad toward steering wheel and remove from vehicle.
3. Remove the four instrument cluster to instrument panel retaining screws, then pull cluster away from instrument panel.
4. Disconnect cluster electrical connector and remove cluster.
5. Reverse procedure to install.
