Power Locks
>>
Power Door Lock Switch
>>
Less Keyless Entry System
Less Keyless Entry System

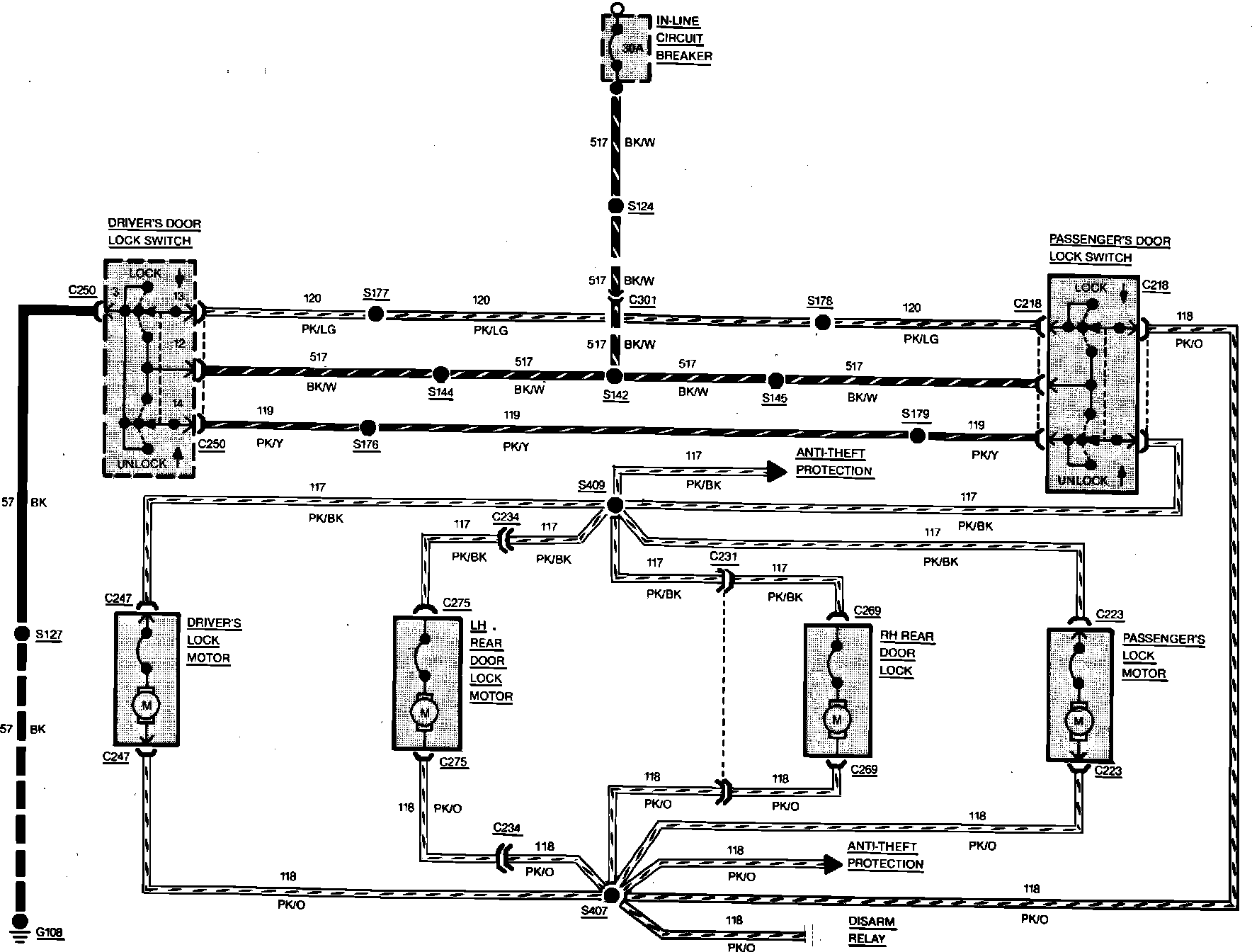

Fig. 69 Power Door Locks Wiring Circuit. Continental Less Keyless Entry System:
