Home >> Lincoln >> 1988 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Testing and Inspection >> W/ MTC

W/ MTC

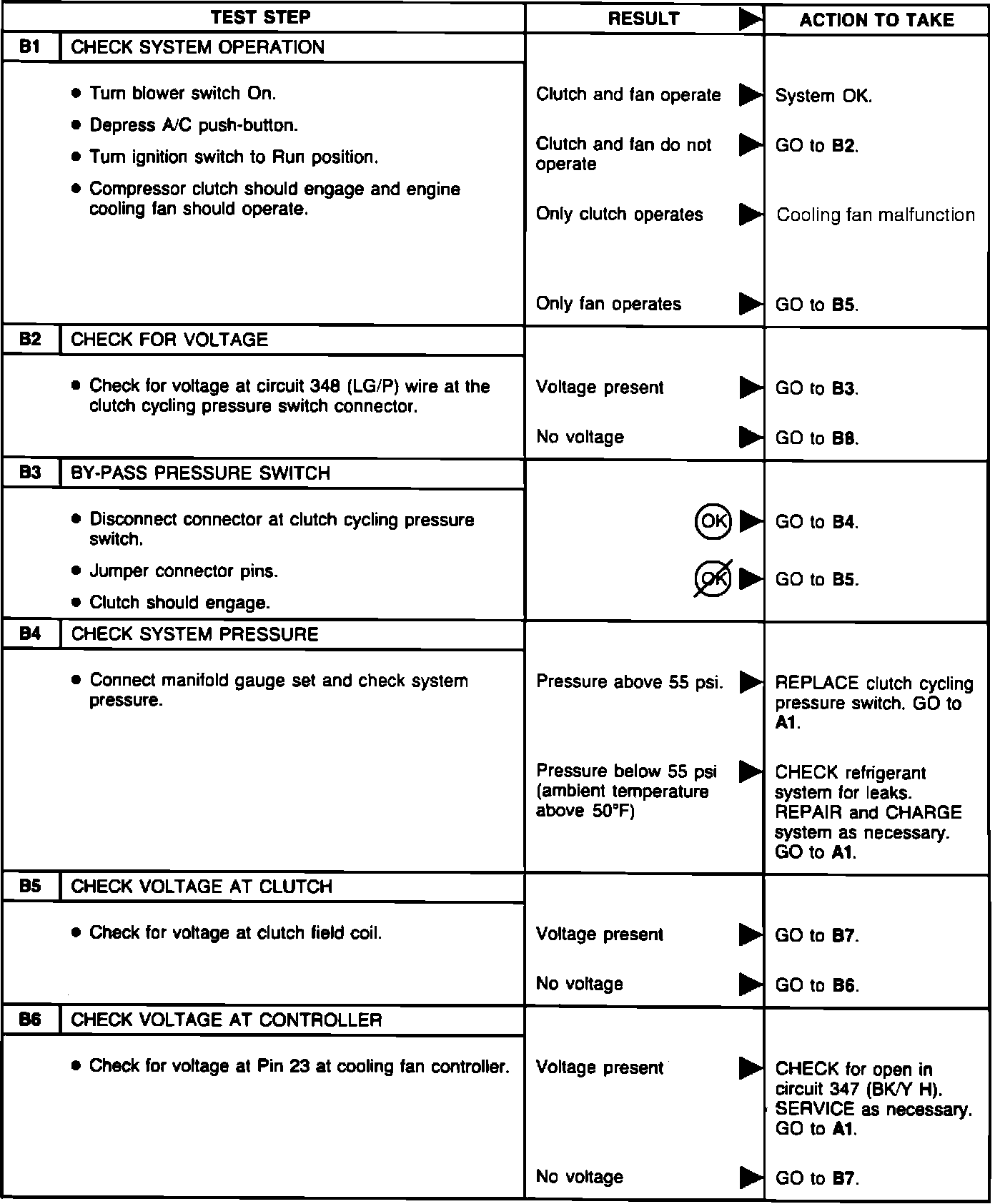

Compressor Clutch Circuit Diagnosis (Part 1 Of 2):

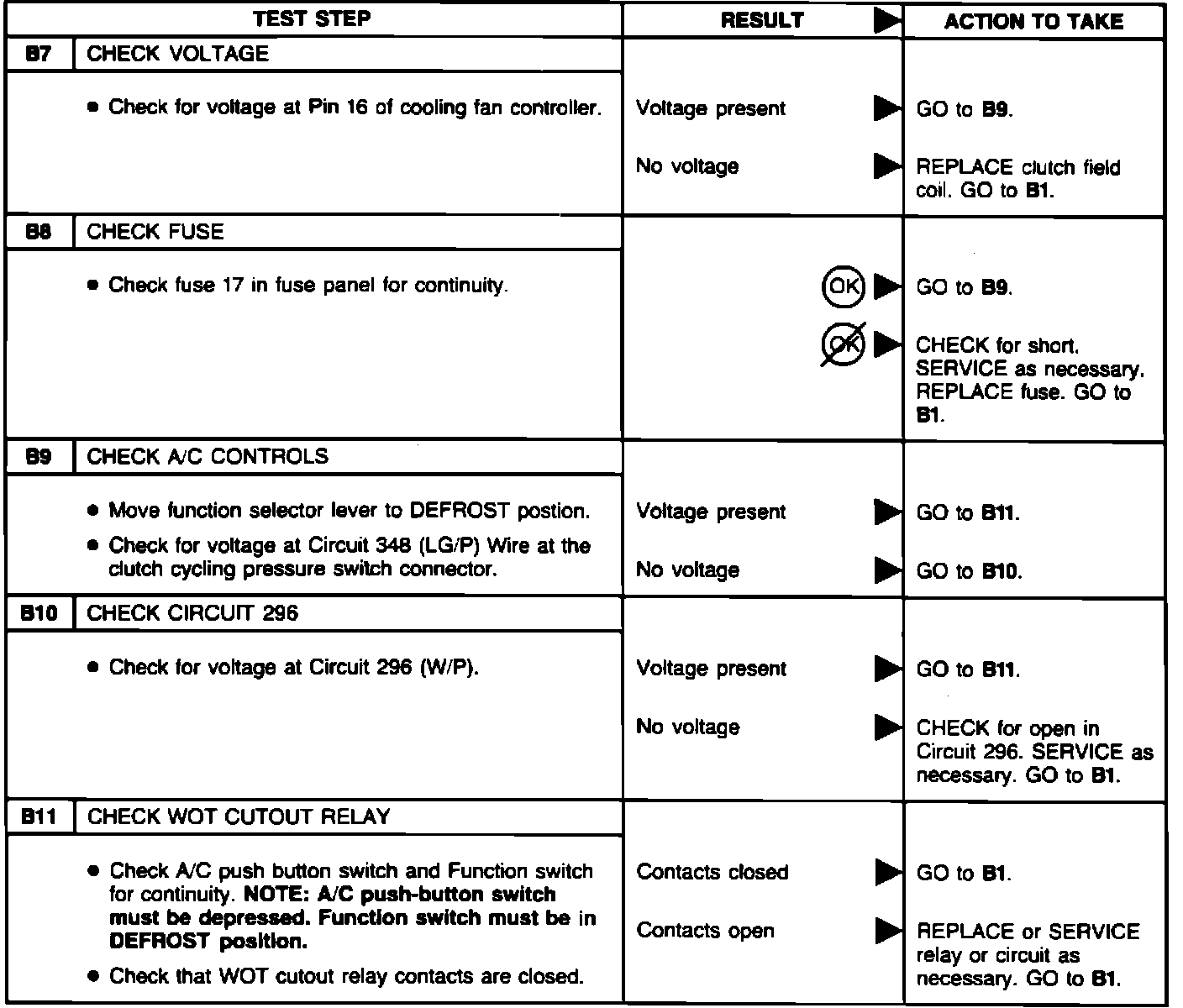

Compressor Clutch Circuit Diagnosis (Part 2 Of 2):
