Engine Controls

e�Wiring Diagram - Electronic Engine Controls:






Wiring Diagram - Electronic Engine Controls:

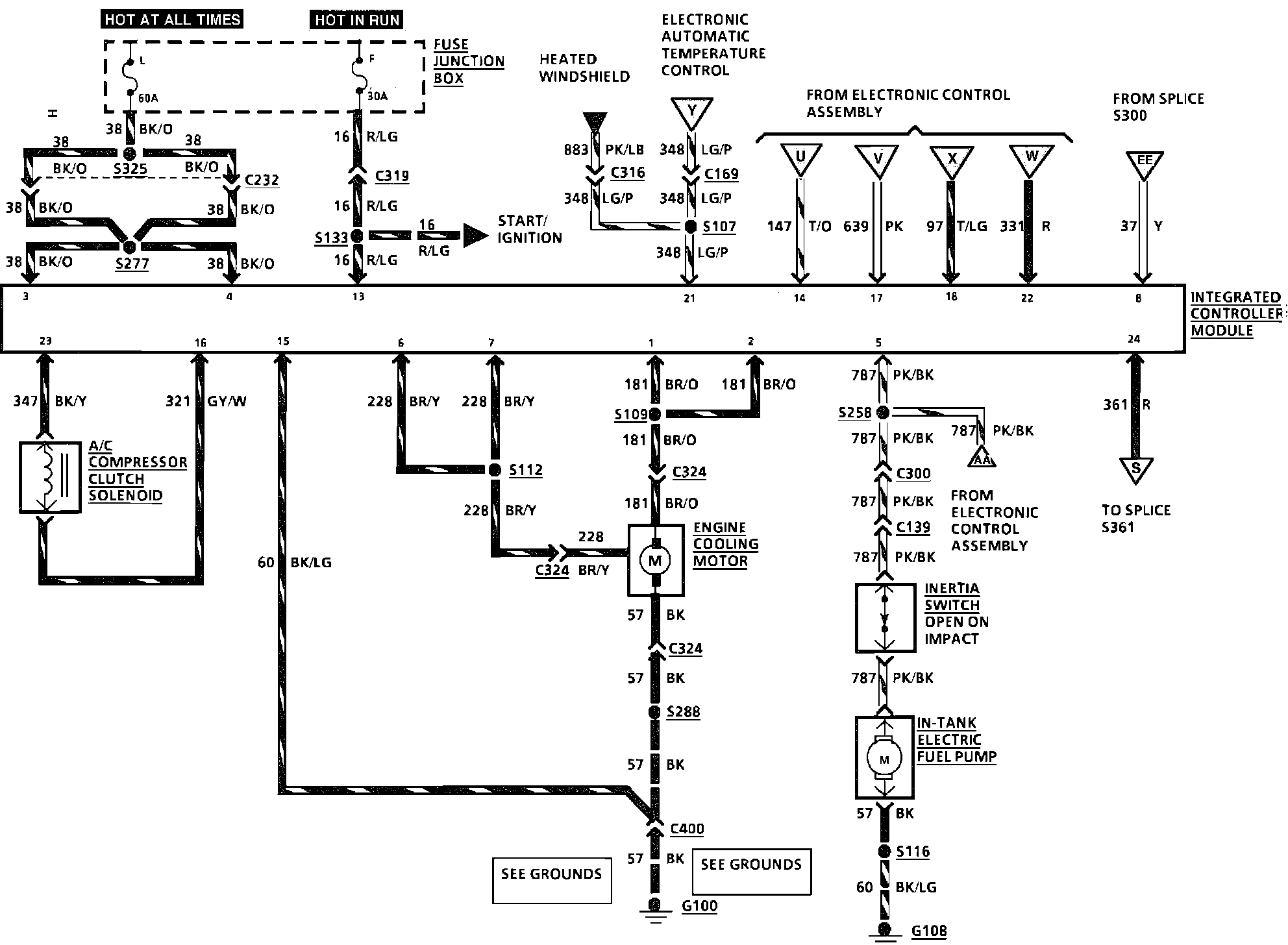

Wiring Diagram - Integrated Controller Module:
