Solenoid Valve Body

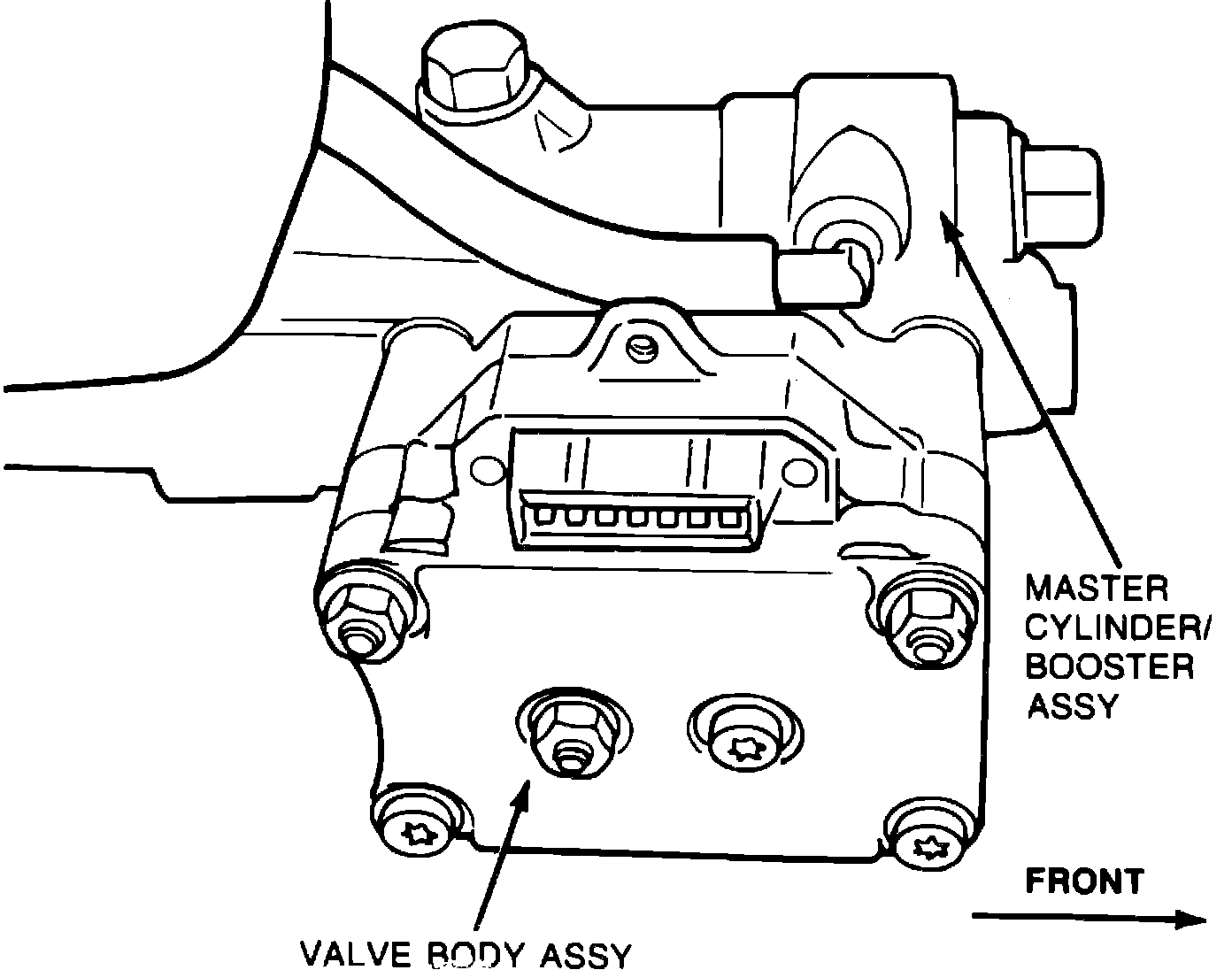

Fig. 5 Valve body assembly:

The valve body, Fig. 5, contains three pairs of solenoid valves, one for each front wheel and the third for both rear wheel combined. The solenoid valves are inlet and outlet valves with the inlet valve normally open and the outlet valve normally closed. The valve assembly is mounted on the inboard side of the master cylinder/booster assembly.
