Ignition Control Module: Locations

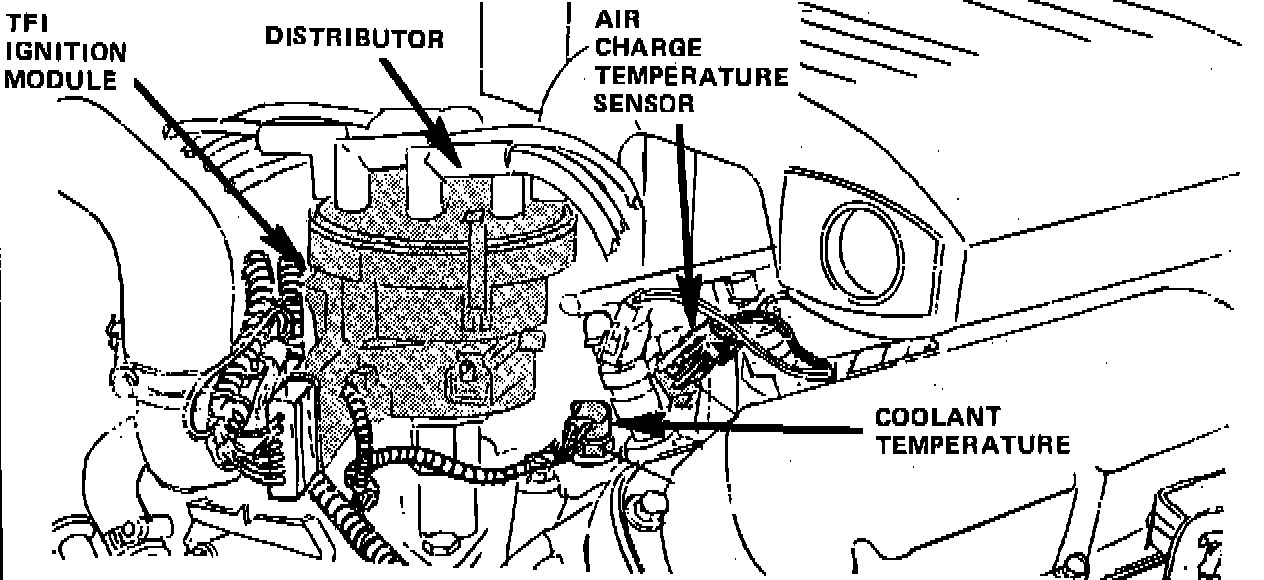

Top Front Of Engine.:




Attached To Distributor

Applicable to: Mark VII
