Home >> Lincoln >> 1988 >> Town Car V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Lights-On & Key Warning Wiring Circuit >> Part 1 of 2

Part 1 of 2

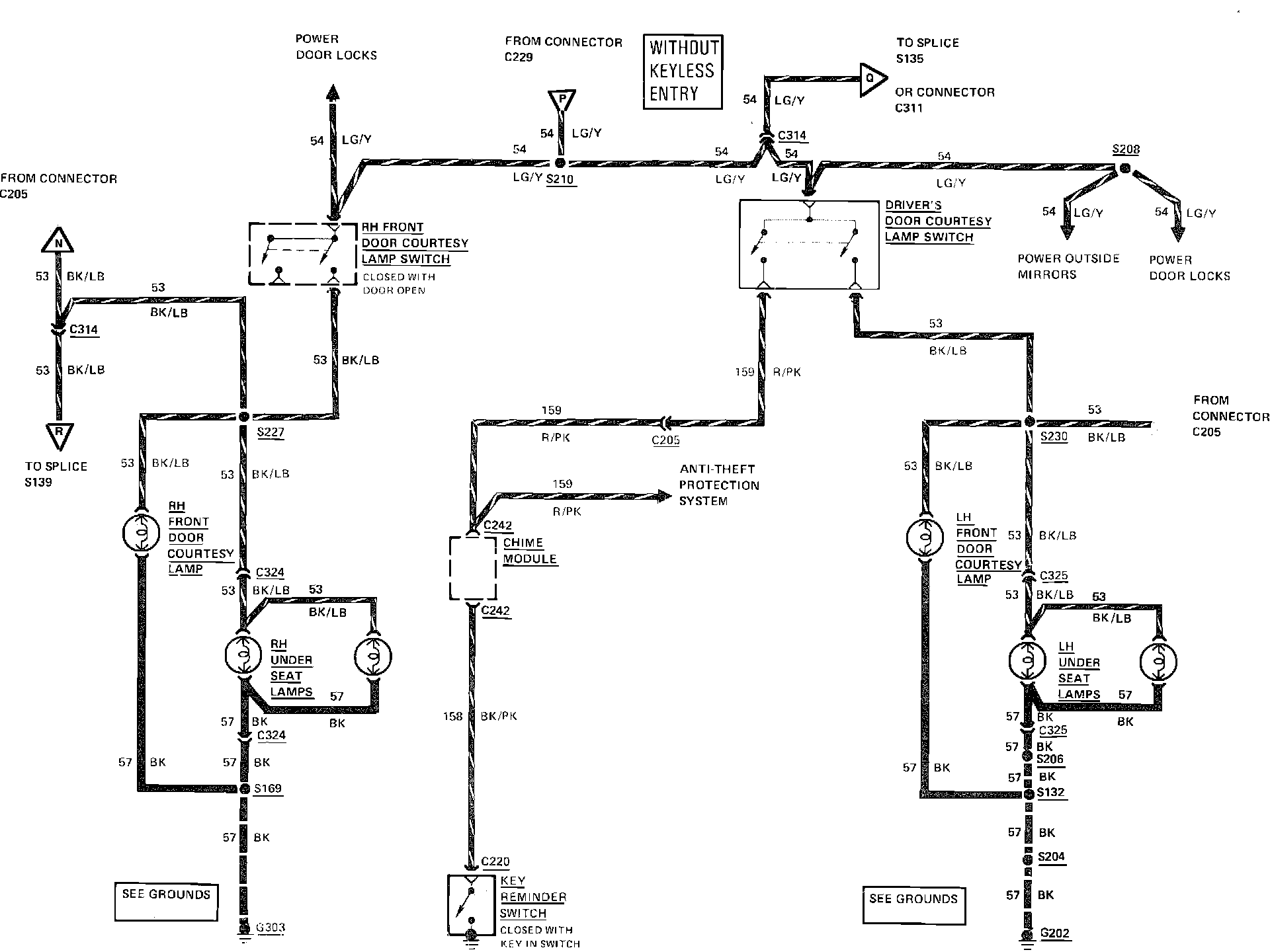

Lamps On & Key Warning Wiring Circuit:
