Marker Lamp
>>
Less Message Center
Less Message Center

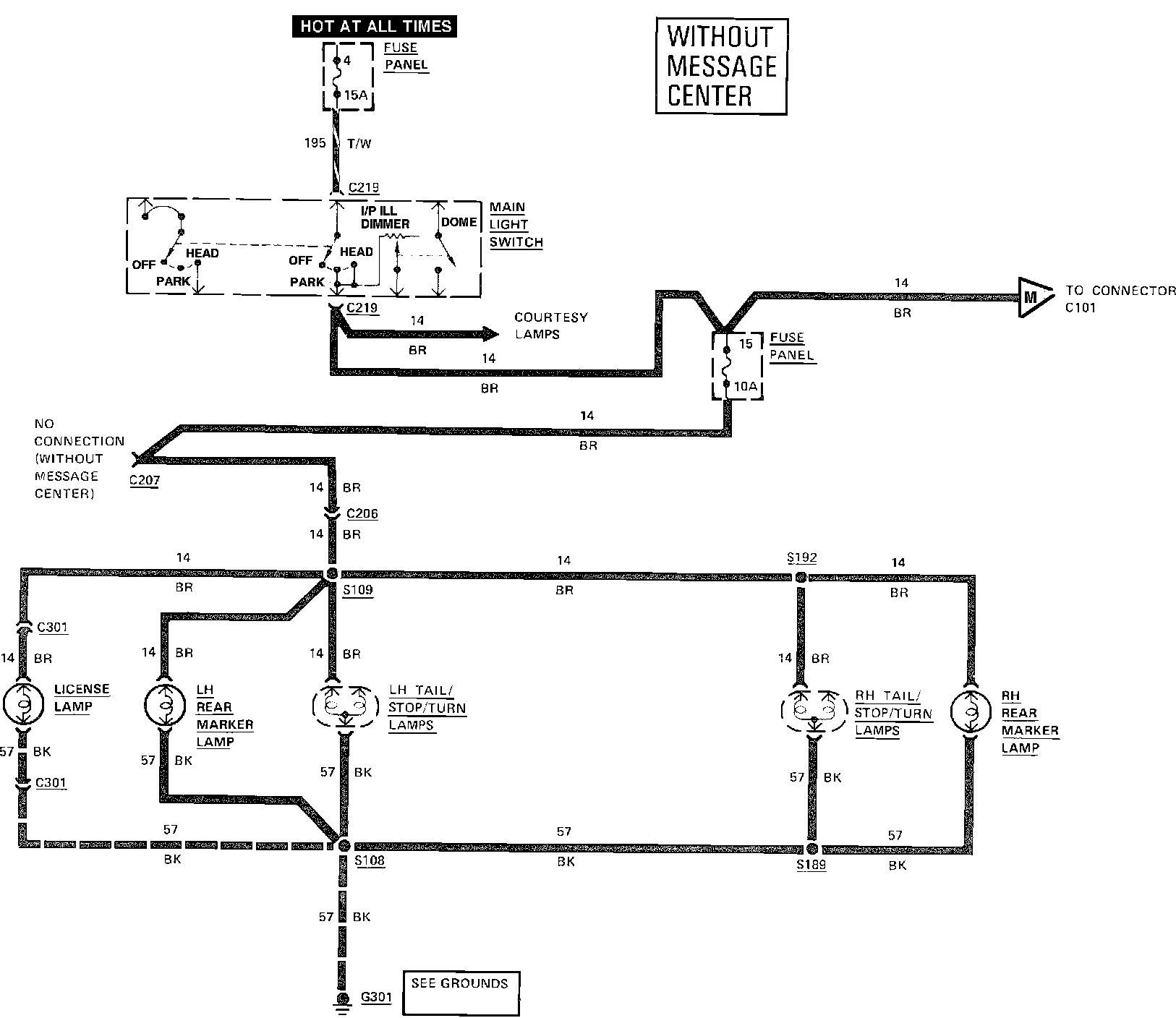

License, Rear Marker & Tail Lamps Wiring Circuit:
Front Park & Front Marker Lamps Wiring Circuit:
