Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

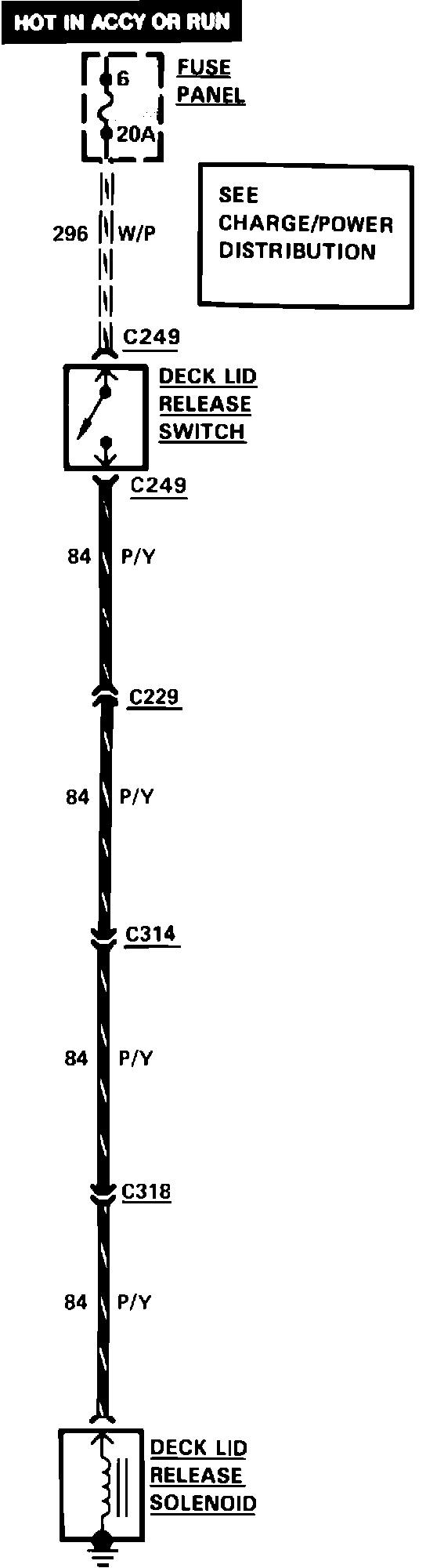

Deck Lid Release Wiring Circuit:
