Lincoln
>>
1988
>>
Town Car V8-302 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G201, W/Message Center
G201, W/Message Center

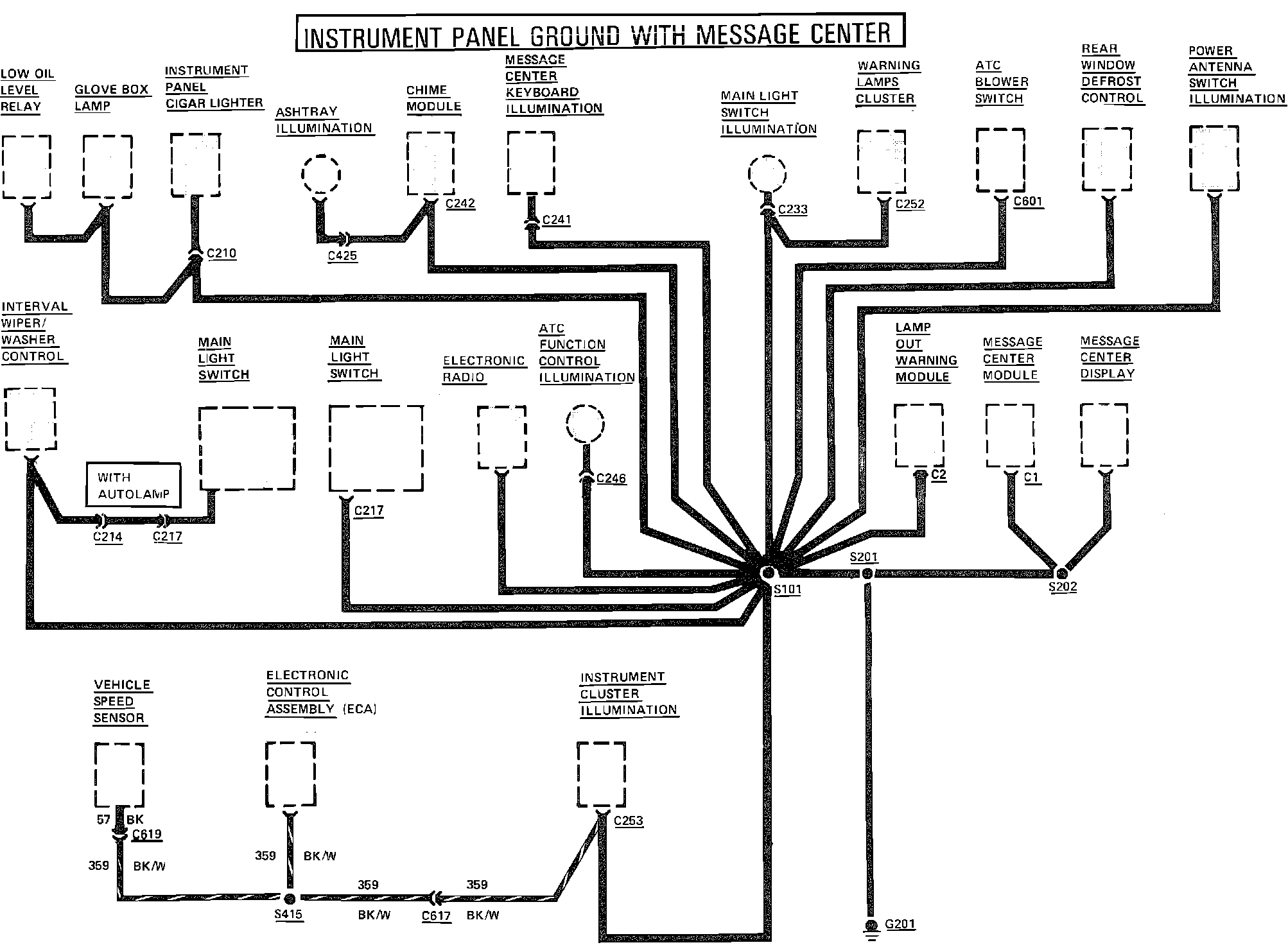

G201, w/Message Center:
