Town Car V8-302 5.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Cylinder Head Assembly
Cylinder Head Assembly

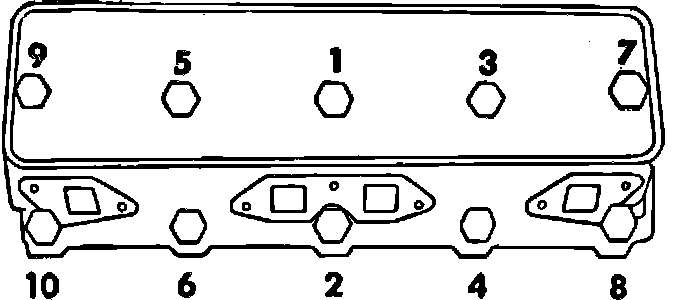

Fig. 7 Cylinder head tightening sequence. V8-302:
