Home
>>
Lincoln
>>
1988
>>
Town Car V8-302 5.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Main Light Switch
>>
With Autolamps
With Autolamps

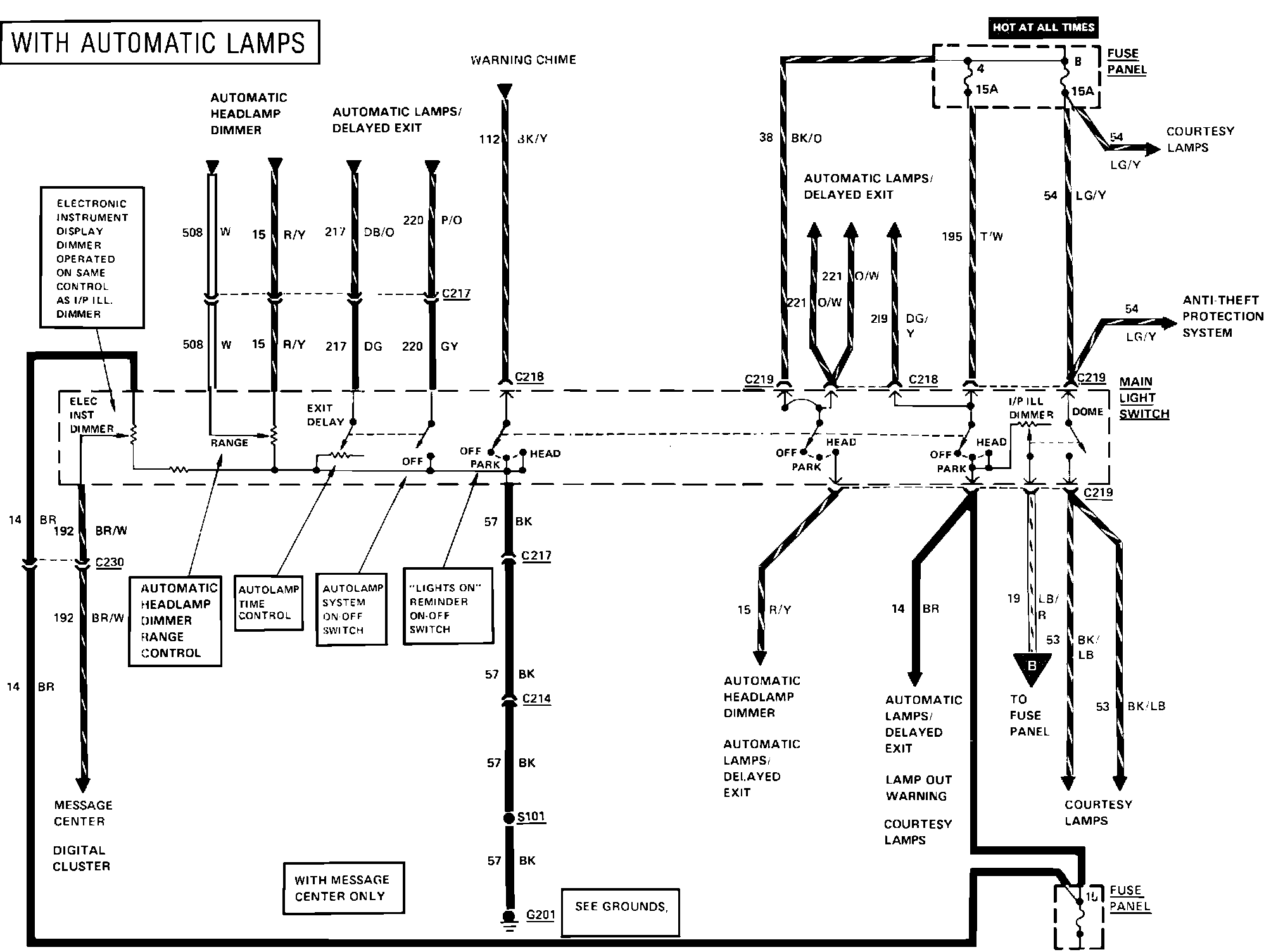

Main Light Switch, With Automatic Lamps:
