Home
>>
Lincoln
>>
1990
>>
Continental V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Damping Control Actuator
>>
Front
>>
Left Front Connector
Left Front Connector

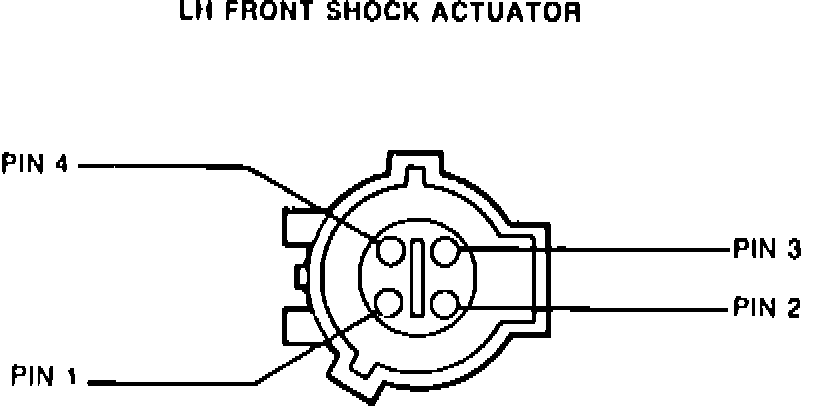

Fig. 14 Air Suspension Soft/Firm Shock Actuator Left Front Connector (Part 1 Of 2):

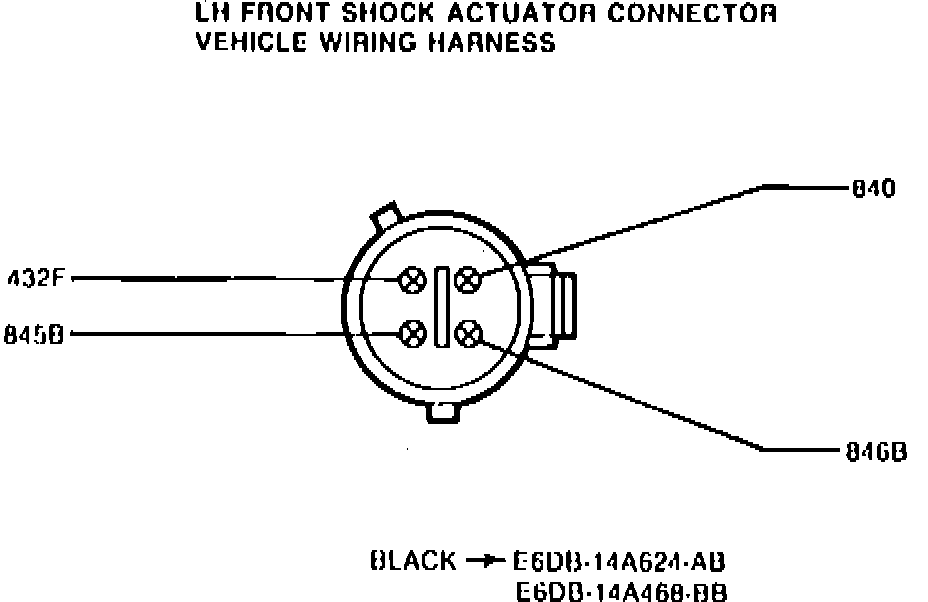

Fig. 14 Air Suspension Soft/Firm Shock Actuator Left Front Connector (Part 2 Of 2):
