Ride Height Sensor, Suspension Control
>>
Left Front Connector
Left Front Connector

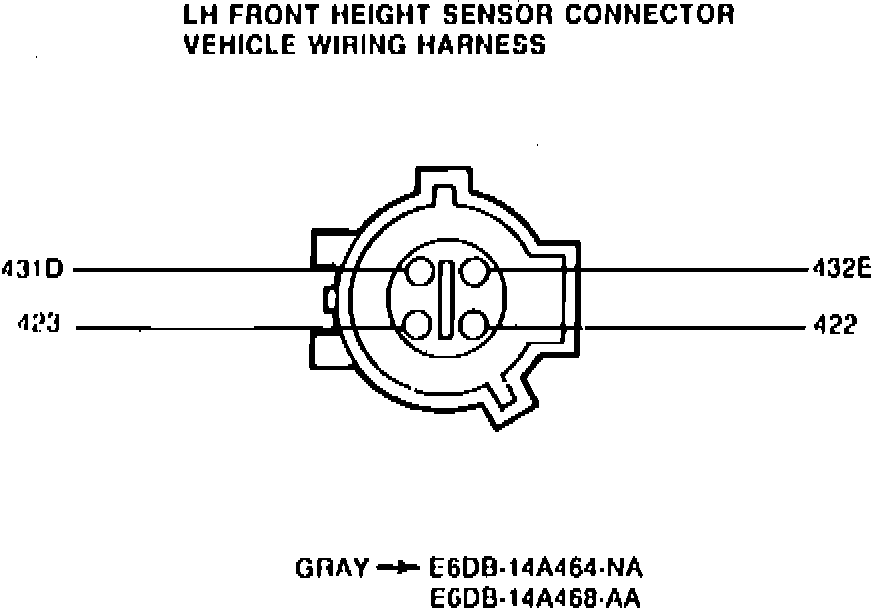

Fig. 17 Air Suspension Height Sensor Left Front Connector (Part 1 Of 2):

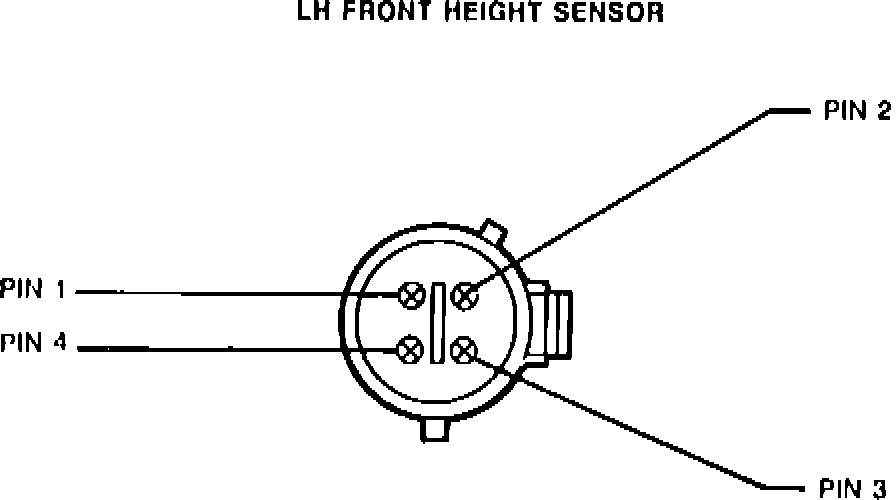

Fig. 17 Air Suspension Height Sensor Left Front Connector (Part 2 Of 2):
