Recirculation Duct Assembly
REMOVAL1. Open glove compartment and release retainers and lower door.
Fig 26 Recirc Duct Removal From Evaporator Case:

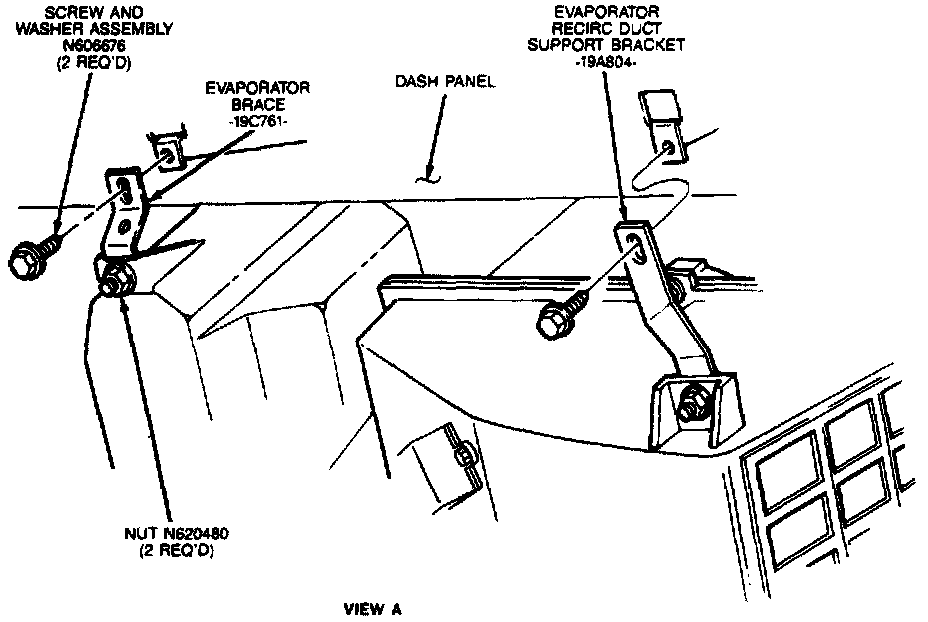

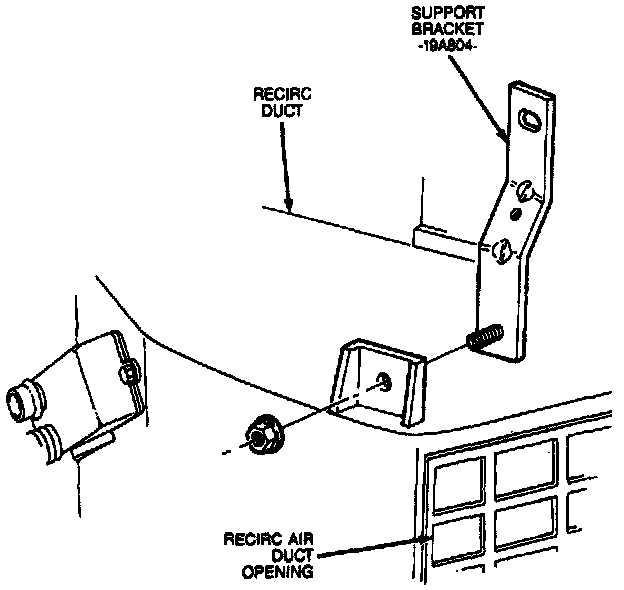

2. Remove screw retaining recirculation duct support bracket to cowl (illustration).
3. Remove nut holding electrical connector bracket to recirculation duct. Release three connectors from bracket and remove bracket (illustration).
4. Remove vacuum connection to recirculation door vacuum motor and disconnect the two aspirator hoses from the muffler.

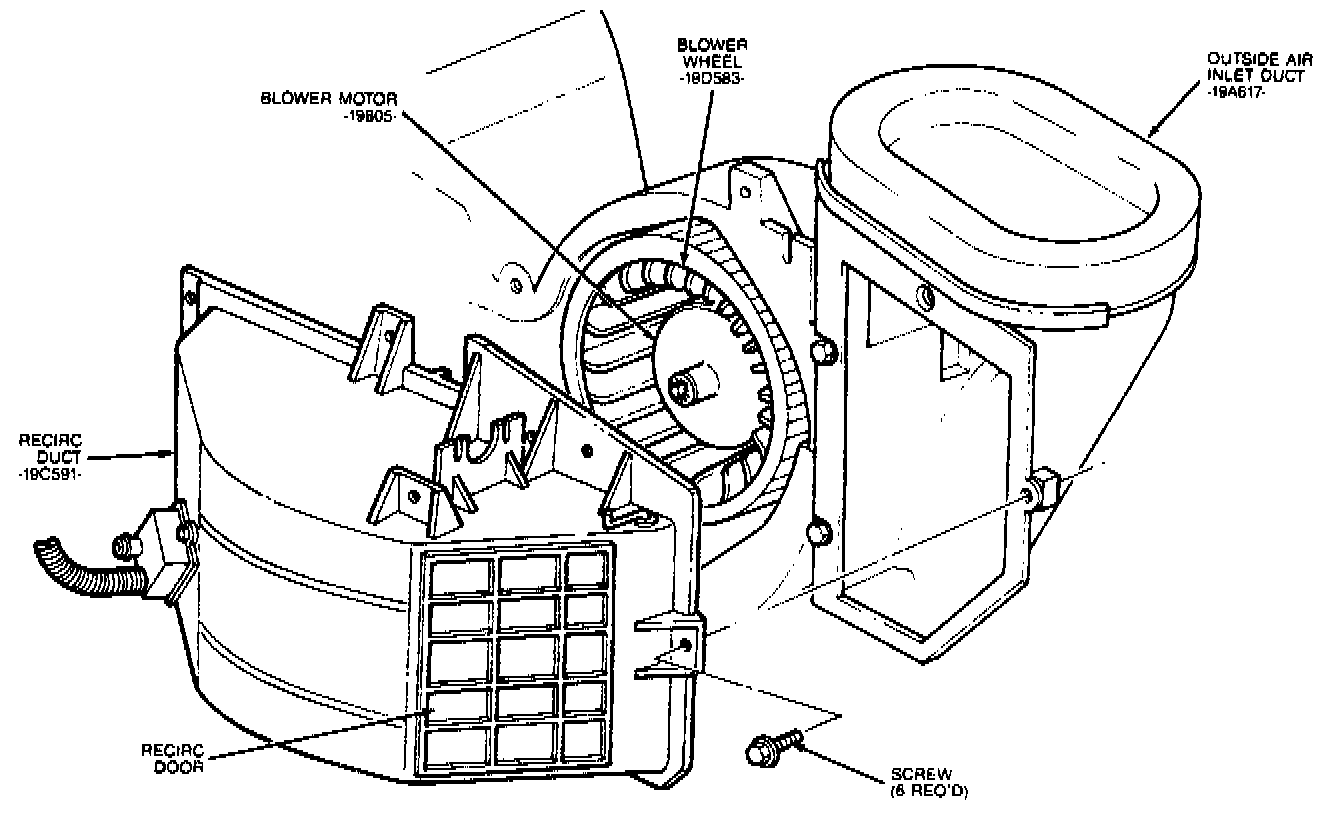

5. Remove six screws retaining recirculation duct to evaporator assembly.
6. Remove recirculation duct from evaporator assembly by lowering it between instrument panel and evaporator case.
INSTALLATION
1. Install recirculation duct to evaporator, lifting recirculation duct between instrument panel and evaporator case.
2. Install six screws retaining recirculation duct to evaporator case.
3. Install vacuum connector to recirculation door vacuum motor and connect the two aspirator hoses to the muffler.
4. Install electrical bracket to recirculation duct with one nut. Snap three connectors onto bracket.
5. Install screw retaining support bracket to cowl.
6. Close glove compartment door.
