Reverse Clutch

DISASSEMBLE

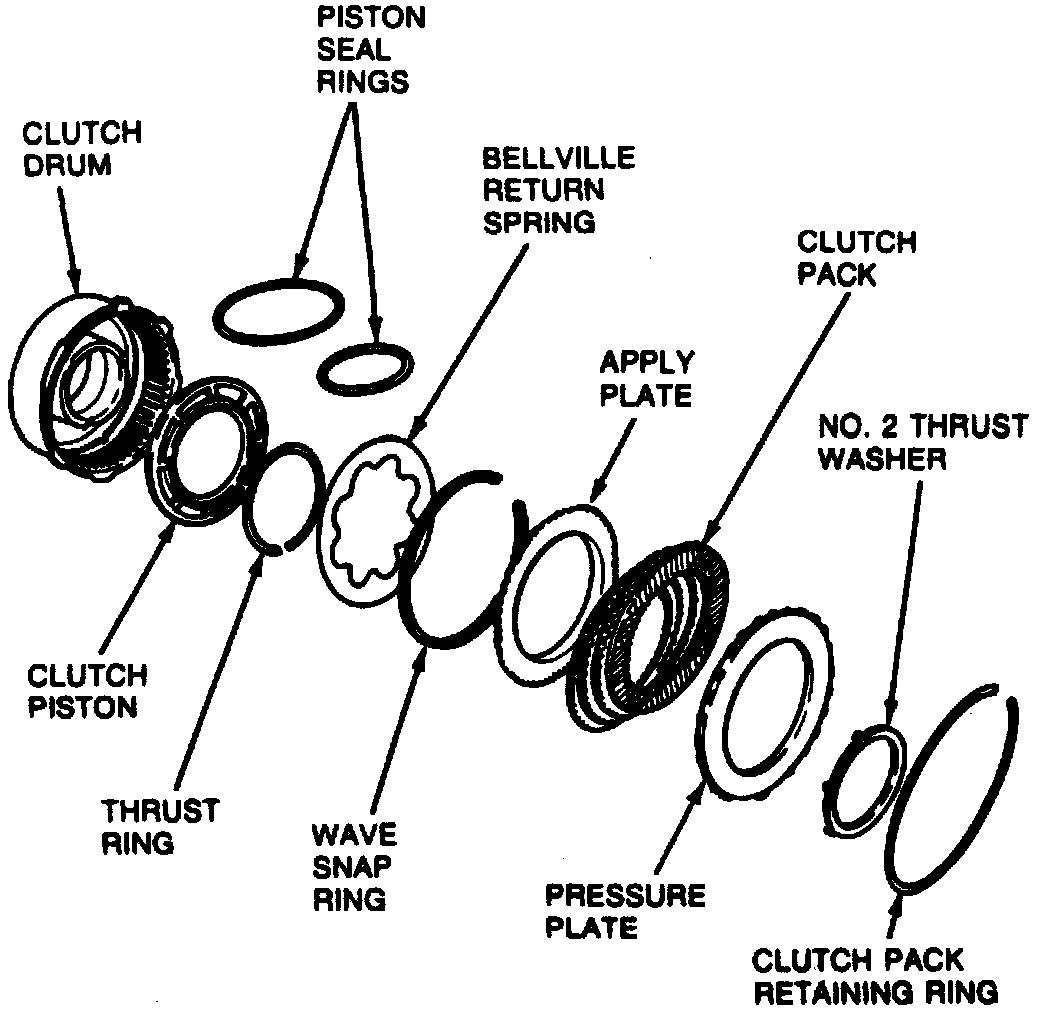

Exploded View Of Reverse Clutch:

1. Remove No. 2 thrust washer or needle bearing.

NOTE: Passenger car and four-wheel drive truck applications use thrust washer while two-wheel drive truck applications use a needle bearing.

2. Remove clutch pack retaining ring.
3. Remove clutch pack.
4. Using suitable tools, remove wave snap ring.
5. Remove piston return spring and thrust ring.
6. Remove clutch piston, applying air pressure, if necessary, while blocking opposite hole with finger.

ASSEMBLE
1. Install new seals on clutch piston and ensure check ball moves freely.
2. Install clutch piston as follows:
a. Coat piston seals and clutch drum seating area with petroleum jelly.
b. Install reverse clutch inner seal protector T80L-77403-B and reverse clutch outer seal protector T80L-77403-A, or equivalents, in clutch drum.
c. Coat piston seals, clutch drum sealing area, and seal protector with petroleum jelly.
d. Position piston and push it to bottom of drum using even thumb pressure
3. Install piston thrust ring and piston return spring.
4. Using suitable tools, install wave snap ring, points down.
5. Install clutch pack, installing apply plate first with dished side facing piston.
6. Install clutch pack retaining ring and check clearance between ring and pressure plate, hold in pressure plate downward while checking clearance

Reverse Clutch Clearance Chart:

7. If clearance is not within specifications, as shown in the Reverse Clutch Clearance Chart image, install correct replacement snap ring. Snap rings are available in inch thicknesses of 0.060-0.064, 0.074-0.078, 0.088-0.092, and 0.102-0.1O6.
8. Check clutch for proper operation using air pressure. The clutch should be heard and felt to apply smoothly without air leakage.
9. Install No. 2 thrust washer or needle bearing.
