Lincoln
>>
1990
>>
Town Car V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Cruise Control Switch
Cruise Control Switch

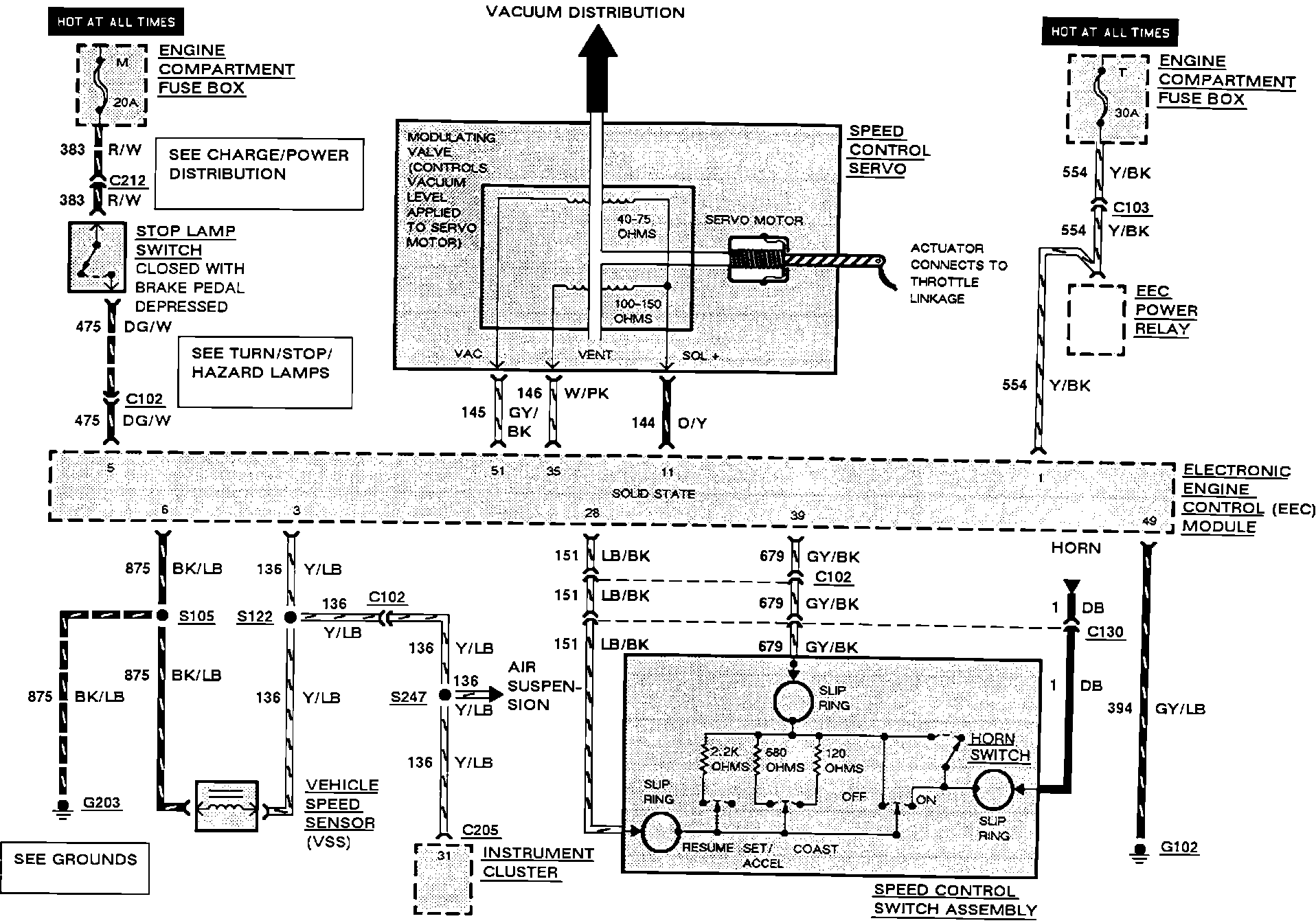

Speed Control. Wiring Diagram:
