Home
>>
Lincoln
>>
1990
>>
Town Car V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

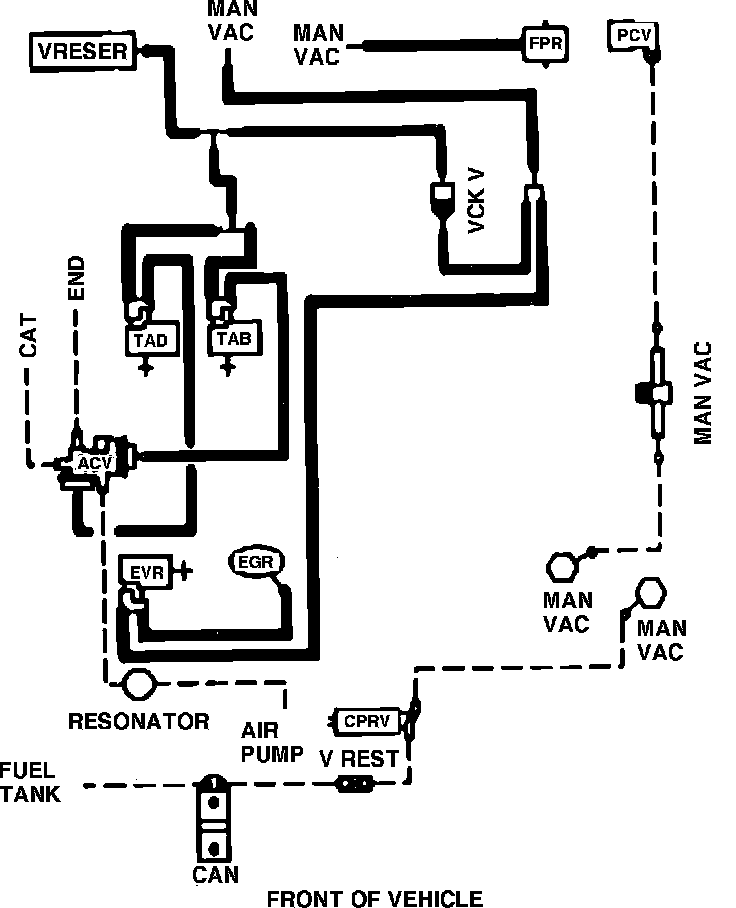

Fig. 21 Vacuum Hose Routing W/EFI
Fig. 21 Vacuum Hose Routing W/EFI
Fig. 21 Vacuum Hose Routing w/EFI:
