Suspension: Tools and Equipment

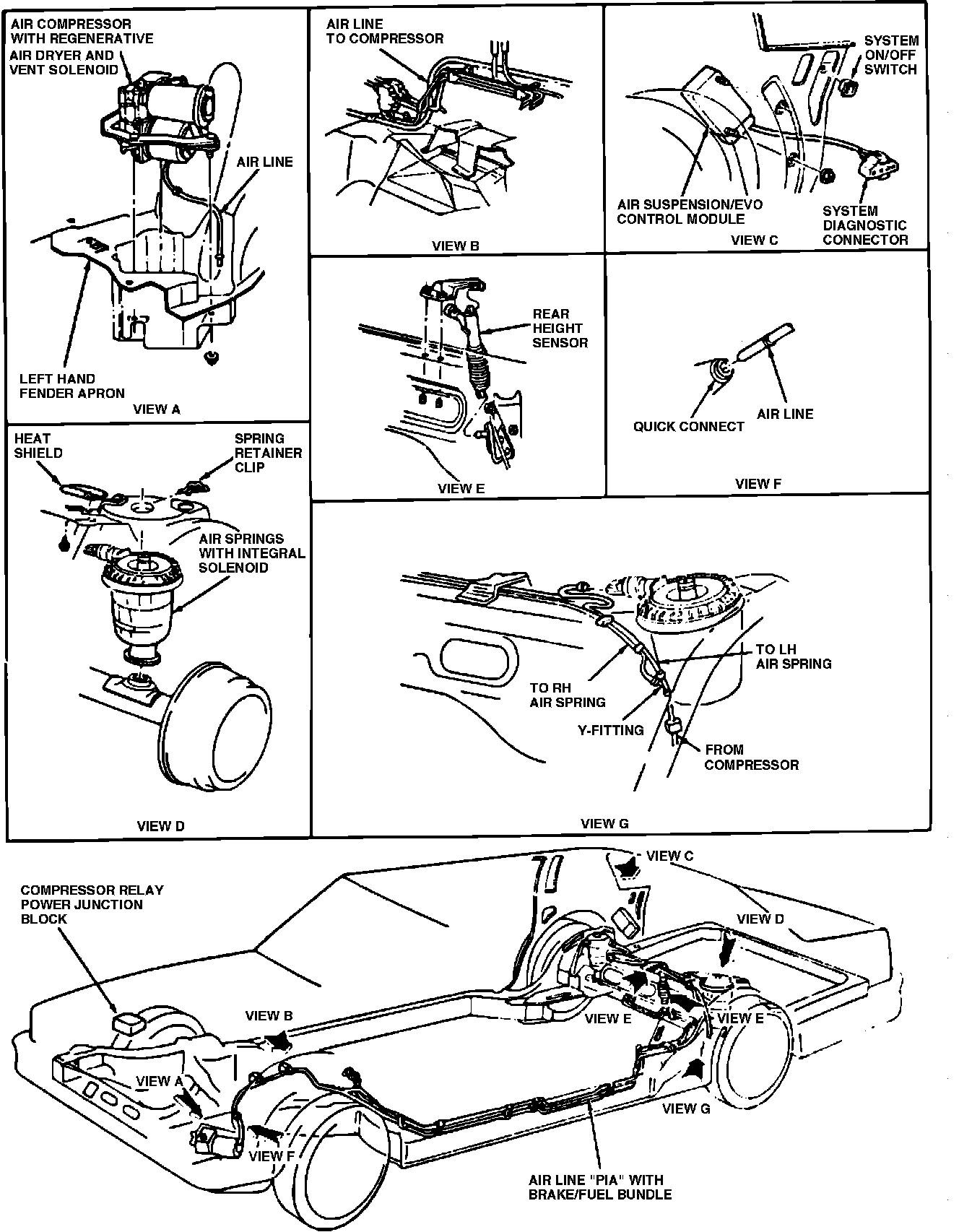

Fig. 1 Air Suspension System:

To properly diagnose and test this system requires the use of Star Tester model 007-0004 or Super Star II Tester model 007-00041 or equivalents. Do not use Super Star Tester model 007-00019. Follow tool manufacturer's instructions for installation and operation of the tool. Refer to Fig.1, for system diagnostic connector.
