Home >> Lincoln >> 1991 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Power Distribution >> Circuit Breaker K >> Less Keyless Entry

Less Keyless Entry

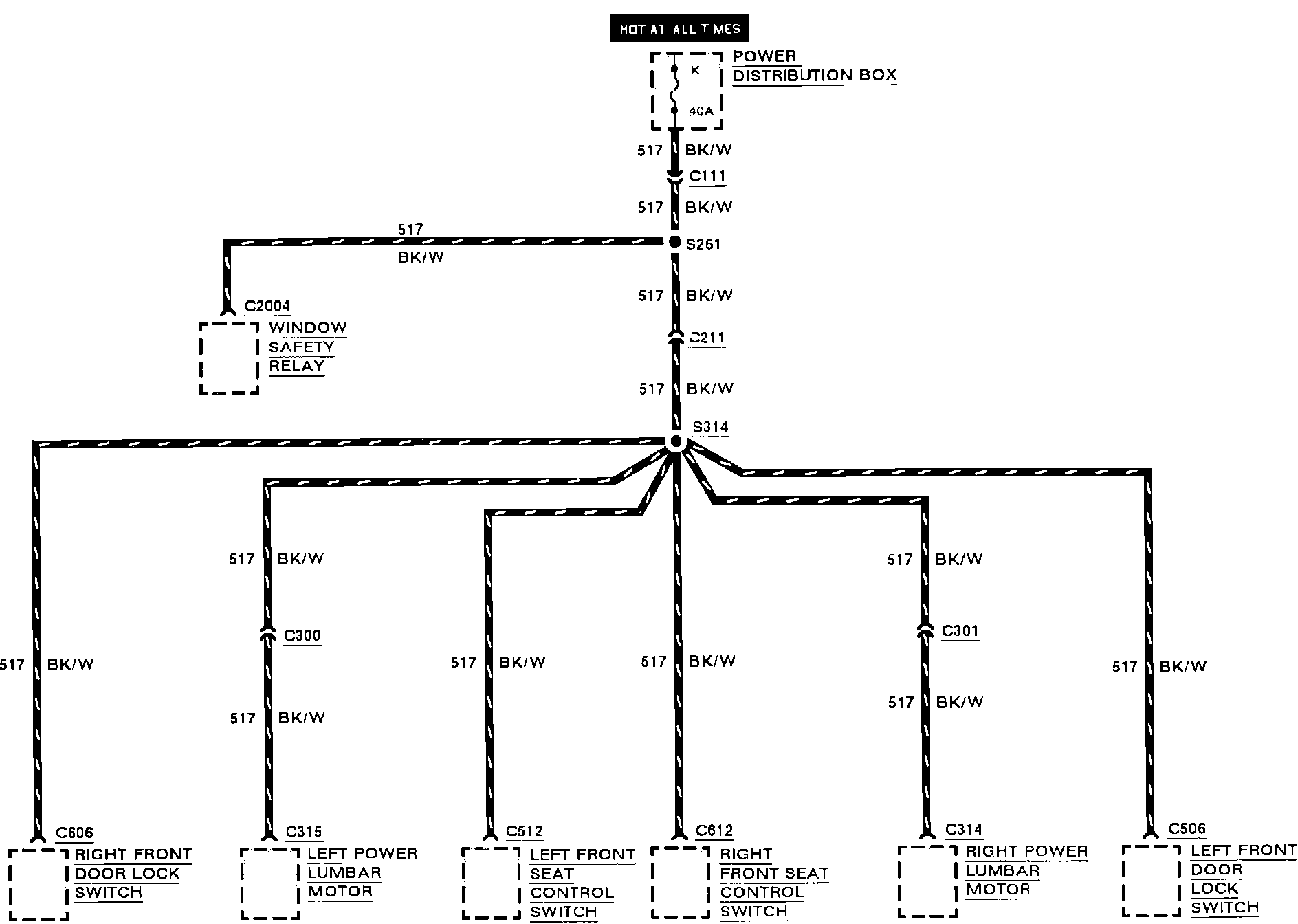

Power Distribution Fuse K (without Keyless Entry):
