One-Way Clutch, A/T

DISASSEMBLE

Exploded View Of Center Support And Planetary One-Way Cutch Assembly:

1. Remove center support from planetary carrier by rotating center support counterclockwise and lifting.
2. Carefully remove planetary one-way clutch from planetary assembly.

ASSEMBLE

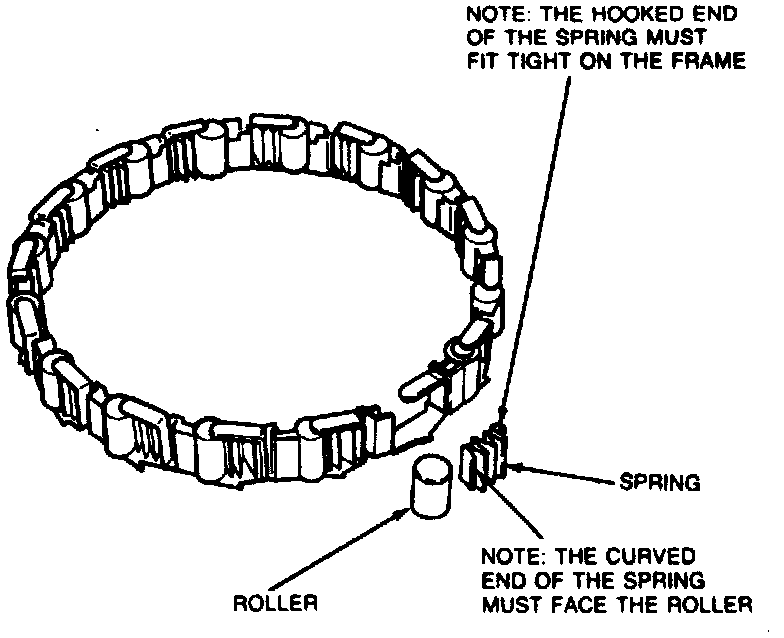

Exploded View Of Planetary One-Way Clutch:

1. Assemble one-way clutch.
2. Install one-way clutch in planetary carrier.
3. Lubricate clutch races and clutch assembly with petroleum jelly.
4. Install center support into one-way clutch by rotating center support counterclockwise.
