Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
1992
>>
Continental V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Diagnostic Mode Switch/Connector
>>
VIP Test Connector
VIP Test Connector

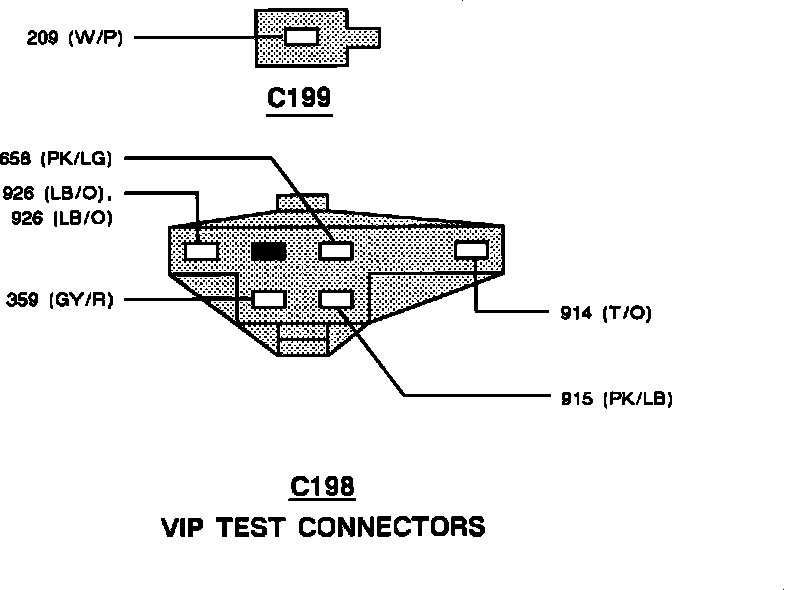

VIP Test Connector Pinout:
