Full Body Views

Component Location:

AIR SPRING SOLENOID
AIR SUSPENSION ELECTRONIC CONTROL MODULE
AIR SUSPENSION SWITCH
ANTI-LOCK BRAKE CONTROL MODULE
DRIVER'S SEAT BELT SWITCH
FUEL FILLER DOOR RELEASE SOLENOID
HARD SHOCK RELAY
HI-LO BEAM PHOTOCELL AMPLIFIER
MIRROR HEATER
POWER MIRROR
POWER MIRROR SWITCH
REAR BRAKE SENSOR
REAR HEIGHT SENSOR
REAR SHOCK ACTUATOR
SEAT CONTROL SWITCH
SEAT MEMORY MODULE
SEAT MOTOR ASSEMBLY
SHOCK ACTUATOR
SOFT SHOCK RELAY
STAR TEST CONNECTOR
TRUNK LID RELEASE SOLENOID

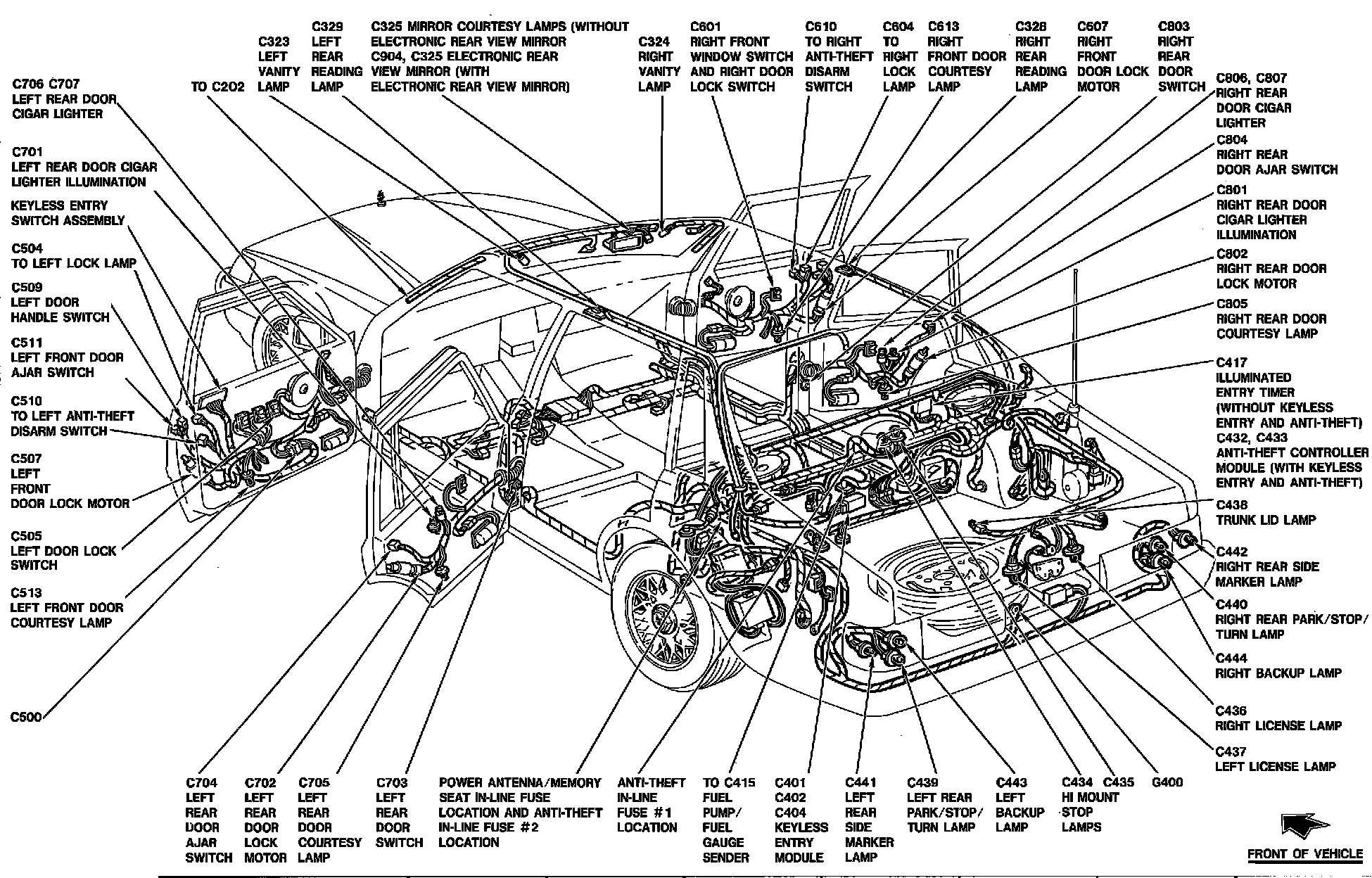

Component Location:

ANTI-THEFT CONTROLLER MODULE
ANTI-THEFT DISARM SWITCH
ANTI-THEFT IN-LINE FUSES
BACKUP LAMP
DOOR AJAR SWITCH
DOOR CIGAR LIGHTER
DOOR CIGAR LIGHTER ILLUMINATION
DOOR COURTESY LAMP
DOOR HANDLE SWITCH
DOOR LOCK MOTOR
DOOR SWITCH
FUEL PUMP/FUEL GAUGE SENDER
HI MOUNT STOP LAMPS
ILLUMINATED ENTRY TIMER
KEYLESS ENTRY MODULE
KEYLESS ENTRY SWITCH ASSEMBLY
LEFT LOCK LAMP
LICENSE LAMP
LOCK LAMP
MEMORY SEAT IN-LINE FUSE
MIRROR COURTESY LAMPS
PARK/STOP/TURN LAMP
POWER ANTENNA
REAR READING LAMP
SIDE MARKER LAMP
TRUNK LID LAMP
VANITY LAMP
WINDOW SWITCH AND DOOR LOCK SWITCH

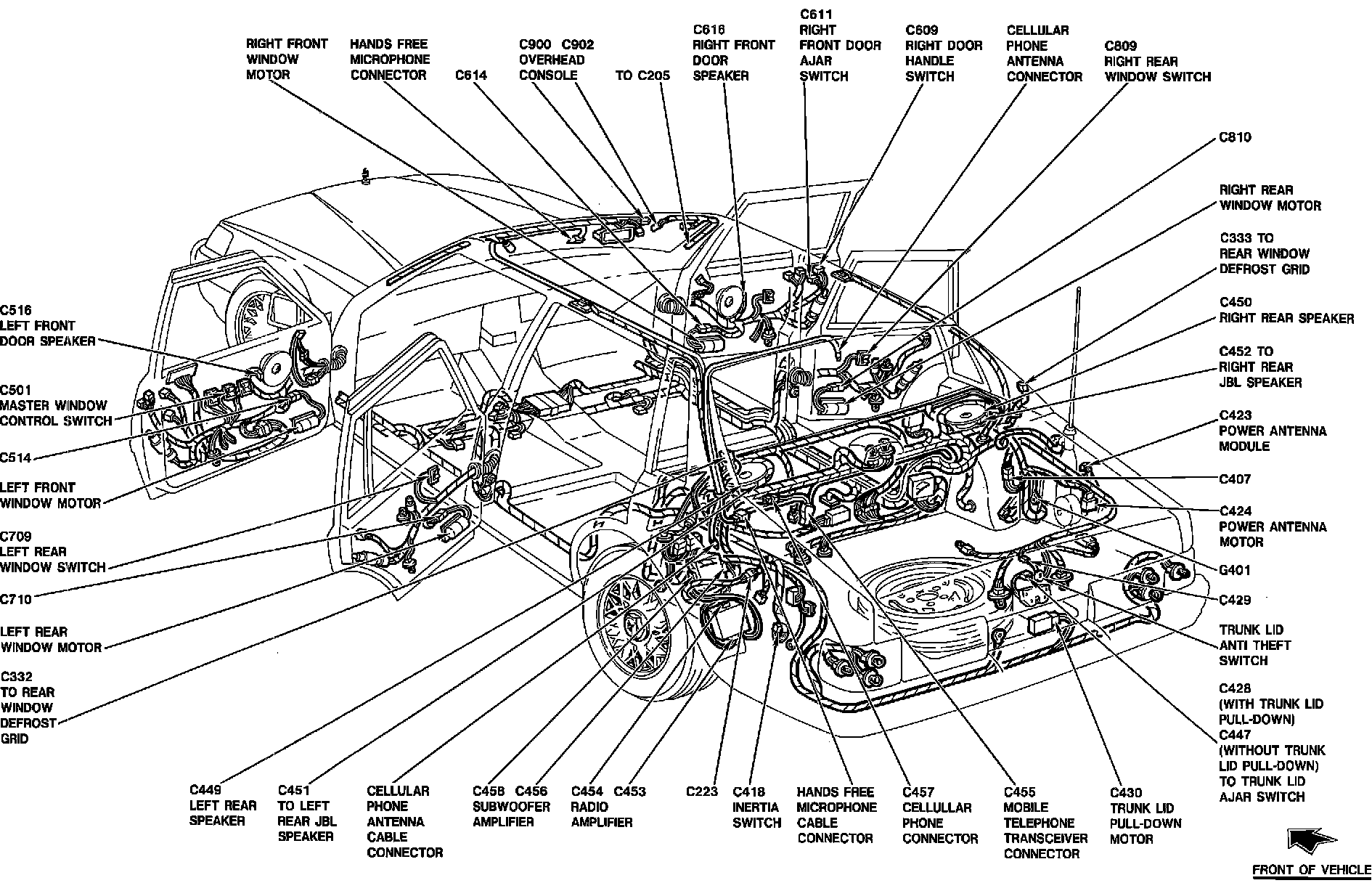

Component Location:

CELLULAR PHONE ANTENNA
CELLULAR PHONE CONNECTOR
DOOR AJAR SWITCH
DOOR HANDLE SWITCH
DOOR SPEAKER
JBL SPEAKER
HANDS FREE MICROPHONE
HANDS FREE MICROPHONE CABLE
INERTIA SWITCH
MASTER WINDOW CONTROL SWITCH
MOBILE TELEPHONE TRANSCEIVER
OVERHEAD CONSOLE
POWER ANTENNA MODULE
POWER ANTENNA MOTOR
RADIO AMPLIFIER
REAR SPEAKER
REAR WINDOW DEFROST GRID
SUBWOOFER AMPLIFIER
TRUNK LID ANTI-THEFT SWITCH
TRUNK LID PULL-DOWN MOTOR
WINDOW MOTOR
WINDOW SWITCH
