Powertrain Management: Locations

Component Location:

AIR CHARGE TEMPERATURE (ACT) SENSOR
AXODE TRANSAXLE
CANISTER PURGE SOLENOID
DISTRIBUTOR
EGR VACUUM REGULATOR (EVR) SOLENOID
ELECTRONIC ENGINE CONTROL (EEC) MODULE
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
ENGINE COOLING FAN MOTOR
FUEL INJECTORS
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IGNITION COIL
INTEGRATED CONTROL MODULE
IDLE AIR BYPASS VALVE
MASS AIR FLOW (MAF) SENSOR
PRESSURE FEEDBACK EGR (PFE) SENSOR
RADIO INTERFERENCE CAPACITOR
SPOUT CHECK CONNECTOR
TFI IGNITION MODULE
THROTTLE POSITION SENSOR
TURBINE SPEED SENSOR
VIP TEST CONNECTOR

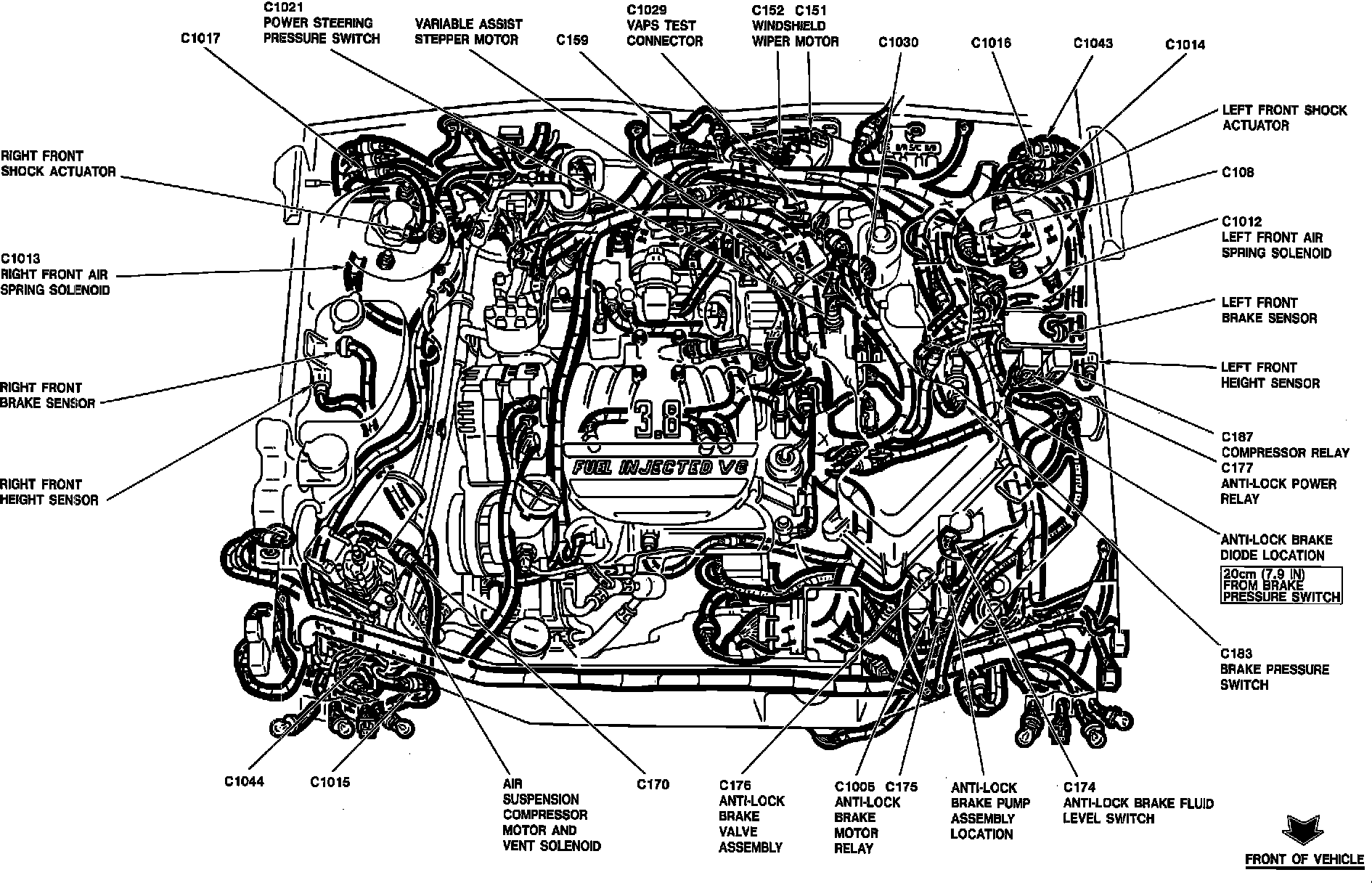

Component Location:

ANTI-LOCK BRAKE DIODE
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK BRAKE MOTOR RELAY
ANTI-LOCK BRAKE PUMP ASSEMBLY
ANTI-LOCK BRAKE VALVE ASSEMBLY
AIR SUSPENSION COMPRESSOR MOTOR
AIR SUSPENSION VENT SOLENOID
BRAKE PRESSURE SWITCH
COMPRESSOR RELAY
FRONT AIR SPRING SOLENOID
FRONT HEIGHT SENSOR
FRONT SHOCK ACTUATOR
POWER STEERING PRESSURE SWITCH
VARIABLE ASSIST STEPPER MOTOR
VAPS TEST CONNECTOR
WINDSHIELD WIPER MOTOR

Component Location:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C COMPRESSOR CLUTCH COIL
AIR BAG SAFING SENSOR
ALTERNATOR OUTPUT CONTROL RELAY
AMBIENT TEMPERATURE SENSOR
BRAKE FLUID LEVEL SWITCH
COLD ENGINE LOCK OUT (CELO) SWITCH
CORNERING LAMP
CRACKED WINDSHIELD SENSE RESISTOR
DAYTIME RUNNING LAMPS (DRL)
ENGINE COMPARTMENT LAMP
FORWARD CRASH SENSOR
FRONT PARK/TURN LAMP
FRONT SIDE MARKER LAMP
FUSE LINKS A, B AND D
FUSE LINK C
HEADLAMP CONNECTOR
HEATED WINDSHIELD
HEATED WINDSHIELD TEST CONNECTOR
HIGH PITCH HORN
INTEGRAL ALTERNATOR REGULATOR (IAR)
LOW PITCH HORN
MANUAL LEVER POSITION SENSOR (MLPS)
OIL LEVEL SENSOR
OIL PRESSURE SWITCH
POWER DISTRIBUTION BOX
SPEED CONTROL SERVO
STARTER RELAY
STARTER MOTOR/SOLENOID
VEHICLE SPEED SENSOR (VSS)
WASHER FLUID LEVEL SWITCH
WASHER PUMP MOTOR
