Lincoln
>>
1992
>>
Continental V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Top Connector
Top Connector

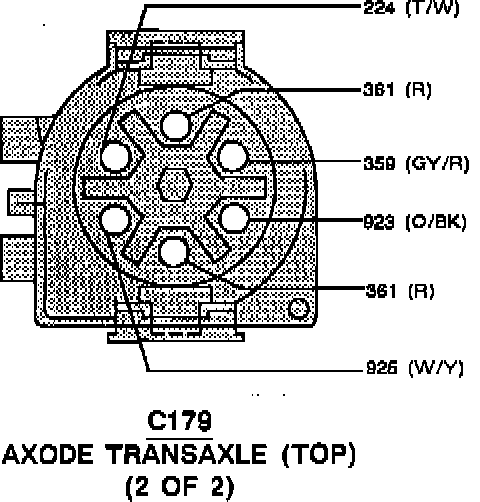

AXODE Transaxle (Top) (2 Of 2):
