Engine Controls

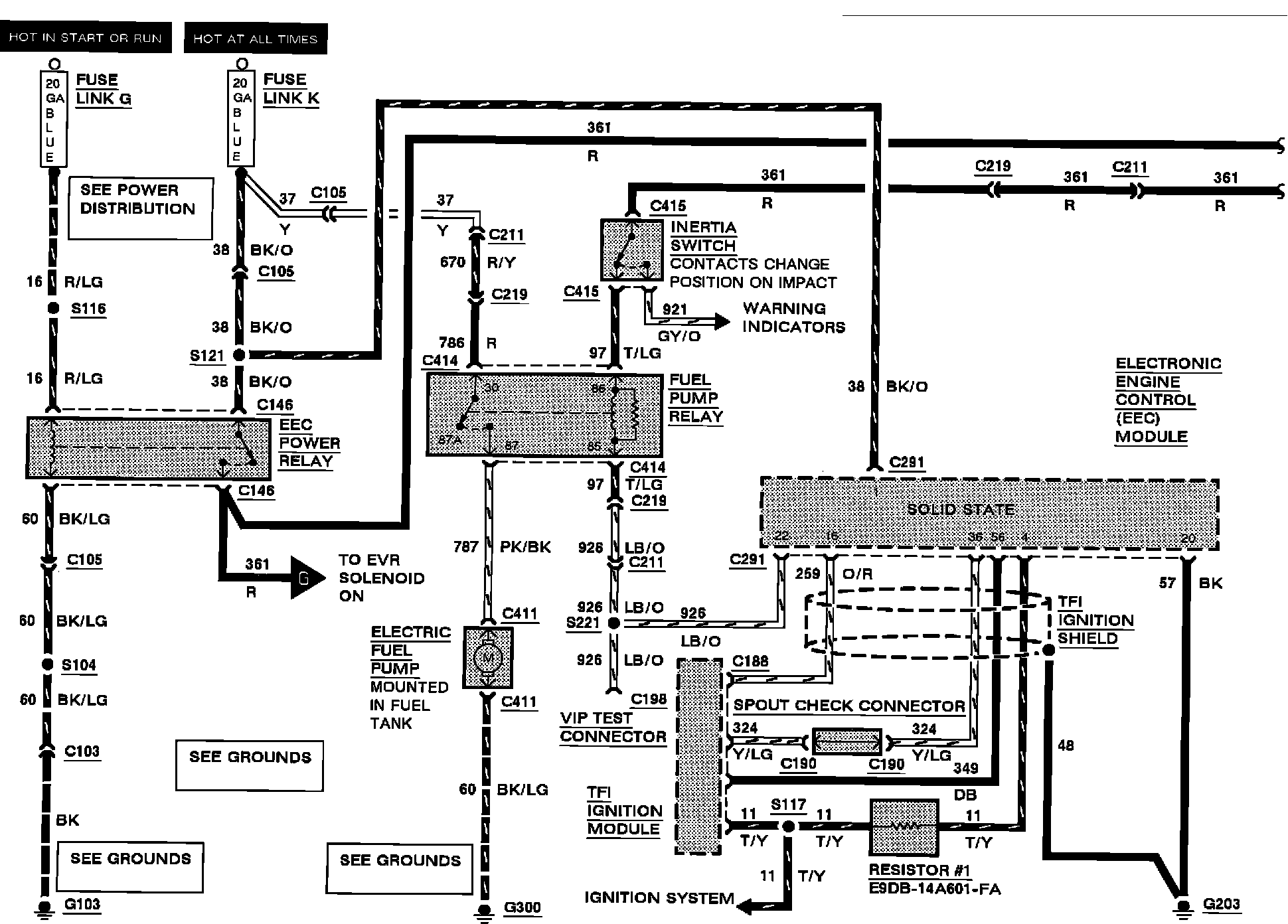

Computerized Engine Control:

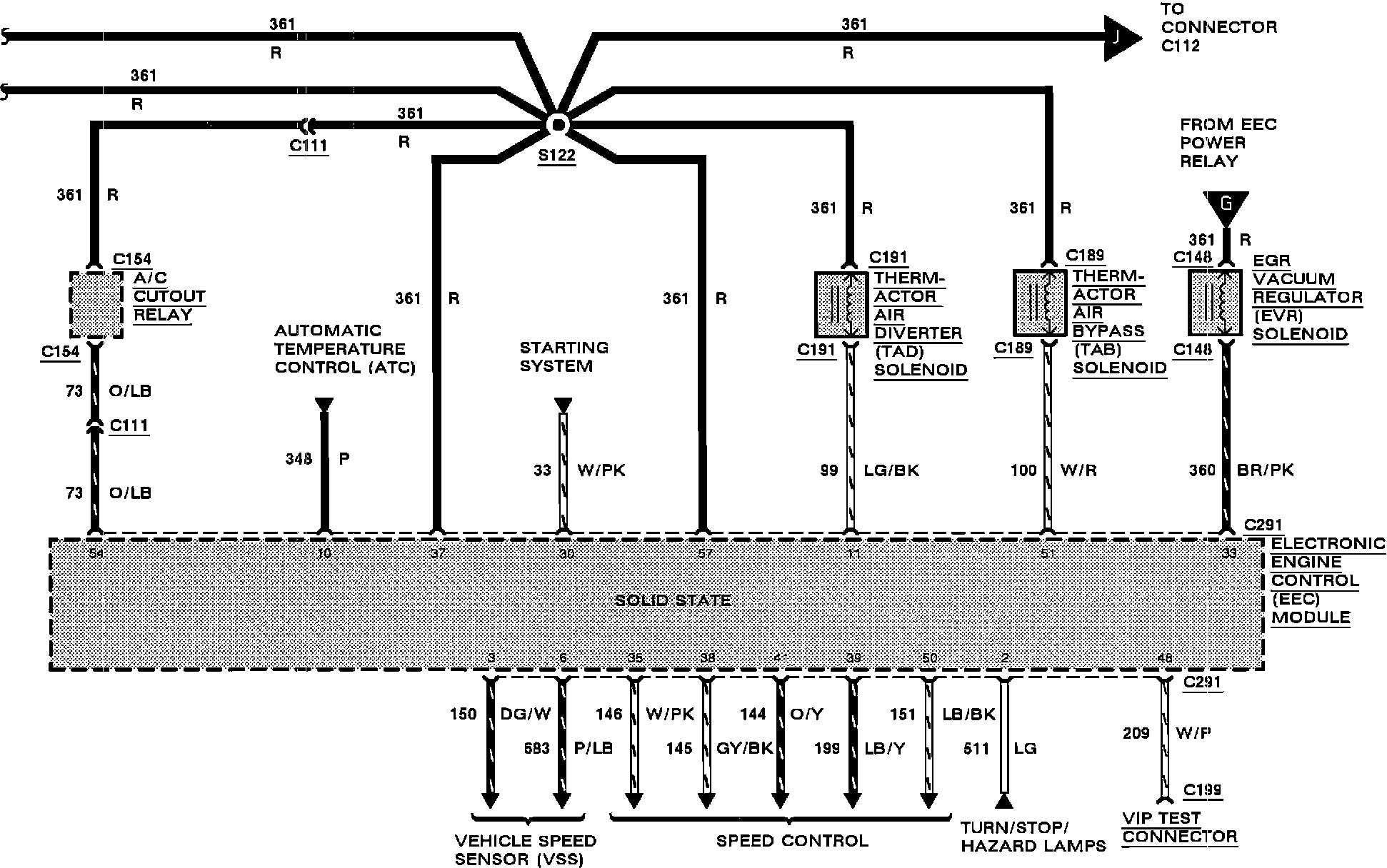

Computerized Engine Control:

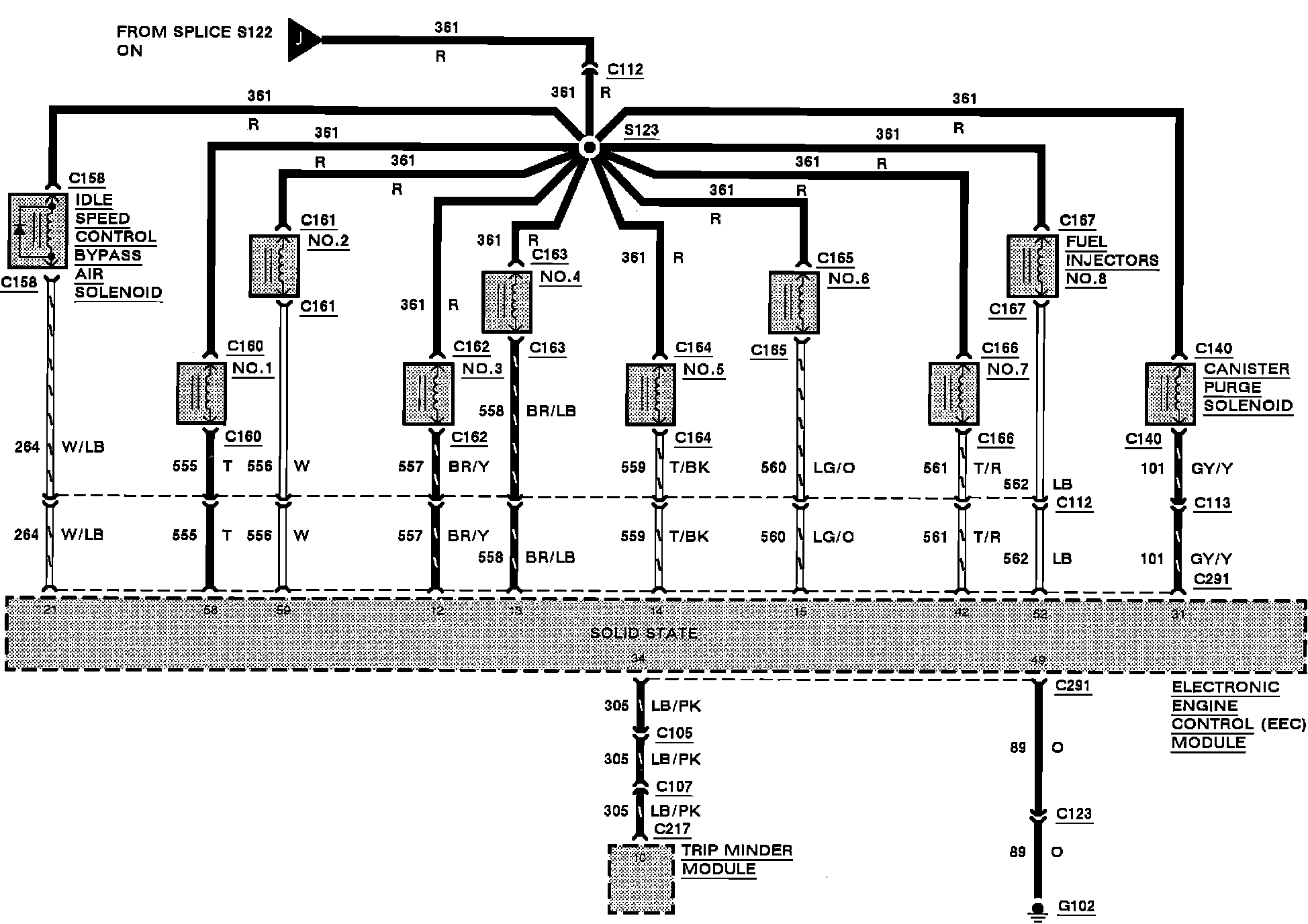

Computerized Engine Control:

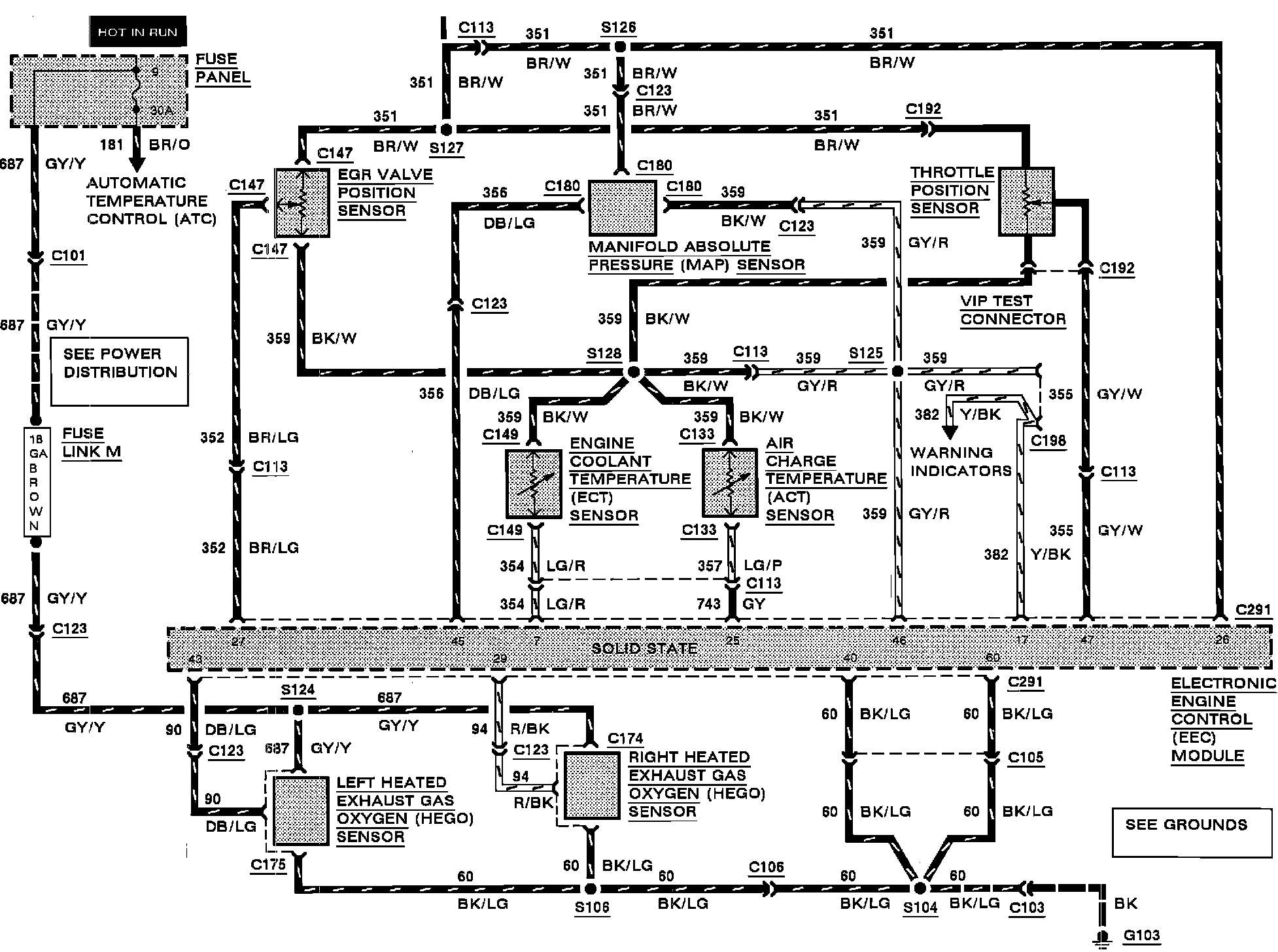

Computerized Engine Control:
