Home >> Lincoln >> 1993 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cooling System >> System Diagram >> Powertrain Control Module (PCM)

Powertrain Control Module (PCM)

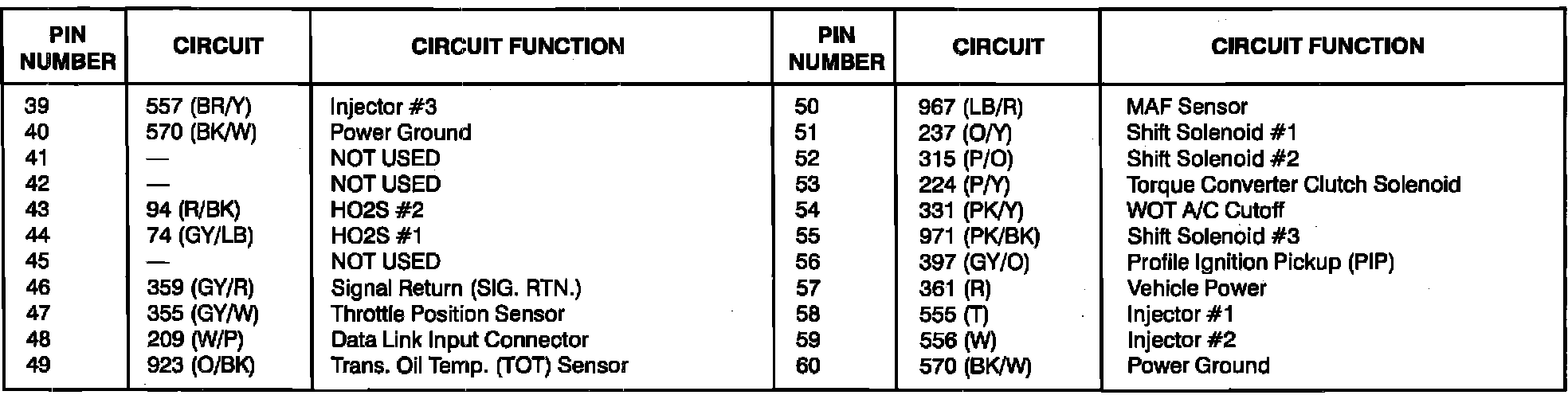

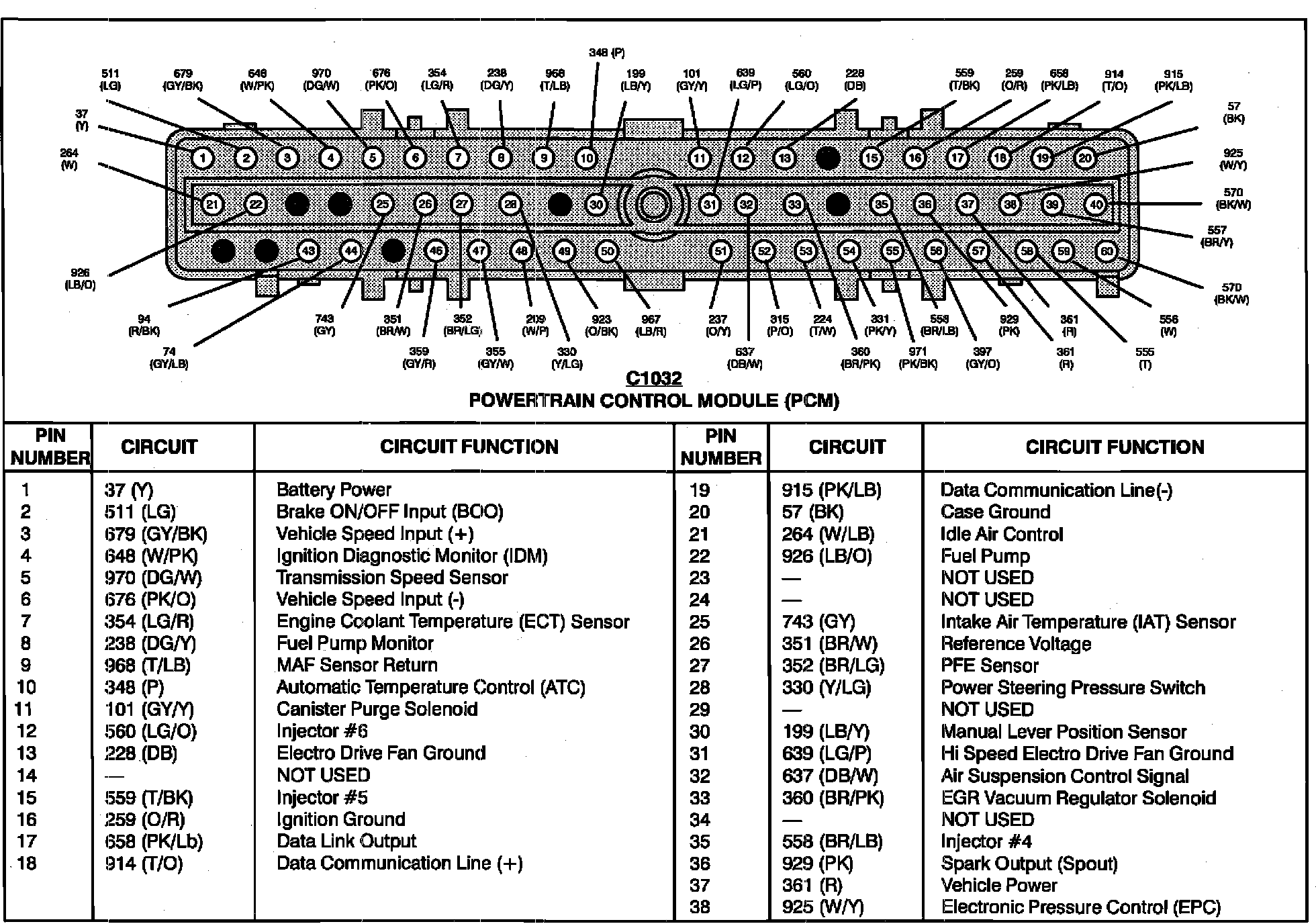

Powertrain Control Module (PCM) C-1032:



Powertrain Control Module (PCM) C-1032:
