Home >> Lincoln >> 1993 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry >> Keyless Entry Module

Keyless Entry Module

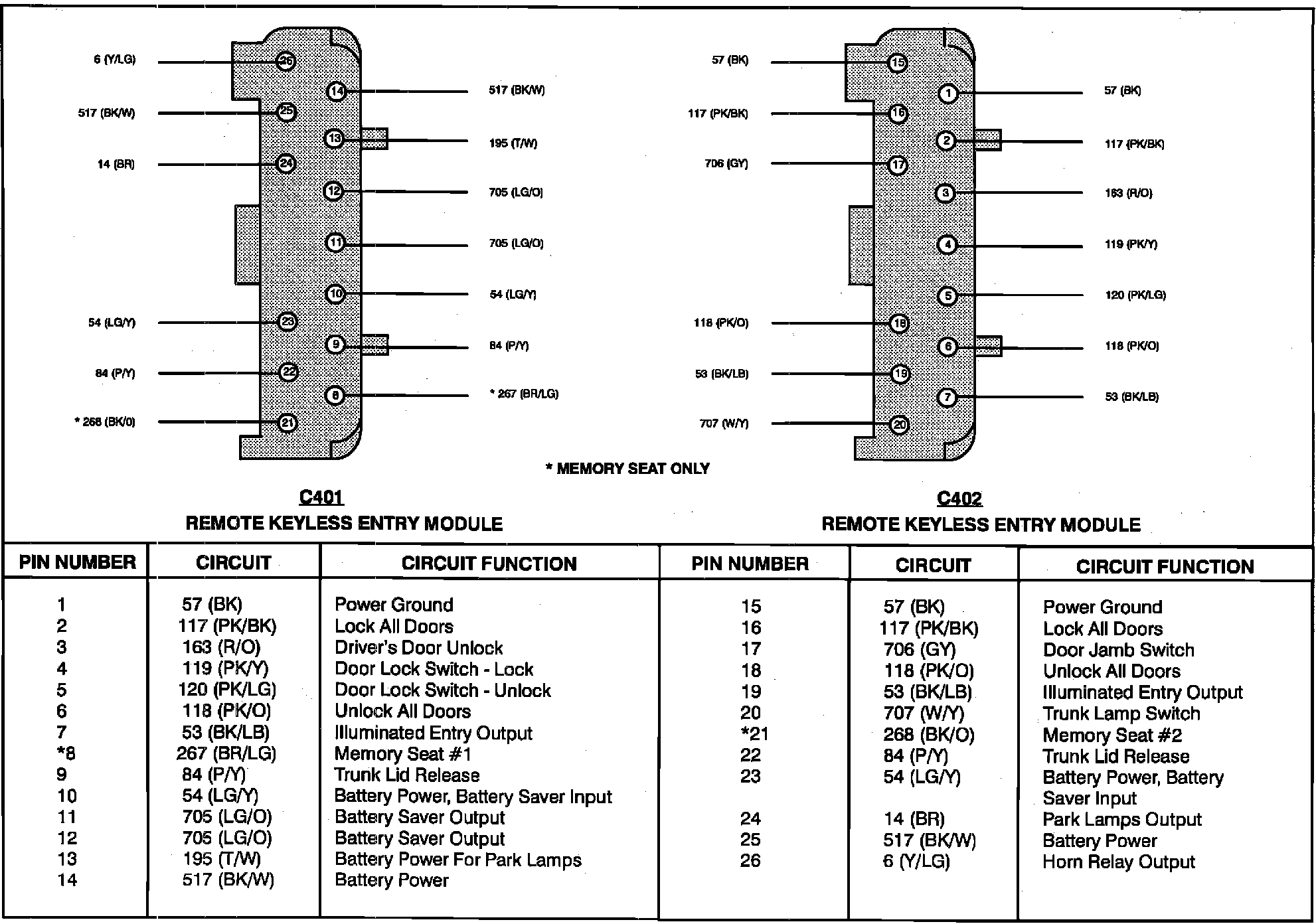

Remote Keyless Entry Module:

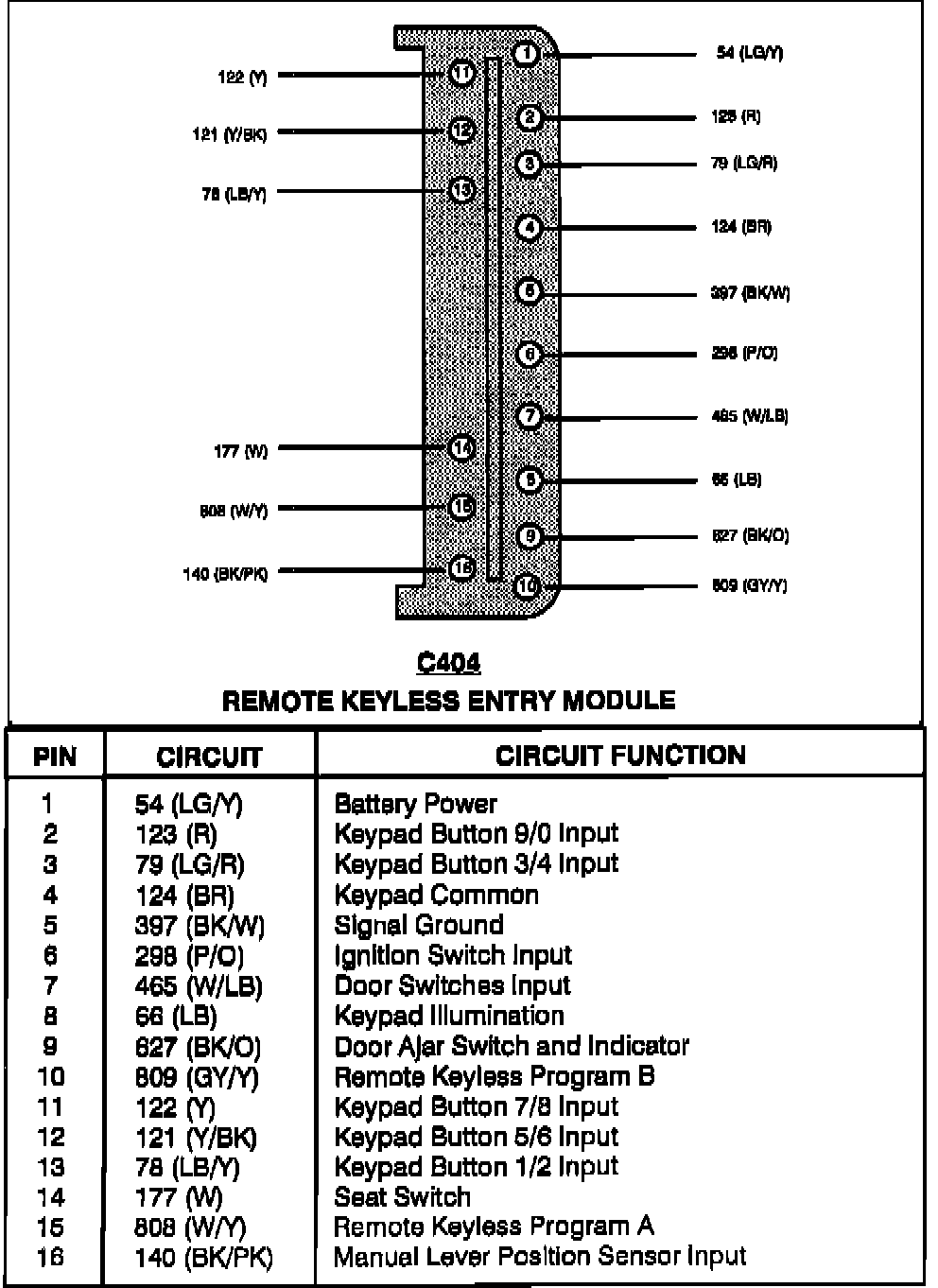

Remote Keyless Entry Module:
