Monitors, Trips, Drive Cycles and Readiness Codes

The Rotunda SUPER STAR II tester No. 007-00041-A or equivalent, must be used to properly test and diagnose this system. Follow tool manufacturer's instructions for installation and operation of the tool.

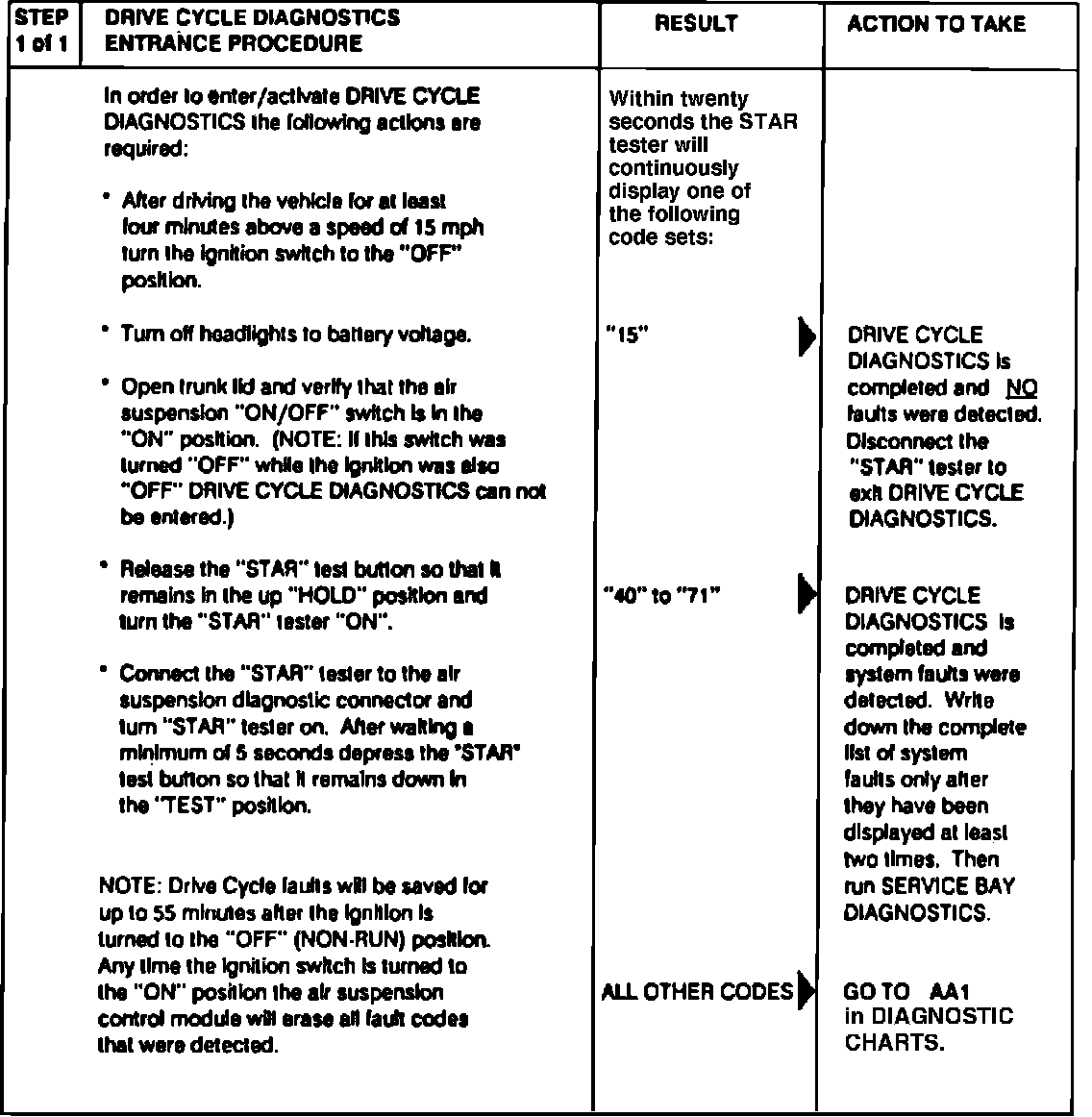

Fig. 2 Drive Cycle Diagnostic Procedure:

The drive cycle diagnostics will illuminate the ``Ride Control'' warning lamp in the message center when a trouble code is detected while driving the vehicle. Up to 32 trouble codes will remain stored in memory for one hour after ignition switch is turned Off. The air suspension switch in luggage compartment must remain On. If the vehicle has not been driven in over an hour or the ignition switch has been turned to Run and the air suspension switch has been turned Off, vehicle must be driven to duplicate faults, refer to Fig. 2.
