Rapid Continuous Flashing of Air Bag Indicator
RAPID CONTINUOUS FLASHING OF AIR BAG INDICATORAll Primary Crash Sensors Disconnected
Normal Operation
Each primary crash sensor has three wires. Two of the wires are used for air bag deployment and monitoring the sensor's connection to the air bag diagnostic monitor (refer to Diagnostic Trouble Codes 41 and 42 diagnosis). The other wire is used for monitoring the mounting (ground) of the sensor to sheet metal (refer to Diagnostic Trouble Codes 44 and 45 diagnosis). If diagnosis reveals that BOTH primary sensors are not connected AND the primary sensors are not properly grounded, the air bag diagnostic monitor will flash the AIR BAG indicator continuously at a fast rate.
Possible Causes
Both primary crash sensors disconnected from wiring harness or main wiring harness not connected with engine compartment wiring harness.

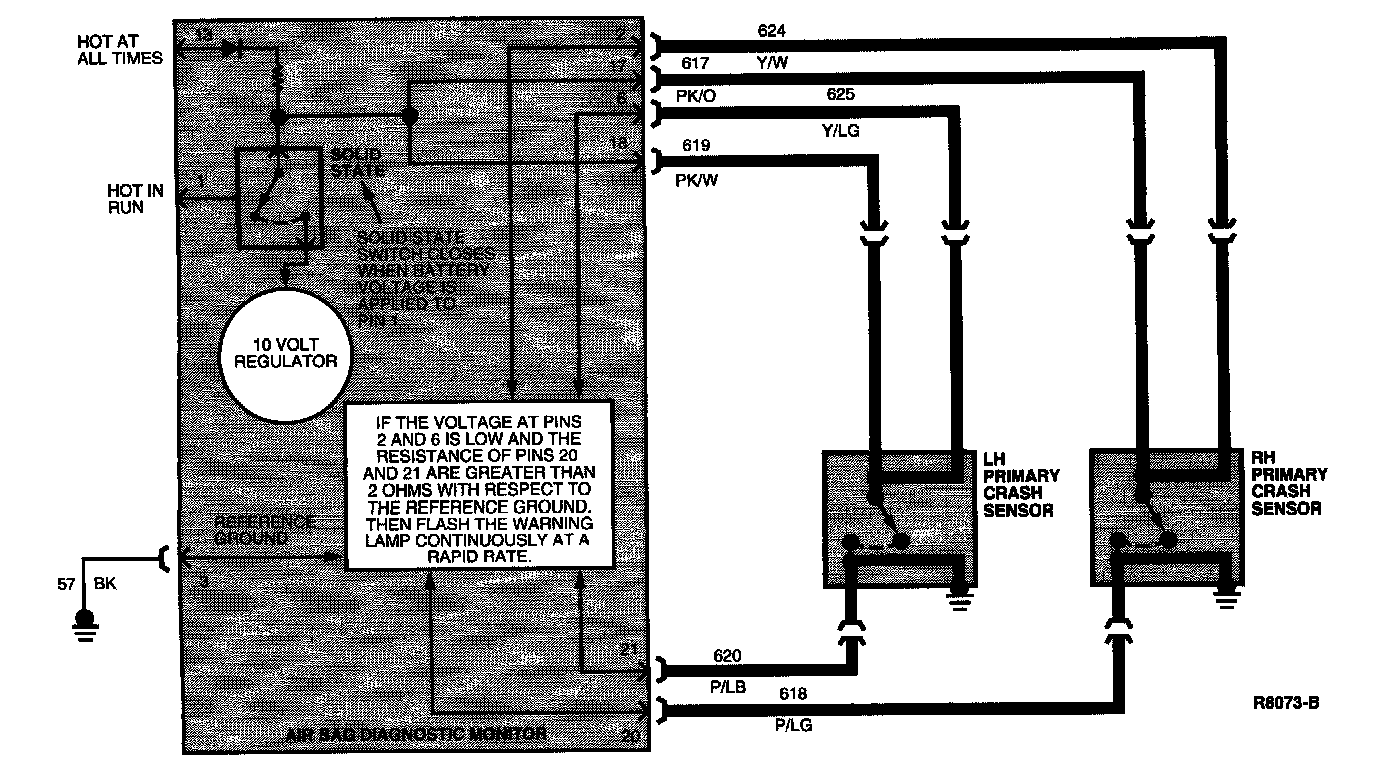

Electrical Schematic - Rapid Continuous Flashing:
