Front Outboard Seat Belt
Tools RequiredSeat Belt Bolt Bit T77L-2100-A
NOTE: Seat Belt Bolt Bit T77L-2100-A should be used for safety belt bolt removal and installation on front outboard belts. A metric socket is necessary to remove or install inboard buckles and center passenger belt anchors.

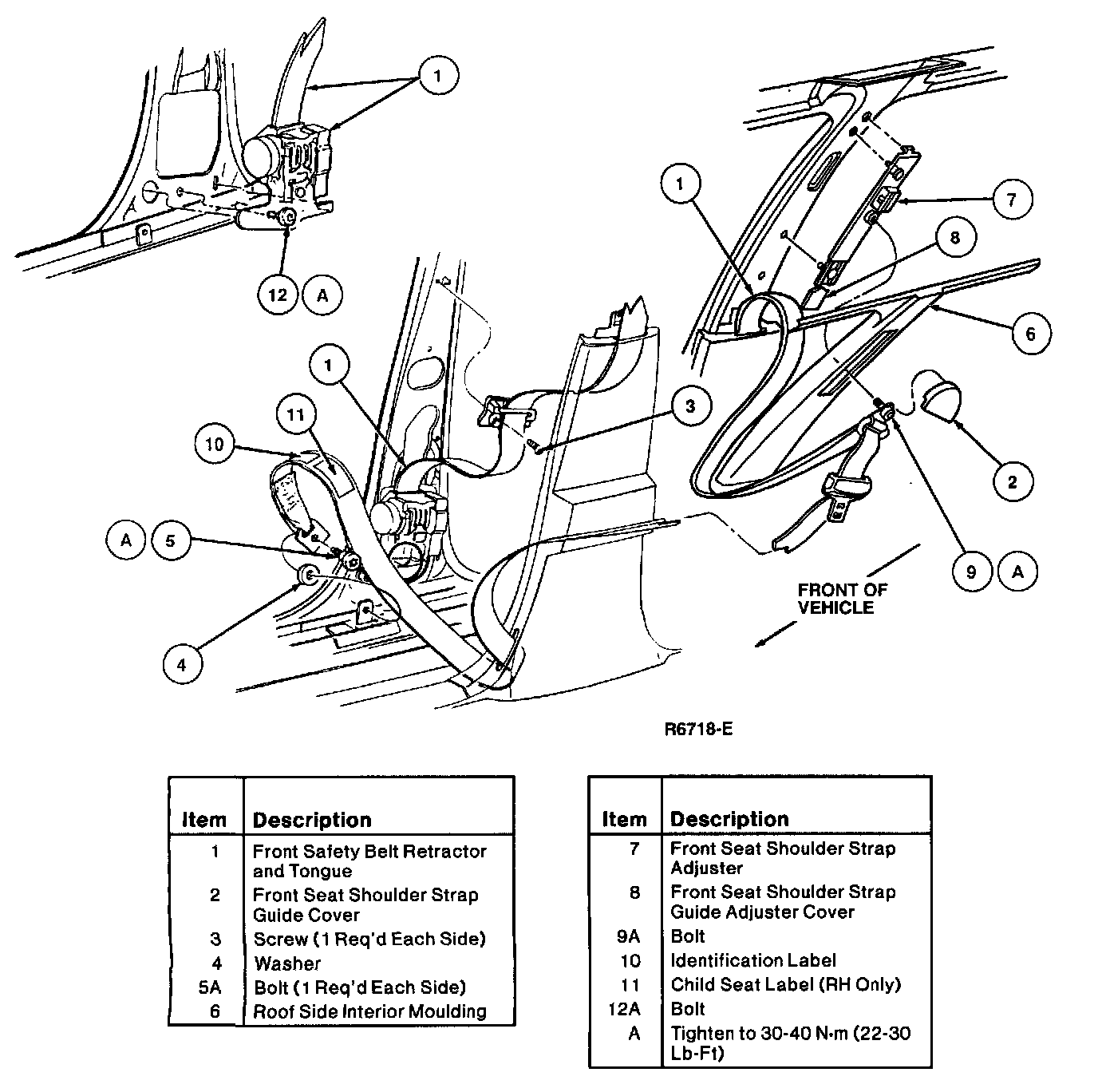

REMOVAL
1. Remove D-ring cover.
2. Insert bolt bit and remove belt bolts.
3. Remove B-pillar upper trim panel.
4. Remove scuff plate/center pillar trim panel retaining screws and panel.
5. Remove safety belt through slot in upper center trim panel.
6. Remove safety belt anchor plate-to-sill bolt and rubber washer.
7. Remove front safety belt retractor and tongue bolt.
8. Remove web front safety belt guide retaining screw and slide front safety belt guide rearward to remove from B-pillar.
9. Remove outboard safety belt assembly from vehicle.
INSTALLATION
1. To install, reverse Removal procedure. Be sure to position belts properly.
2. Tighten all retaining bolts to 30-40 Nm (22-30 ft lbs).
3. Cycle system several times to ensure proper operation of front safety belt retractor and tongue. Make sure the belt is not twisted.
