Power Window Switch: Testing and Inspection

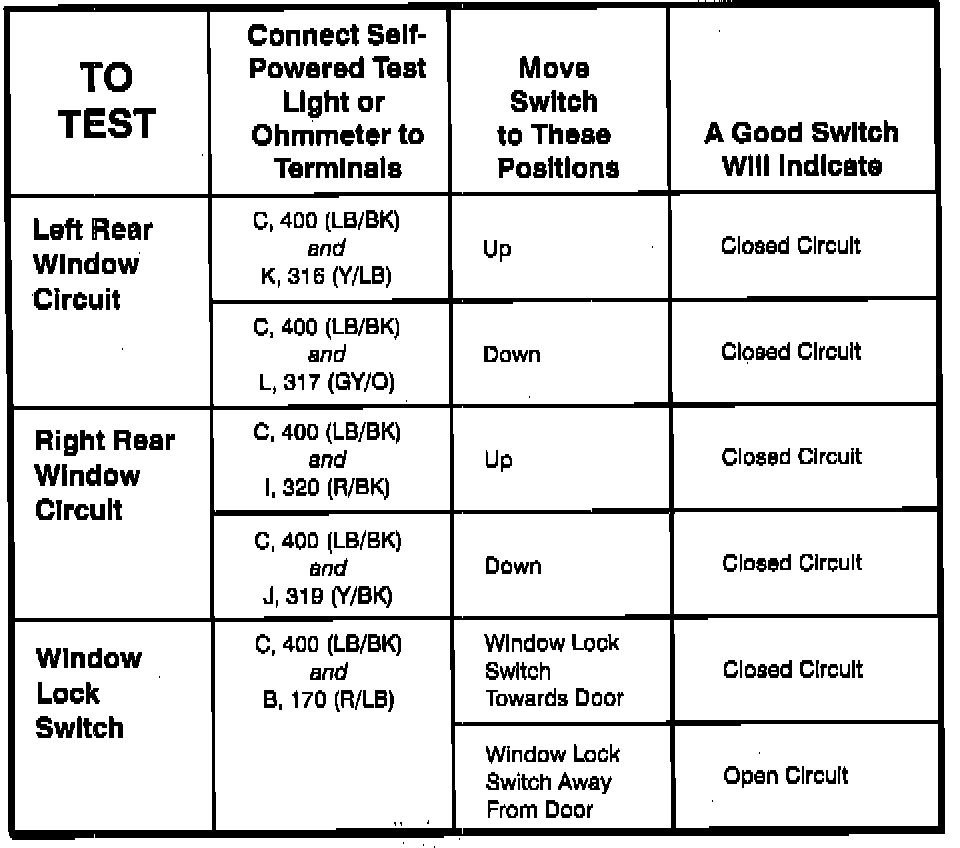

Component Testing Procedure:




Component Testing Procedure:

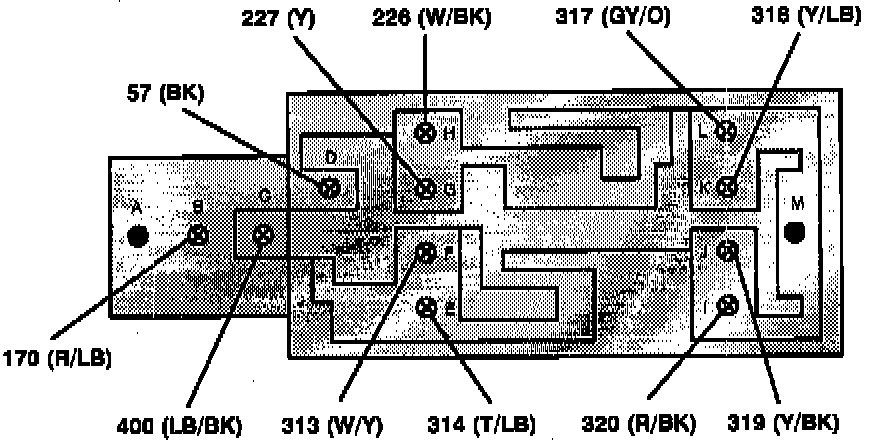

Terminal ID On Switch:

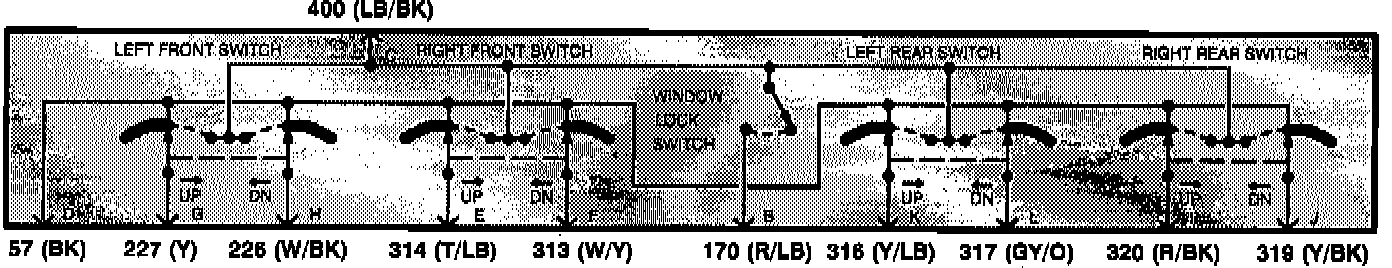

Schematic:
