1-2 Accumulator

REMOVAL

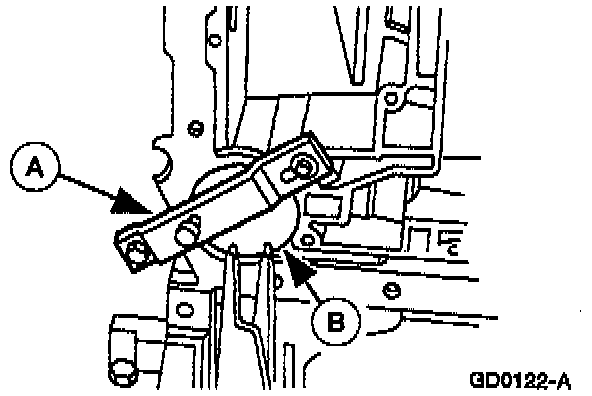

1. Use the (A) Servo Piston Remover Replacer to compress the 1-2 accumulator cover and remove the (B) accumulator piston retaining ring.

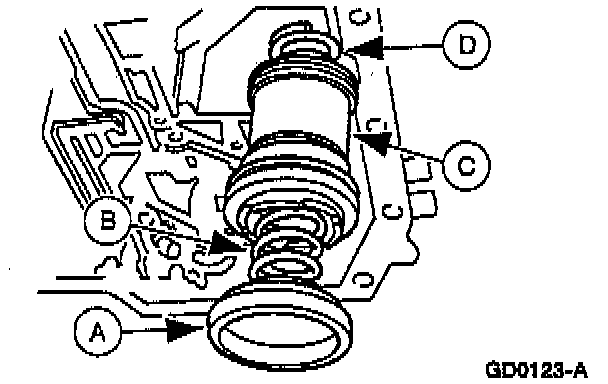

2. Remove the (A) 1-2 accumulator cover, the (B) 1-2 accumulator outer spring, the (C) accumulator piston and the (D) 1-2 accumulator inner spring (model dependent).

NOTE:Note the location of the 1-2 accumulator outer spring for reference during assembly. Some models may use two 1-2 accumulator outer springs. The accumulator piston may also vary with application.





INSTALLATION

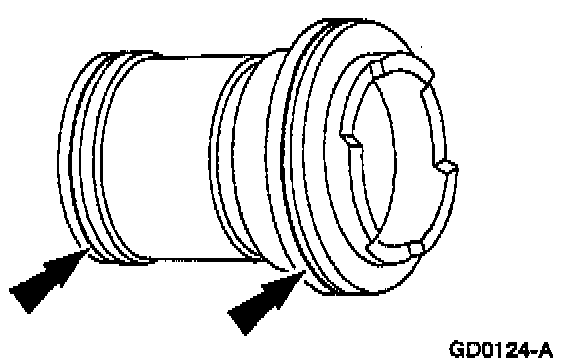

1. Install the accumulator piston seal and lower accumulator seal onto the 1-2 accumulator piston.

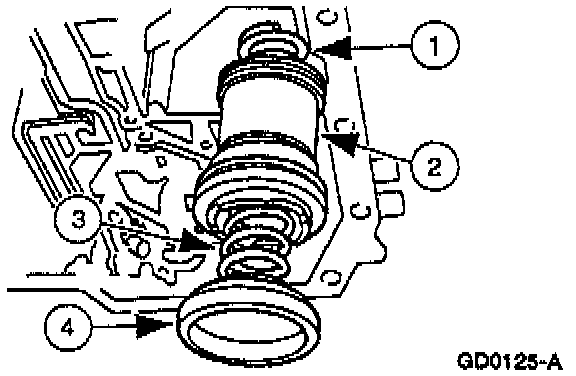

2. Install the 1-2 accumulator assembly.
(1) Install the 1-2 accumulator inner spring (model dependent).
(2) Install the accumulator piston.
(3) Install the 1-2 accumulator outer spring.
(4) Install the cover and seal assembly.





3. Use the (A) Servo Piston Remover Replacer to install the (B) accumulator piston retaining ring.
